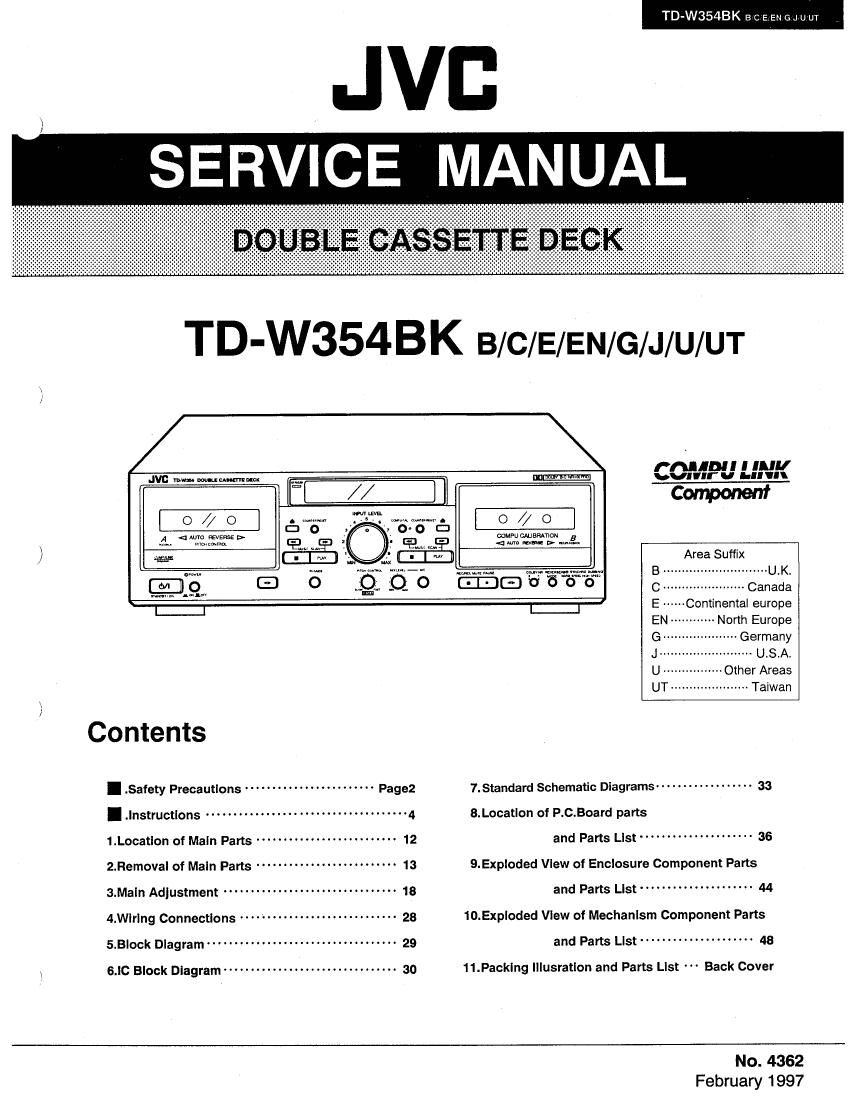

TD-W354BK a C E EN G J u UT

JVB

SERVICE MANUAL

TD-W354BK B/C/E/EN/G/J/U/UT

PM!!!" I luv
vulnr v I." Il

Component
o//o . o//o

< AUTO WEN-ii > ' e' GONNA wwuan 5
_\ mam» . m...
/ Area Suffix
w... E) o. O 50 3.... r"? 6':me B ............................ UK,
M -er w n GEE) o o o C ...................... Canada
I I Continental europe
-~ North Europe
- Other Areas
-------- Taiwan
\
I
I .Safety Precautions -------------------- Pagez 7. Standard Schematic Diagrams ----------------- 33
I 'msrucnons ..................................... 4 3_L°cafl°n of P.c.Board parts
1.L°Catl°n of Mal" parts .................. . ....... 12 and Parts Llst ..................... as
2_Removal of Main Parts -------------------------- 13 9.Exploded View of Enclosure Component Parts
3.Maln Adlustment ................................ 18 and Pans Lst ..................... 44
4.wmng Connections ----------------------------- 28 10.Exploded View of Mechanism Component Pans
5.B|°ck Diagram ................................... 29 and Parts Llst ..................... 48
2 MC Block Dlagram ................................ 30 11.Packlng lllusratlon and Parts List Back Cover
No. 4362

February 1997

Page 2

TD-W354BK BIC/EEWG/J/U/UT

I Safety Precautios

1. The design this product contains special hardware and many circuits and components specially for safety purposes. For continued
protection. no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts
must be identical to those used in the original circuits. Service should be performed by qualified personnel only,

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made.
Any design alterations or additions will void the manufacture's warranty and will further relieve the manufacture of responsibility for
personal injury or property damage resulting therefrom.

3, Many electrical and mechanical parts in the product have special safety ~ related characteristics. These characteristics are often
not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement
components rated for higher voltage. wattage. etc, Replacement parts which have these special safety characteristics are identified
in the parts list of seNice manual. Electrical components having such features are identified by shading and( AK )on the schematic
diagram and by ( A ) on the parts list in the service manual. The use of a substitute replacement which does not have the same
safety characteristics as the recommended replacement part shown in the pans list of service manual may create shock. fire. or
other hazards.

4. The leads in the products are routed and dressed with ties. clamps . tubings, barriers and the like to be separated from live parts.
high temperature parts. moving parts and or sharp edges for the prevention of electric shock and fire hazard. When service is
required. the original lead routing and dress should be observed. and it should be confirmed that they have been returned to normal.
after reassembling.

5. Leakage current check (Electrical shock hazard testing)

After re - assembling the product. always perform an isolation check on the exposed metal parts of the product (antenna
terminals. knobs. metal cabinet. screw heads. headphone lack, control shafts. etc.) to be sure the product is safe to operate without
danger of electrical shock. Do not use a line isolation transformer during this check. .

- Plug the AC line cord directly into the AC outlet. using aLeakage current tester". measure the leakage current from each exposed

metal part of the cabinet. particulary any exposed metal part having a return path to the chassis, to a known good earth ground.

Any leakage current must not exposeed 0.5mA AC(r.m.s.)

AC VOLTMETER
-Alternatecheckmethod EB (HaVirQWOOOth/Volt.
or more sensitivity.)
Plug the AC line cord directly into the AC outlet. Use an AC 0 o
____i
0.15 uF AC TYPE

following manner. Connect a 1.500 ohms 10W resistor paralleled by .

voltmeter having 1.000 ohms per volt or more sensitivity in the

a 0.15 [1 F AC type capacitor between an exposed metal part and Place 5 probe
on each exposed
a known good earth ground. Measure the AC voltage across the 1500 n 10W metal part.

resustor With the AC voltmeter. Move the resistor connection to each Good earth ground

exposed metal part. particularly any exposed metal part having a return path to the chassis. and measure the AC voltage across
the resistor. Now. reverse the plug in the AC outlet and repeat each measurement. Any voltage measured must not exceed 0,75V
AC(r.m.s.).This corresponds to 0.5mA AC(r.m.s.).

0 Warning

t. This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintainteined.
3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5. If mains voltage selector is provided. check setting for local voltage.
