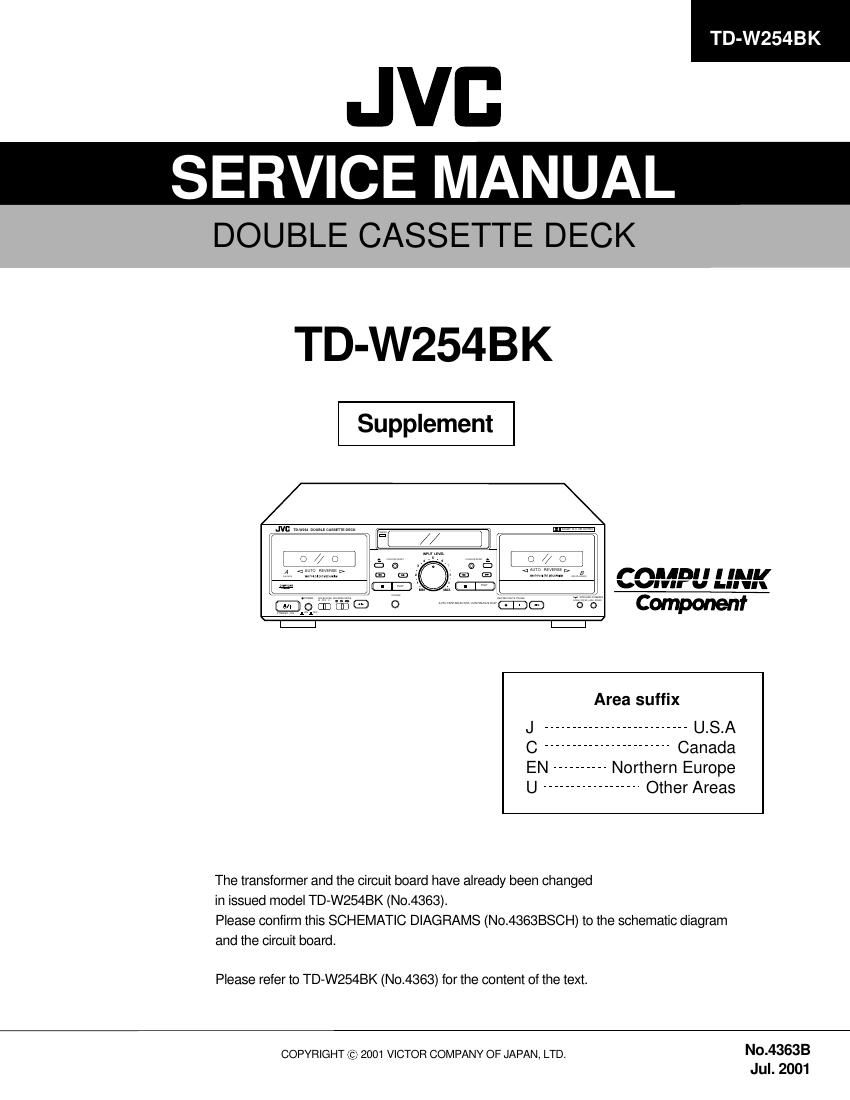

TD-W254BK
JVB
SERVICE MANUAL
DOUBLE CASSETTE DECK
TD-W254BK
Supplement
fnllbll I ll"!
_ t w
-_'é.ntfu3@ o may "do Component
l-l [-1
Area suffix
J -------------------------- USA
C """""""" Canada
EN -- -- Northern Europe
U --------------- Other Areas
The transformer and the circuit board have already been changed
in issued model TD-W254BK (No.4363).
Please confirm this SCHEMATIC DIAGRAMS (No.4363BSCH) to the schematic diagram
and the circuit board.
Please refer to TD-W254BK (No.4363) for the content of the text.
COPYRIGHT (c) 2001 VICTOR COMPANY OF JAPAN, LTD. N0-4363B
Jul. 2001
