Jvc SXA 103 WD Service Manual

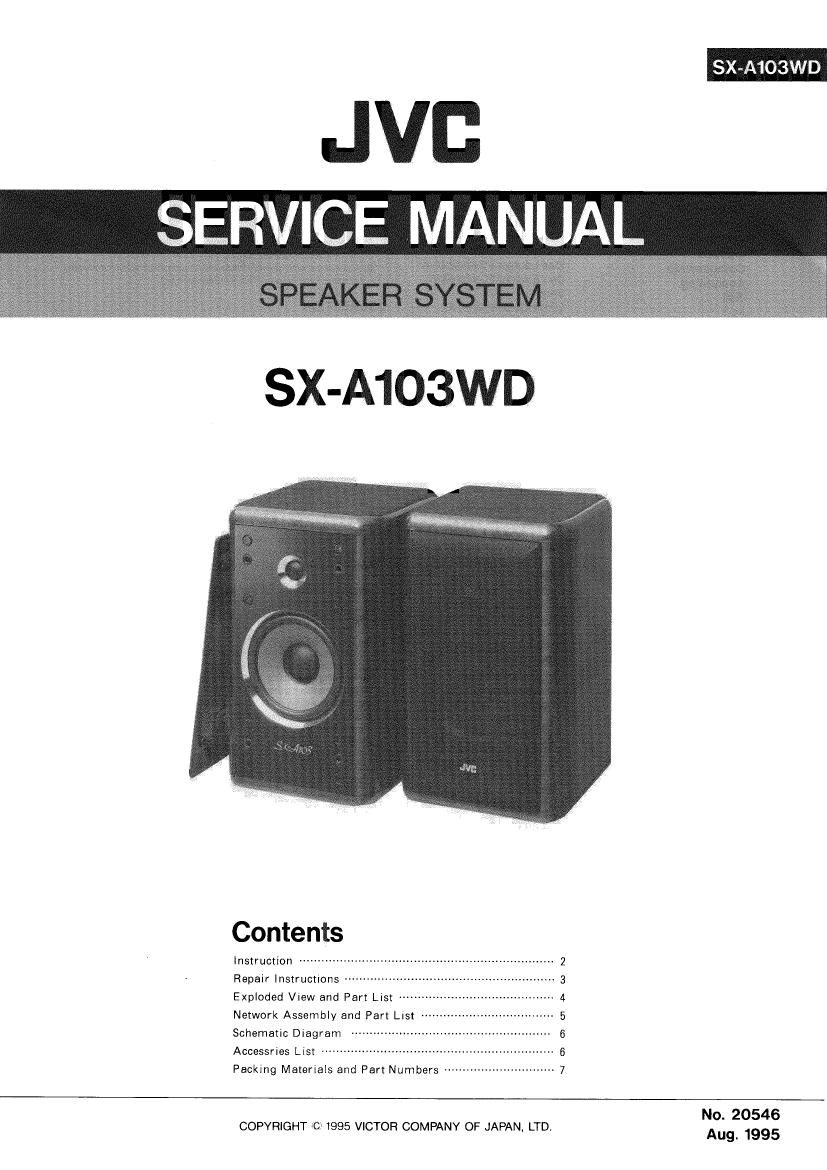

Page 1

SX-AiOSWD

.JVD
SERVICE MANUAL

SX-A103WD

Contents

instruction .................................................................... 2

Repair Instructions ---------------
Exploded View and Part List
Network Assembly and Part List -

Schematic Diagram

mmmbm

Accessriss List ......
Packing Materials and Part Numbers .............................. 7

No. 20546
i \
COPVRIGHT c 1995 VICTOR COMPANY OF JAPAN, LTD, Aug. 1995

Page 2

sx-A103wo

Instruction

Connection
Anscntuc
Aanelultlng
Conexlén
ngcio
Colegarnento
Anslutnlng
tfiifi

Jo,

Black
Schwarz
Noir
Zwart
Negro
Preto
Nero
Svart

.,.I

2 (M20546)

Fit the speaker cord into
the groove, then turn the
knob clockwise to fasten
the cord.

Das Lautsprecherkabel in
den Einschnitt einstellen,
dann den Knopf Im
Uhrzeigersihn drehen,
um das Kabel zu
befestigen.

Ajuster Ie cordon de
haut-parleur dans la
cannelure. puis tourner Ie
bouton dans le sens des
aiguilles dune montre
pour fixer le cordon.

Leid het luidsprekersnoer
in de great an draai
vervolgens de knop naar
rechts om hat snoer vast
te zetten.

Aiustar el cable del
altavoz en la ranura.
luego girar el baton en el
sengdo: do be agufas del

were suietar el

00% a o cabo de

alti is na rantwra e
defig e o botfio no
senti'do dos ponteircs do
relbgio para apeitar o
cabo

Aggitistare il cave

dell aitoparlante nella
scanalaxma poi girare il
pulsante neI senso orarlo
per fissare It cavo.

Skjut In hogtalarkabeln i
speret och vrid knioppen
medurs for att taste
kabeln.

ilfi 1% E 2% g *5 hi A la I79 2
if. fltfifirfiiflliflfifié

.,Ll dam... VII Jstl

.lsler-Julfiifcyyall
unionism

' The speakers have been demagnetized to prevent uneven colors on
color television screens. However. colors on the television screen may
become uneven in some system configurations. Therefore, take the
following precautions when installing speakers
1. If you combine a television set with speakers. turn the main power
switch of the television set off before Installing speakers. When the
main wwar switch' Is turned off it should be turned on again after at
least Cb minutes.

2. If there is a non-demagnetized speaker system other than this JVC
system near a television set, it may cause uneven colors.

3. If colors become uneven due to some types of televisions. move the
speaker system away from the television set.

cormscfion

- Connect the LEI-I' speaker terminals of the amplifier to the LEFI
terminals of the speaker and RIGHT to RIGHT using the attached
speaker cords as shown In the figure making sure polarity' Is correct: (+)
to (+) and (- )tc(- ) Connectthe black speaker wires to the ( -)terminals.

0 Turn off powerto the whole system before connecting the speakers to the
amplifier.

- The nominal impedance of the SX-A103WD is 6 ohms. Connect them
to an amplifier with the load impedance of 6 ohms speaker.

- The maximum power handling capacity ofthe SX-At oawo is 100 watts.
Excessive input will result in abnormal noise and possible damage. 70%
of the maximum amplifier output is normally available when the volume
control is set to its center position.

In cases where the signals described below are applied to the speakers,

even if the signals are below the maximum allowable input, they may

cause an overload and burn the wiring of the speakers. Be sure to lower

the amplifier volume beforehand.

1) Noise during FM tuning.

2) High level signals containing high frequency components produced
by a tape deck' In the fast forward mode.

3) Clidt noise produced when turning power of other components on
and oil.

4) click noise produced when connecting or disconnecting cards with
the power on.

5) Clck noise produced when the cartridge is replaced with the power
0ft:-

6) (Dick noise produced when operating amplifier switches

7) continuous high frequency osdliation or high pitch electronically
prodwed musical instrument sound

a) Howllhg when using a micr hones.

- When reproduocing digital sign from a CD digital disc, etc.. be careful
that the ma)dmum peak value does not exceed the power handling
capacly of the speaker because of the extremely fast rise time of the
signds from zero (there Is no iriltial noise) and the wider dynamic range
of 90 dB.

SPECIFICATIONS
Type : 2-way 2-speaker Bass reflex type
: Magnetically-shielded type

Speakers:
Woofer : 11.5 cm (4-9/16') cone x 1
Tweeter : 1.9 cm (3/4') dome x 1

Power Handling Capacity : 100 watts

impedance : 6 ohms

Frequence Range : 60 Hz - 80 kHz

Sound Pressure Level : B7 dB/w-m

Dimensions (W x H x D) : 174 x 281 x 218 mm
(SJ/8' x 11-1/8" x 86/3")
Mass : 4.5 kg (10.0 lbs)

Accessories : Speaker cord

Design and specifications subject to change without notice.
