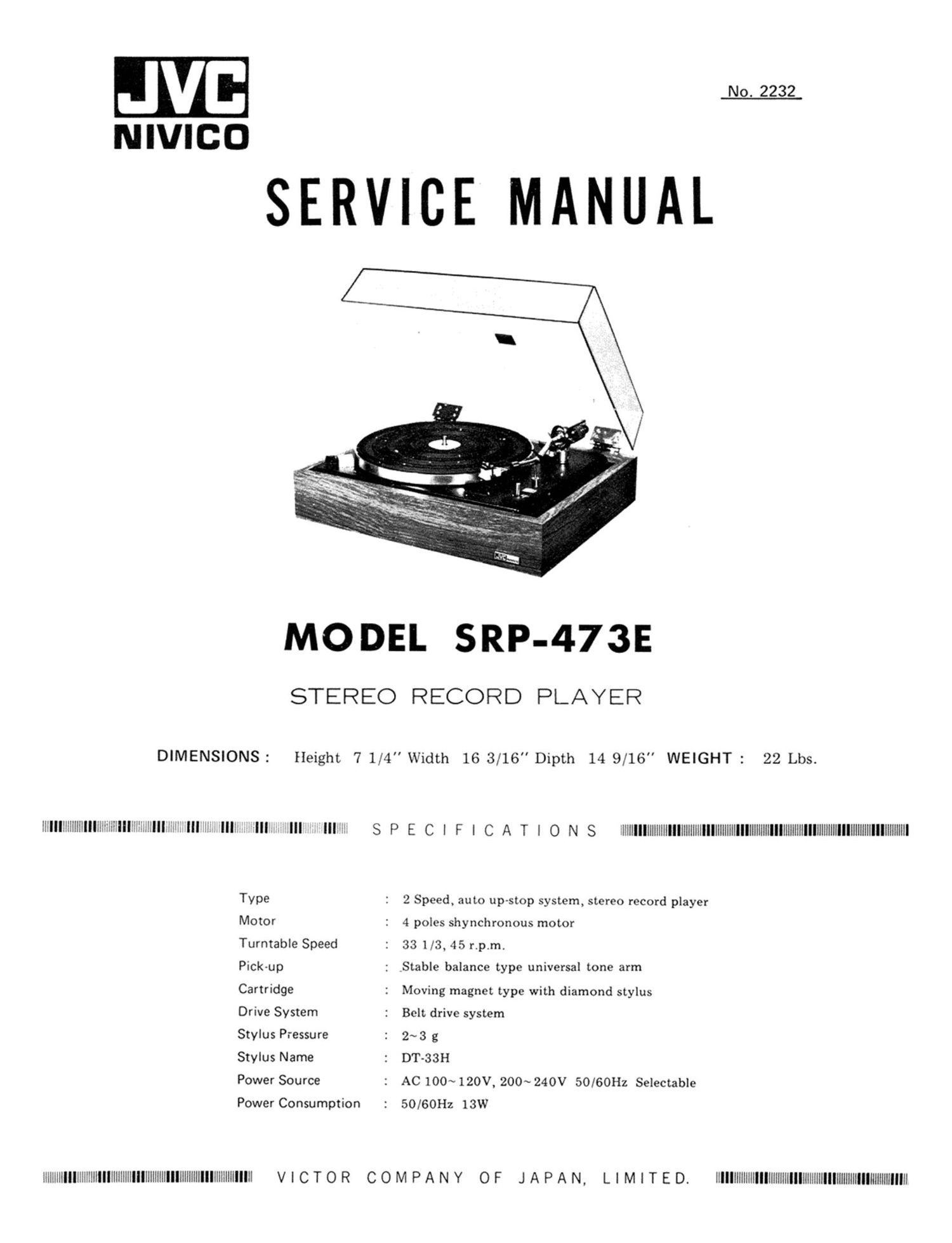

Jvc SRP 437 E Service Manual

Page 2

MAIN VOLTAGE ADJUSTMENT
r * VOLTAGE SELECT SWITCH

When you move to an area where power of a different

voltage is supplied, reset the voltage changing switch
(100~120V» 200~ 240V).

CYCLE ALTERATION

REPLACING STYLUS

Worn out stylus makes noise and sound. Take off worn
out stylus and insert new one (A) into (E . Replacement
stylus=DT~33H (Diamond stylus life : 1,000~2,000 hours)

REPLACING CARTRIDGE

The tone arm accepts universal at your choice. To replace the cartridge, remove the head by rotating the connector
not counter-clockwise. Replace the desired cartridge, with special care for the correct polority of wiring. Replacing
with the same cartridge requires stylus pressure adjustment for 2.5g. Replacing with the another type cartridge requires
balance and stylus pressure adjustments.

/-TONE ARM

' \g.
{E:EVAWDR

REST

CONNECTOR NUT
/ /
/
t» 8;

<\

J
Fig. 3

STY LUS PRESSURE ADJUSTMENT

When replacing the stylus and the cartridge, stylus pressure should be adjusted. Adjust the stylus tip to be on the
record level by rotating the main weight (Fig. 4).

To fix the main weight not to turn by hand, rotate the dialring to 0 position. (Fig. 5)

Then, adjust the main weight to required stylus pressure value. (Fig. 6)

(If the require stylus pressure is 3 g, the dial well show as in Fig. 6 when the weight is adjusted.)

'0' aauncms

SRP-47 3E - 2 -
