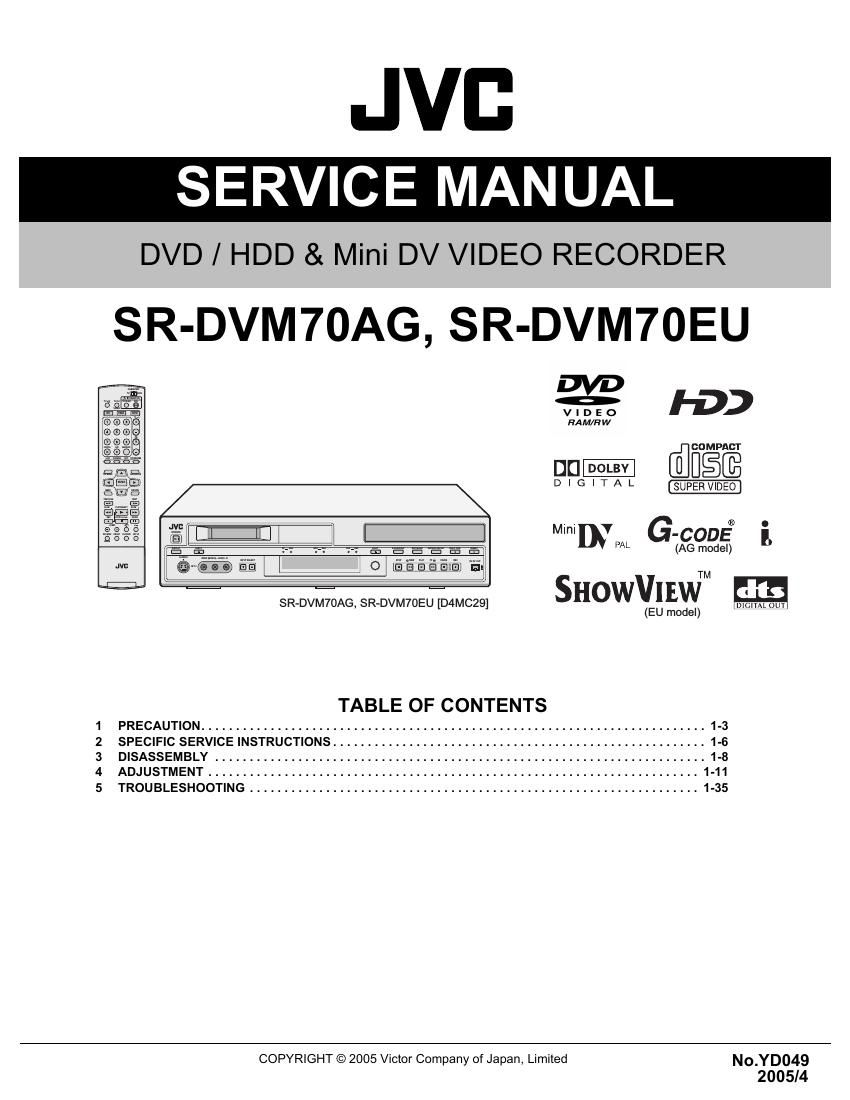

Jvc SRDVM 70 EU Service Manual

Page 2

SPECIFICATION

SR-DVM7OAG SR-DVM70EU

GENERAL

Power requirementl

AC 220 V ~ 240 V, 50 HZ/60 HZ

Power consumption

Power on 45 W
Power off 18 W
Temperature
Operating 5°C to 35C
Storage -20°C to 60°C
Operating position Horizontal only
Dimensions (W x H x D) 435 mm x 96 mm x 372 mm
Weight 6.2 kg
Input/Output
Video input 0.5 - 2.0 Vp-p, 75 52 (pin jack)
Video output 1 Vp-p, 75 Q (BNC)
Audio input -8 dB, 50 k9 (pin jack), Corresponding to mono (left)

Audio output

-8 dB, 1 kn (pimack)

21-pin SCART connectors

[N/OUTx1,|N/DECODER x1

S-video input Y: 0.8 - 1.2 Vp-p, 75 Q, C: 0.2 - 0.4 Vp-p, 75 Q
S-video output Y: 1.0 Vp-p, 75 Q, C: 0.3 Vp-p, 75 9
DV 4-pin for DV IN/OUT

Component video output

v: 1.0 Vp-p, 75 o, CB/CR, PB/PR: 0.7 Vp-p, 75 :2
Corresponding to copy protection

Remote Input

63.5 mm

Digital audio output

Optical: -18 dBm, 660 nm, Coaxial: 0.7 Vp-p, 75 Q,
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD deck)

Recording time

Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour, (SP): Approx. 2 hours, (LP): Approx. 4 hours
(EP): Approx. 6 hours, (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

VIDEO/AUDIO (HDD Deck)

Video recording compression system

MPEG2 (VBR)

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Recording time

Maximum 300 hours (with 160 GB HDD)
(XP): Approx. 34 hours, (SP): Approx. 69 hours, (LP): Approx. 138 hours
(EP): Approx. 209 hours, (FR): Approx. 300 hours

VIDEO/AUDIO (DV Deck)

Signal system

PAL colour signal, 625 lines/50 fields

Recording system

Digital Component Recording

Format DV format (SD mode)
Cassette Mini DV Cassette
Maximum recording time
(SP) (SP): 80 min. with M-DVBOME cassette
(LP) (LP): 120 min. with M-DV80ME cassette

Audio recording system

PCM 48 kHz, 16 bit (2 ch)/32 kHz, 12 bit (4 ch)

TUNERITIMER

Tuning system

Frequency synthesized tuner

Channel coverage

VHF :47 MHZ - 89 MHZ/104 MHZ - 300 MHZ/302 MHz - 470 MHZ
UHF : 470 MHZ - 862 MHZ

Memory backup time

Approx. 60 minutes

ACCESSORIES

Provided accessories

RF cable, Input Cable Adapter, Output
Cable Adapter, AudioNideo Cable, Infrared
remote control unit, "R6" battery x 2

RF cable, 21-pin SCART cable,
SCART/RCA adapter x 2, Infrared remote
control unit, "R6" batten! x 2

' Specifications shown are for SP mode unless othen/vise specified.

opment Corporation.(EU MODEL)

- G-CODE is registered trademarks of Gemstar Development Corporation. The G-CODE system is manufactured under license from Gemstar De-

yelopment Corporation.(AG MODEL)

- ll (i.Link) refers to the lEEE1394-1995 industry specification and extensions thereof. The 5. logo is used for products compliant with the i.Link stan-

dard.

1-2 (N0.YD049)

E.& O.E. Design and specifications subject to change without notice.
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
Cassettes marked Mini DV can be used with the DV deck of this unit. The DV deck can play back and record only PAL signals.

' SHOWVIEW is a trademark of Gemstar Development Corporation. The SHOWVIEW system is manufactured under licence from Gemstar Devel-
