Jvc SRC 900 Service Manual

Page 1

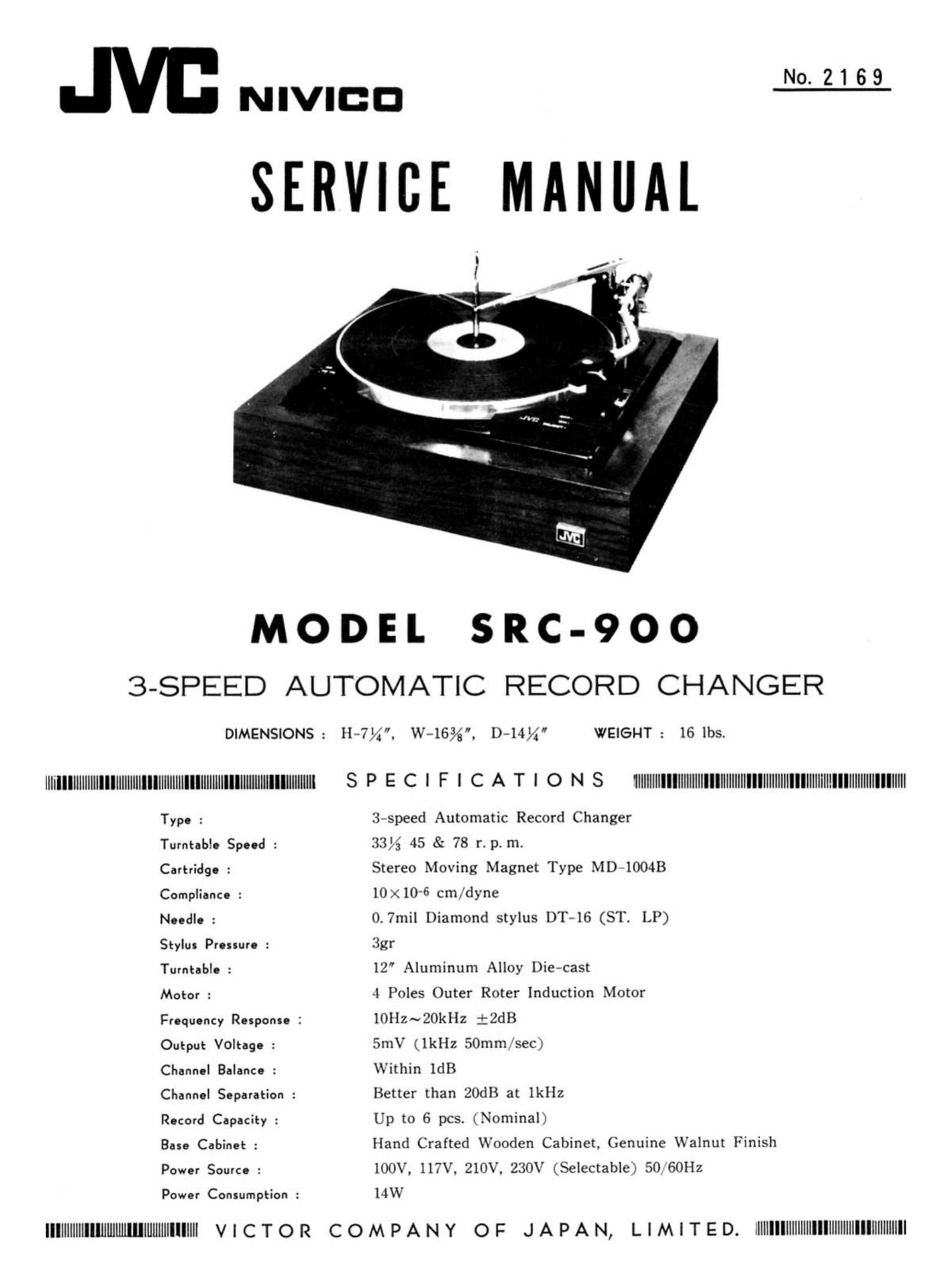

No. 2169

NIVICD

SERVICE MANUAL

MODEL SRC-9OO
3-SPEED AUTOMATIC RECORD CHANGER

DIMENSIONS: ll-Tl/g". 7-1693. D-l4l/4 WEIGHT: 16 lbs.

l|llllIllllllllllllllllllllllIIllllll|llIIIllllllllIIIlllllllllllllllllllllll S P E C I F I C A T l O N S llllllllllllllllllllllIIlllllllllIIIlll|||||||IlllllllllllllllllllllllIllllll

Type : Zlvspeed Automatic Record Changer

Turntable Speed : 33H 45 3: 78 r. p. m.

Cartridge : Stereo Moving Magnet Type .\lDrl()04B
Compliance : 10><106 cm,"dyne

Needle : 0.7mil Diamond stylus I)T-16 (ST. LP)
Stylus Pressure : 3gr

Turntable : 12 Aluminum Alloy Die-cast

Motor : -1 Poles Outer Roter Induction Motor
Frequency Response : 10llz~20kllz :ZdB

Output Voltage : SmV (lkHz 50mm r'sec)

Channel Balance : \Vithin ldB

Channel Separation : Better than 20dB at lkllz

Record Capacity : Up to 6 pcs. (Nominal)

Base Cabinet : Hand Crafted Wooden Cabinet. Genuine Walnut Finish
Power Source : 100V, 117V. 210V, 230V (Selectable) 50 60Hz
Power Consumption : HW

II||l||l|l||llllllllllllll|llllll||III||ll V l C T O R C O M P A N Y O F J A P A N, L | M l T E D. lllllllllllllllllllllllllllllllllllllllllll

Page 2

MAIN PARTS LOCATION

.1 2
?

PARTS NO. 1 PARTS NAME 1D§V§° PARTS N0. PARTS NAME
1 E0730-2 11 Universal Transformer IE 6 i E0578-28 Plug Wire Ass'y (Left)
2 04112-0. 2 1 Fuse (0. 2A) 1 7 E30762-C 4p Plug Wire Ass'y
3 Q03001-43 Lug Strip Ass'y 1 8 D-91074 Base Cabinet
4 804083 Pin Jack Assy (2P) 9 . E20127-002 Dust Cover
5 150578-27 1 Plug Wire Ass'y (Right)

MAIN VOLTAGE ADJUSTMENT

This player is equipped with an universal power transformer for use on 100~240 volts power supply.
Primary winding has taps for 100. 117, 210, and 230 volts. Re-connect the wire to required tap according to

your house current outlet.

In regard to middle voltage such as 220V use the position of higher voltage (230V tap) next to the

house current outlet.

Note :

CYCLE ALTERATION

Phase condenser and motor wiring are not to be altered.
Replace motor pulley only.

50Hz pulley : M6506-AS

60Hz pulley : M6506-BS

SRC-900 _ 2 _
