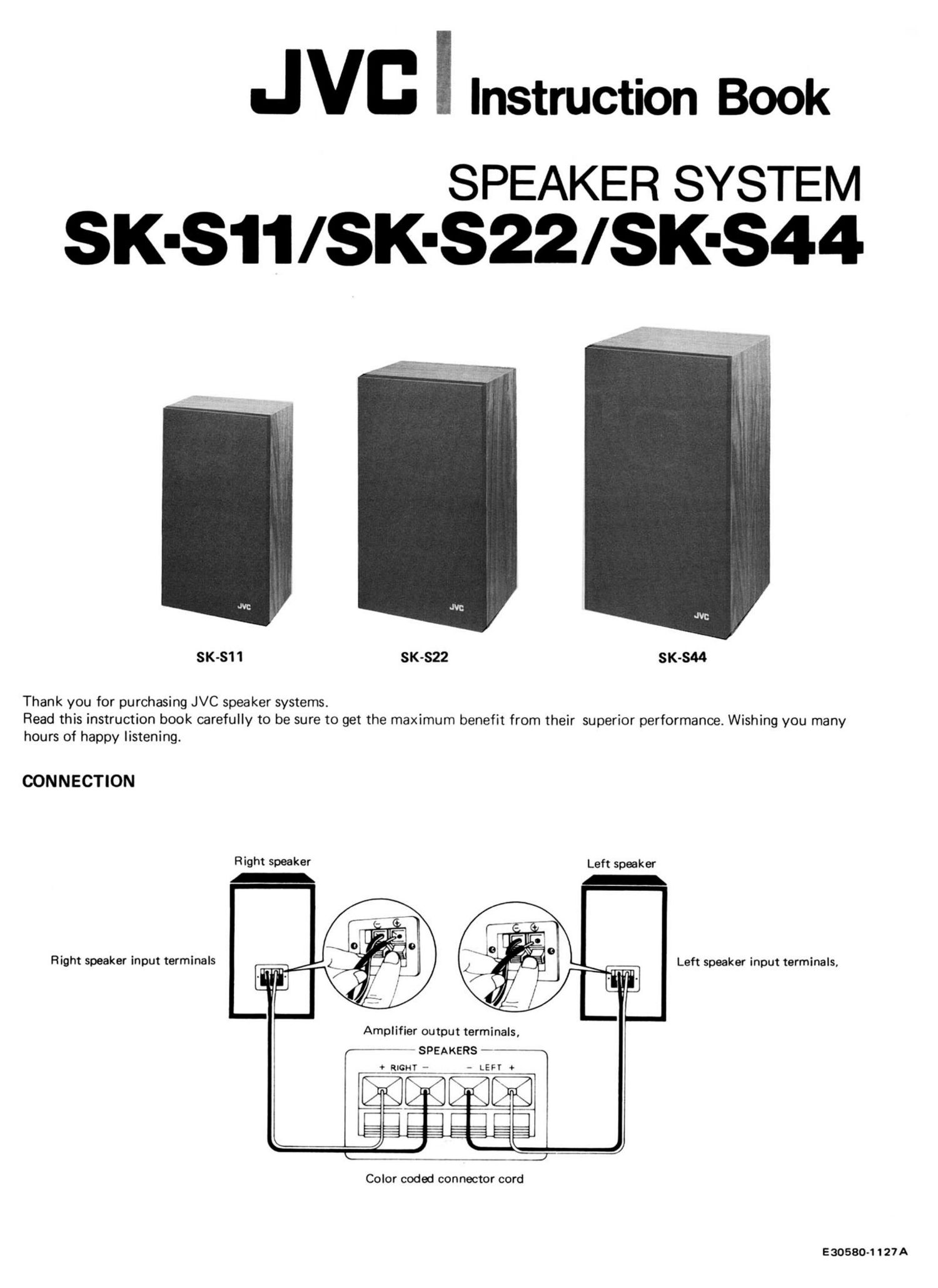

JVC I Instruction Book

SPEAKER SYSTEM
SK-S11/SK-522/SK-S44

SK-S1 1 SK-SZZ SK-SM

Thank you for purchasing JVC speaker systems.
Read this instruction book carefully to be sure to get the maximum benefit from their superior performance. Wishing you many
hours of happy listening.

CONNECTION

Right speaker Left speaker

Right speaker input terminals Left speaker input terminals,

Amplifier output terminals,

SPEAKERS *

.LR'G. .H_T_:_ .. __f LEE +_
. _l

Color coded connector cord

E 30580-1127 A

Page 2

CONNECTION SPECIFICATIONS
0 Turn off power to the whole system before connecting SK-S11
the speakers to the amplifier. Type : 3-way bass reflex type
0 The nominal impedance of the SK-S11/SK-822/SK-S44 is Speakers
8 ohms. Connect them to an amplifier with a load imped- Woofer : 8" cone x 1
ance of 8 ohms speaker. Midrange : 2-3/4 cone x 1
0 The maximum power handling capacity of the Tweeter :2" cone x 1
SK-Sl 1/SK-S22/SK-S44 is 70/80/120 watts. Excessive Power handling capacity : 70 watts music
input will result in abnormal noise and possible damage. Impedance :8 ohms
70 % of the maximum amplifier output is normally avail- Frequency range : 50 - 20 000 Hz
able when the volume control is set to its center position. Sound pressure level ; 90 dB/W (1 m)

In cases where the signals described below are applied to
the speakers, even if the signals are below the maximum

Dimensions (H x W x D)

: 22-1/4" x 12-9/16" x 8-3/8"

(56.5 x 32.0 x 21.3 cm)

allowable input, they may cause an overload and burn the Weight :16.5 lbs (7.5 kg) each
wiring of the speakers. Be sure to lower the amplifier volume Accessory 3 Speaker cord (30 m)
beforehand. .
1) Noise during FM tuning.
2) High level signals containing high frequency components SK'SZZ
produced by a tape deck in the fast forward mode. Type : 3-way bass reflex type
3) Click noise produced when turning power of other com- Speakers
ponents on and off. WOOfer : 10" cone x 1
4) Click noise produced when connecting or disconnecting Midrange 12-3/ " cone x 1
cords with the power on. Tweeter : 2" cone X 1
5) Click noise when the cartridge is replaced with the Power handling capacity I 80 watts music
power on_ Impedance 2 8 ohms
6) Click noise produced when operating amplifier switches. Frequency range I 40 - 20 000 Hz
7) Continuous high frequency oscillation or high pitch elec~ Sound pressure level I 91 dB/W (1 m)

tronically produced musical instrument sound.
8) Howling when using microphones.

Dimensions (H x W x D)

: 23-7/ x 13-5/8" x10-1/2"

(60.6 x 34.6 x 26.7 cm)

Weight : 22.3 lbs (10.1 kg) each
Accessory : Speaker cord (3.0 m)
SK-S44
Type : 3-way bass reflex type
Speakers

Woofer : 12" cone x 1

Midrange : 5" cone x l

Tweeter : 2-3/8 cone x 1
Power handling capacity : 120 watts music
Impedance : 8 ohms
Frequency range : 35 - 20 000 Hz
Sound pressure level : 92 dB/W (1 m)

Dimensions (H x W x D)

Weight
Accessory

: 26-3/16"x15-1/8"x12-5/8"

(66.5 x 38.4 x 32.1 cm)

: 33.7 lbs (15.3 kg) each
: Speaker cord (3.0 m)

Design and specifications subject to change without notice.

JVB

VICTOR COMPANY OF JAPAN. UMTED
TCKYO, JAPAN
