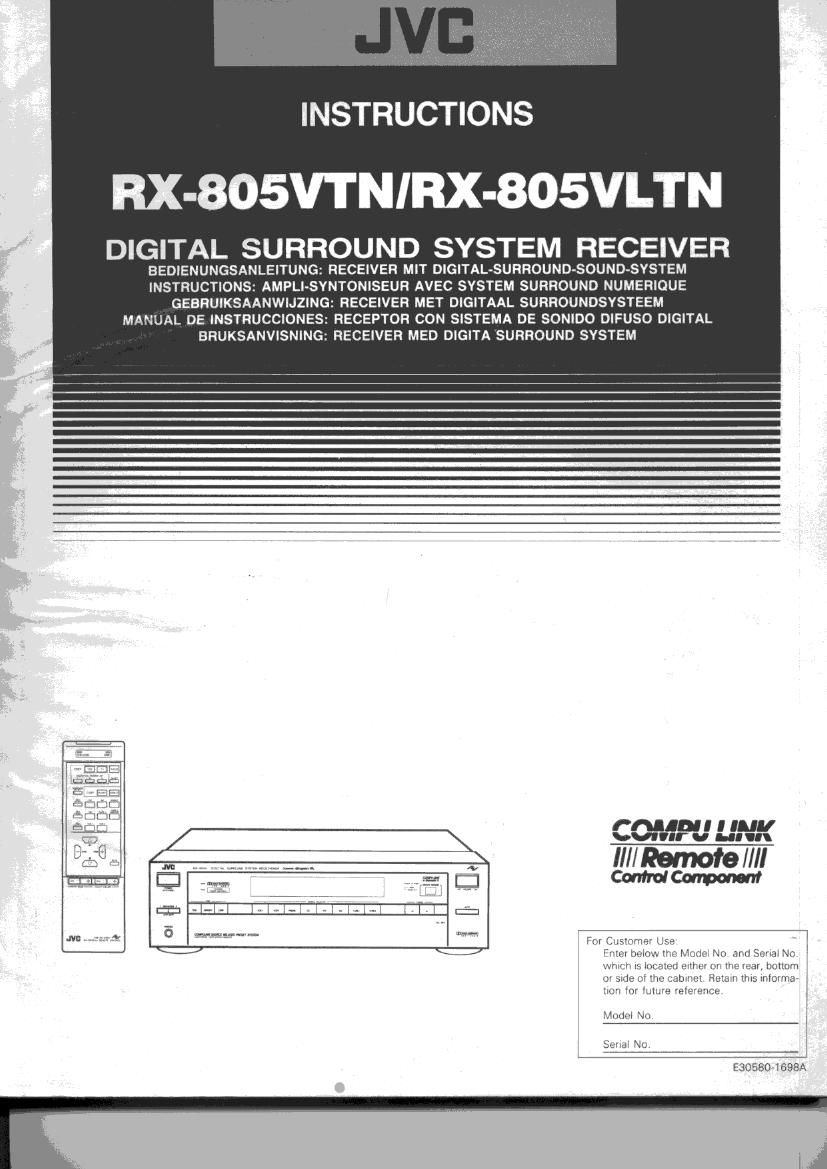

Jvc RX 805 VLTN Owners Manual

Page 2

Rear Panel

0 Switch the power off when connecting any cables.

lama"

Ior Continental For the U K

Europe

For Au

For Canada
and other
areas

slialia

tint o mus N.

.e

0
0 rust
e

II n mum

®

nlhll rm

0 AUDIO terminals
(PHONO. CD. TAPE 1, TAPE 2, VCR 1, VCR 2)
. For audio Signal connection

0 Connect a turntable ustng a movtng magnet (MM) type
cartridge to the PHONO terminals

0 VIDEO terminals
(VCR 1. VCR 2)
e For Video signal connection

9 REAR OUT terminals
- To upgrade the rear speaker sound (to get more power),
connect an amplifier to these terminals.
In this case, disconnect the rear speakers from the REAR
SPEAKERS terminals, and connect them to the amplifier.

OMONITOR OUT terminals
- Connect the VIDEO INPUT terminal of a TV,
6 ANTENNA terminals

0 GND (ground) terminal

0 COMPU LINK-1 SVNCHRO terminals
7 Connect to units provided With COMPU LINK-l SYNCHRO
terminals for the COMPU LINK remote control function.

a Do not connect the remote cable to the JVC cassette deck
connected to the terminals other than TAPE 1.

0 AV COMPU LINK terminals
- These terminals are provided for connecting the AV COMPU
LINK to JVC AV COMPU LINK-compatible video components
to be marketed in the future.

0A0 OUTLETS (SWITCHED)

G FRONT SPEAKERS termlnels
0 REAR SPEAKERS terminals
9 CENTER SPEAKER terminal
G AM channel spacing switch
0 Fuse holder'

9 Voltage selector

9 Power Cord

' Not provided on units for Canada, the United Kingdom and Aus
tralia
" Not provtded on units for Canada, Continental EurOpe, the United
Kingdom and Australia.

Notes:

0 When connecting components, connect their left and right chan-
nels correctiv It channels are reversed, the stereo effect will be
degraded.

0 The AC OUTLETS do not supply power when the power swttch
IS turned off

0 Do not connect equipment requiring more than the outlet's rated
value.
