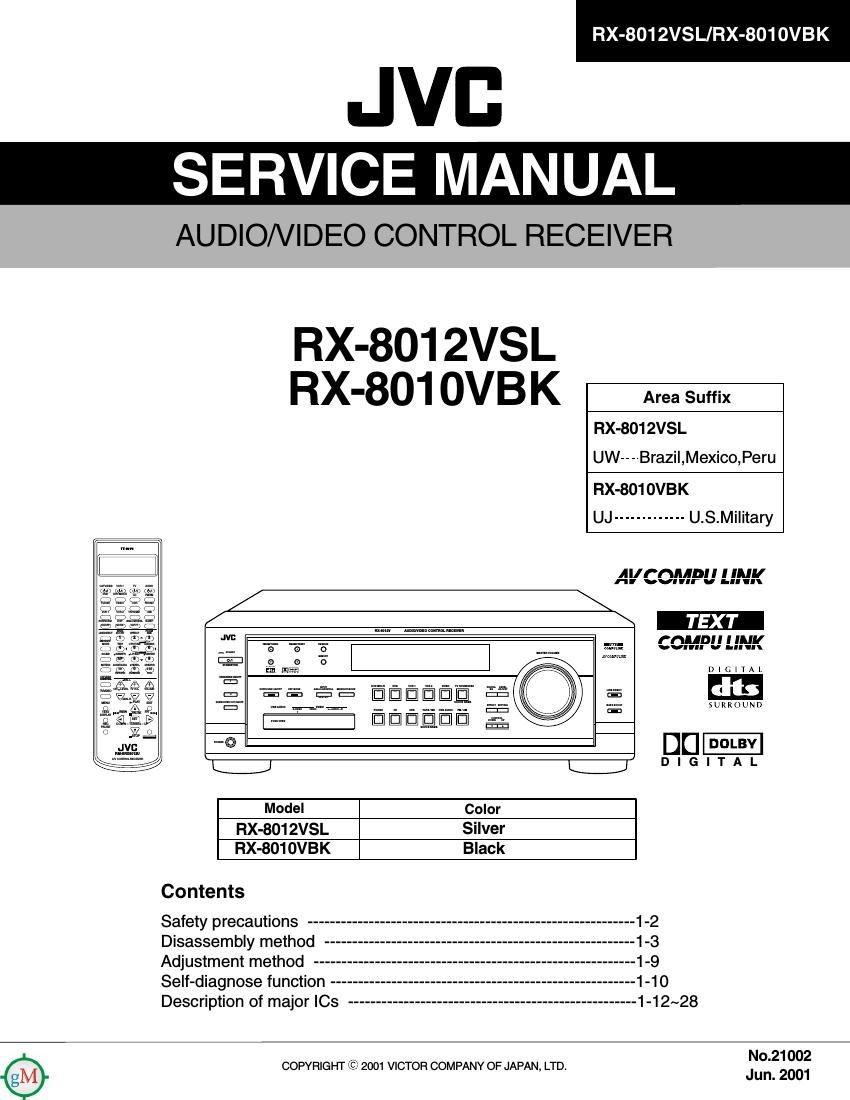

Jvc RX 8010 Service Manual

Page 2

http: //getMANUAL . com

RX-8012VSL/RX-8010VBK

-Safety Precautions

1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturer's warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by (/t\,) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.

5. Leakage current check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal parts of the product

(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the

product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

. Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 Q10W resistor paralleled by a 0.1 51.1 F AC-type capacitor

between an exposed metal part and a known good earth ground. AC VOLTMETER
Measure the AC voltage across the resistor with the AC a (Having1000
voltmeter. ohms/volts,

Move the resistor connection to each exposed metal part, c more sens'l'V'W)

particularly any exposed metal part having a return path to F A TYPE
the chassis, and measure the AC voltage across the resistor. 0'15 C

Now, reverse the plug in the AC outlet and repeat each -| Placethis
measurement. Voltage measured any must not exceed 0.75 V WV . Pmbe 0"
each exposed

AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). 15009 10W metal part.

Good earth ground

- Warning A CAUTION

1.This equipment has been designed and manufactured to meet international safety standards. Burrs formed during molding may
2. it is the legal responsibility of the repairer to ensure that these safety standards are maintained. be left over on some parts of the
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts. such burrs in the case of

5. If mains voltage selector is provided, check setting for local voltage. preforming repair of this system.

chassis. Therefore, pay attention to

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor (-), diode (h) and ICP (Q) or identified by the (N
mark nearby are critical for safety.

When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the J&C version)

Page 6

RX-8012VSL/RX-8010VBK

l Removing the main board (See Fig.14)

Prior to performing the following procedure, remove
the top cover, the rear panel and audio board.

1. Cut off the tie band fixing the harness.

2. Disconnect the harness from connector CN811 on
the power supply board respectively.

3. Disconnect the harness from connector CN881 on
the main board.

4. Remove the four screws I and the four screws J
attaching the main board.

lRemoving the heat sink
(See Fig.15 to 16)

1. Remove the ten screws K and four screws L
attaching the heat sink.

2. Remove the two screws L' attaching the heat sink
from the rear side of main board.

lRemoving the voltage select board
(See Fig.17)

- Prior to performing the following procedures, remove
the top cover and the rear panel.

1. Cut off the tie band fixing the harness.

2. Unsolder the six harnesses connected to the power
transformer.

1-6

CN881 I Tie band

Heat sink

Main board
rear snde

Solder
pomts

if

Power cord

Fig.14

K K K

lllllllll\\\

Fig.15

Wm

.v
IIIII

Fig.1?

lllll /L-

-gb-"I

Power transformer

Voltage select board

Tie band

Solder points

Voltage selector

Page 85

@

I Digital Connections

This receiver is equipped with four DIGITAL IN terminals 7 one
digital coaxial terminal and three digital optical terminals, and one
DIGITAL OUT terminal.

IMPORTANT:

- When connecting the DVD player, digital TV broadcast tuner or
DBS tuner using the digital terminals, you also need to connect it to
the video terminal on the rear. Without connecting it to the video
terminal, you can view no playback picture.

- After connecting the components using the DIGITAL IN terminals,
set the following correctly if necessary.

- Set the digital input (DIGITAL IN) terminal setting correctly. For
details, see Digital Input (DIGITAL IN) Terminal Setting" on page
19.

- Select the digital input mode correctly. For details, see Selecting
the Analog or Digital Input Mode" on page 20.

Digital input terminals

You can connect any digital equipment as follow.

Digital TV
DBS tuner
-
-I:I_
DVD player CD player
-

Digital coaxial cable (not supplied)
between digital coaxial terminals

Digital optical cable (not supplied)
between digital optical terminals

When the component has a digital
coaxial output terminal, connect it to the
DIGITAL 1 (DVD) terminal, using the
digital coaxial cable (not supplied).

When the component has a digital
optical output terminal, connect it to the
DIGITAL 2 (CD), DIGITAL 3 (TV) or
DIGITAL 4 (CDR) terminal, using the

d' 't I r I bl ( t |' d) mum
igia op ica ca e no supp re .

[IQ]

Before connecting a digital mm

optical cable, unplug the m [:33]

protective plug. I moriALArccn)

a?
%/

ENOIJDRXVSOIZVHJWLI 8
{Q}

Notes:

- When shipped from the factory the DIGITAL IN terminals have
been set for use with the following components.

- DIGITAL 1 (coaxial): For DVD player

- DIGITAL 2 (optical): For CD player

- DIGITAL 3 (optical): For digital TV broadcast tuner

- DIGITAL 4 (optical): For CD recorder

When you want to operate the CD player, CD recorder, or MD
recorder using the COMPU LINK remote control system, connect
the target component also as described in "Analog Connections"
(see pages 5 and 6).

When you want to operate the DVD player using the AV COMPU
LINK remote control system, connect the DVD player also as
described in Analog Connections" (see page 7).

Digital output terminal

CD recorder MD recorder

- -
-I:II:II:I:EEI- -
0 == _E o I'ID

Digital optical cable (not supplied)
between digital optical terminals
lI-W

When the digital recording
equipment such as an MD recorder
and CD recorder has a digital
optical input terminal, connecting it
to the DIGITAL OUT terminal
enables you to perform digitaHo-
digital recording.

Note:

The digital signal format output through the DIGITAL OUT terminal is
the same as that of the input signal. This means that when the DTS
Digital Surround signals are input, the DTS Digital Surround signals
are output.

01.2.14.11:51 AM

Page 130

To change the transmittable signals for
operating a CATV converter or DBS tuner

1. Press and hold CATV/DBS O/I .
2. Press CATV/DBS CONTROL.

3 Enter manufacturers code using buttons 1-9,
and 0.
See the following lists to find the code.

4. Release CATV/DBS Oll .
The following buttons can be used for the CATV Converter and
DBS tuner:

Turns on and off the CATV converter
or DBS tuner.

Changes the channels.

Selects the channels.

The 10 button will function as the
ENTER button if your equipment
requires pressing ENTER after
selecting a channel number.

CATV/DBS OH:

CH +/-:
1- 10, 0, 100+ (+10):

Note:

Refer to the manual supp/led with your CATV converter or DBS
tuner.

For CATV converter
Manufacturer Codes
GENERAL INSTRUMENT 06, 07, 08, 09, 10, 11,
12, 13, 14, 29
HAMLIN/REGAL 01, 02, 03, 04, 05
JERROLD 06, 07, 08, 09, 10,11,
12, 13, 14
OAK 15, 16, 17
PANASONIC 18, 19, 20
PIONEER 21, 22
SCIENTIFIC ATLANTA 23, 24, 25
TOCOM 26
ZENITH 27, 28

Manufacturers codes are subject to change without notice. If
they are changed, this remote control Cannot operate the
equipment.

To change the transmittable signals for
operating another manufacturer's VCR

1. Press and hold VCR 1 OH .

2. Press VCR 1.

5. Try to operate your CATV converter or DBS
tuner by pressing CATV/DBS 0/1.
When your CATV converter or DBS tuner turns on or off, you
have entered the correct code
If there are more than one code listed for your brand of

CATV converter or DBS tuner, try each one until the correct 4.

one is entered.

3. Enter manufacturers code using buttons 1-9,

and 0. J.
See the list on the next page to find the code. $1
Release VCR 1 OH .

The following button can be used for operating the VCR:

Note: VCR 1 Oll 2 Turns on and off the VCR.
You cannot use both of the CATV converter and Des tuner at the After pressing VCR 1, you can perform the following operations
same 7779- on the VCR:
For DBS tuner CH +/-Z Changes the TV channels on the
VCR.
Manufacturer Codes 1 - 10, 0, 100+ (+10): Selects the TV channels.
JVC 56Y 57, 67 The 10 button will function as the
AMSTRAD 43Y 44, 45 46Y 47, 48 49 ENTER button if your VCR requires
BLAUPUNKT 3O pressing ENTER after selecting a
ECHOSTAR 50, 51, 67 channel number.
GOLDSTAR 31 > PLAY: Starts playback.
GRUNDIG 32, 33 REWE Rewinds a video tape.
HIRSHMANN 48Y 52, 53 541 55 FF: Fast winds a video tape.
INSTRUMENT 68 l STOP: Stops operation.
ITT/NOKIA 34 II PAUSE: Pauses.
KATHREIN 52Y 58, 59, 60, 51, 62 63 REC PAUSE: Enters recording pause.
NEC 35, 36
ORBITECH 48 Note:
PHILIPS 37, 38 Flefer to the manual supplied with your VCR.
RCA 65
SAMSUNG 39' 40 5. Try to operate your VCR by pressing VCR 1 C) .
SCHWAIGER 61 64 When your VCR turns on or off, you have entered the correct
SIEMENS 41, 42 Code.
SONY 66 If there are more than one code listed for your brand of
TECHNISAT 48 VCR, try each one until the correct one is entered.

Manufacturers codes are subject to change without notice. If
they are changed, this remote control cannot operate the
equipment.

EN4775B,RX78012V[UWLI 53

a

01.2.14. 5:51 PM
