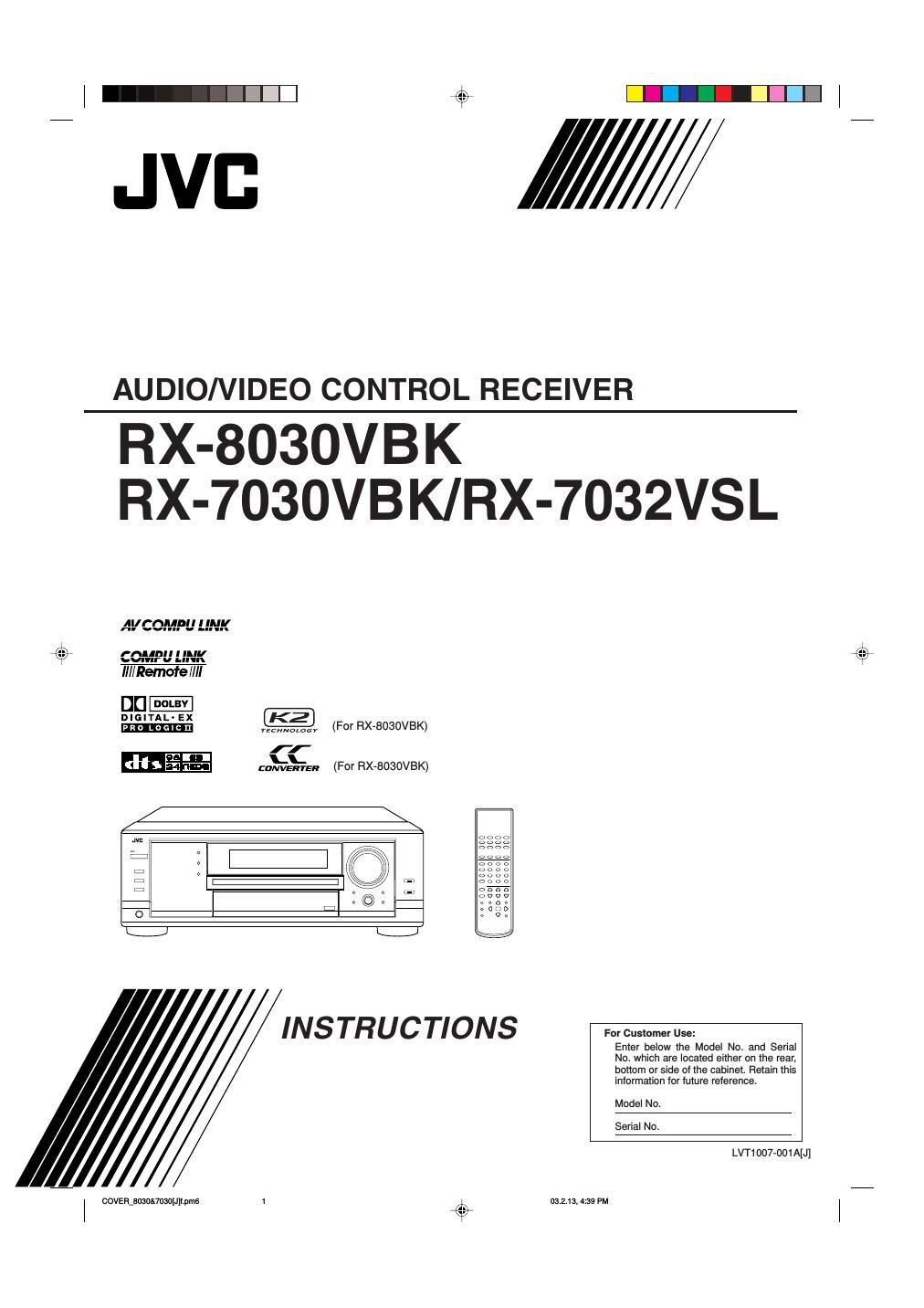

Jvc RX 7032 VSL Owners Manual

Page 2

G}?

{it

Warnings, Cautions and Others/
Mises en garde, précautions et indications diverses

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning llash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

For U.S.A

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. if this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:

Reorient or relocate the receiving antenna.

increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the
manufacturer for compliance could void the users authority to
opratethe equipment.

WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Atin deviter tout risque d'électrocution, d'incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le
coffret de l'appareil.
2. Ne pas exposer l'appareil a la pluie ni a l'humidite'.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's
attention to Section 820-40 of the NEC which provides guidelines for
proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.

Caution -- (D/I STANDBY/ON button!

Disconnect the mains plug to shutthe poweroff completely. The
(DH STANDBY/ON button in any position does not disconnect
the mains line. The power can be remote controlled.
Attention - Commutateur ('JII STANDBY/ON!

Déconnecter la fiche de secteur pour couper completement le
courant. Le commutateur (bll STANDBY/ON he coupe jamais
completement la ligne de secteur, quelle que soit sa position. Le
courant peut étre telécommande.

G-1

Safety78030&7030[d]f.pm6 1

For Canada/pour Le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B
LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPA-
RATUS AS SET OUT IN THE INTERFERENCE-CAUSING
EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS,"
ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE
BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS
NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME
SUR LE MATERIEL BROUILLEUR; APPAREILS NUMERIQUES",
NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

03.2.13. 4:39 PM

(Jr.
op

Page 68

III

Rear Panel
RX-BD3DVBK

m

EB

E

lEEEE

EEEER

DIGITAL IN terminals (16)

O Coaxial: DIGITAL l (DVD)

O Optical: DIGITAL 2 (CD), DIGITAL 3 (TV),
DIGITAL 4 (CDR)

AUDIO input/outputjacks (11 4 15)

O Input: DVD IN-FRONT, CENTER, SUBWOOFER,
SURR (REAR), TV SOUND/DES IN,
VCR 1 IN (PLAY), VCR 2 IN (PLAY), CD IN,
TAPE/MD IN (PLAY), CDR IN (PLAY),
PHONO IN

O Output: VCR I OUT (REC), VCR 2 OUT (REC),
TAPE/MD OUT (REC), CDR OUT (REC)

S-VIDEO and composite VIDEO inpuVoutput jacks (14, 15)

O Input: DVD IN, TV SOUND/DES IN, VCRI IN (PLAY),
VCR 2 IN (PLAY)

O Output: VCR I OUT (REC), VCR 2 OUT (REC),
MONITOR OUT

FM/AM ANTENNA terminals (8)

PREOUTjacks (10, 11)

O FRONT, CENTER, SUBWOOFER, SURR, SURR BACK

COMPONENT VIDEO inpquutputjacks (14, 15)

O Input: DVD IN, DBS IN

O Output: MONITOR OUT

COMPU LINK-4 (SYNCHRO) terminals (41)

AV COMPULINK-III terminals (42)

AC power cord (16)

DIGITAL OUT terminal (16)

SURROUND BACK SPEAKERS terminal (10)

SURROUND SPEAKERS terminal (10)

CENTER SPEAKER terminal (10)

FRONT SPEAKERS 6) terminals (10)

FRONT SPEAKERS (2) terminals (10)

Earth (ground) terminal (11)

Differences between RX-BDEDVBK and RX-7030VBK

HX- 7030VBK

m DIGITAL IN terminals ( 16)
O Coaxial: DIGITAL 1 (DVD)
- Optical: DIGITAL 2 (CD), DIGITAL 3 (TV),
DIGITAL 4 (CDR)
El AUDIO input/outputjacks (12 ~ 15)
- Input: DVD INgFRONT, CENTER, SUBWOOFER,
SURR (REAR), TV SOUND/DES IN,
VCR IN (PLAY), TAPE/CDR IN (PLAY), CD IN
O Output: VCR OUT (REC), TAPE/CDR OUT (REC)
E S-VIDEO and composite VIDEO input/outputjacks (14, 15)
O Input: DVD IN, TV SOUND/DES IN, VCR IN (PLAY)
O Output: VCR OUT (REC), MONITOR OUT
E FM/AM ANTENNA terminals (8)
SUBWOOFER OUT jack (10)
E COMPONENT VIDEO input/output jacks (14, 15)
O Input: DVD IN, DBS IN
- Output: MONITOR OUT
COMPU LINK-4 (SYN CHRO) terminals (41)
AV COMPULINK-III terminals (42)
E AC power cord (16)
E DIGITAL OUT terminal (16)
1E SURROUND BACK SPEAKERS terminal (10)
SURROUND SPEAKERS terminal (10)
E] CENTER SPEAKER terminal (10)
FRONT SPEAKERS (1) terminals (10)
FRONT SPEAKERS @ terminals (10)

Q: Supplied X: Not supplied

Video jacks (input/output) PREOUT jacks CC Converter Selectable source

RX-8030VBK Composite video (4/3)

DVD MULTI, DVD, VCR 1, VCR 2, VIDEO,

S-Video (4/3) 0 0 TV SOUND/DES, PHONO, CD, CDR, TAPE/MD,
Component video (2/1) FM, AM

RX-7030VBK Composite Video (3/2) DVD MULTI, DVD, VCR,
S-Video (3/2) X X TV SOUND/DB3, CD, TAPE/CDR, FM, AM

Component video (2/1)

Remote Control Display Window Color
RM-SRX8030J 0 Black
RM-SRX7030J >< Black

mneisoaoamaoiclmms 7

03.2.13, 2:51 PM
{-5

@
