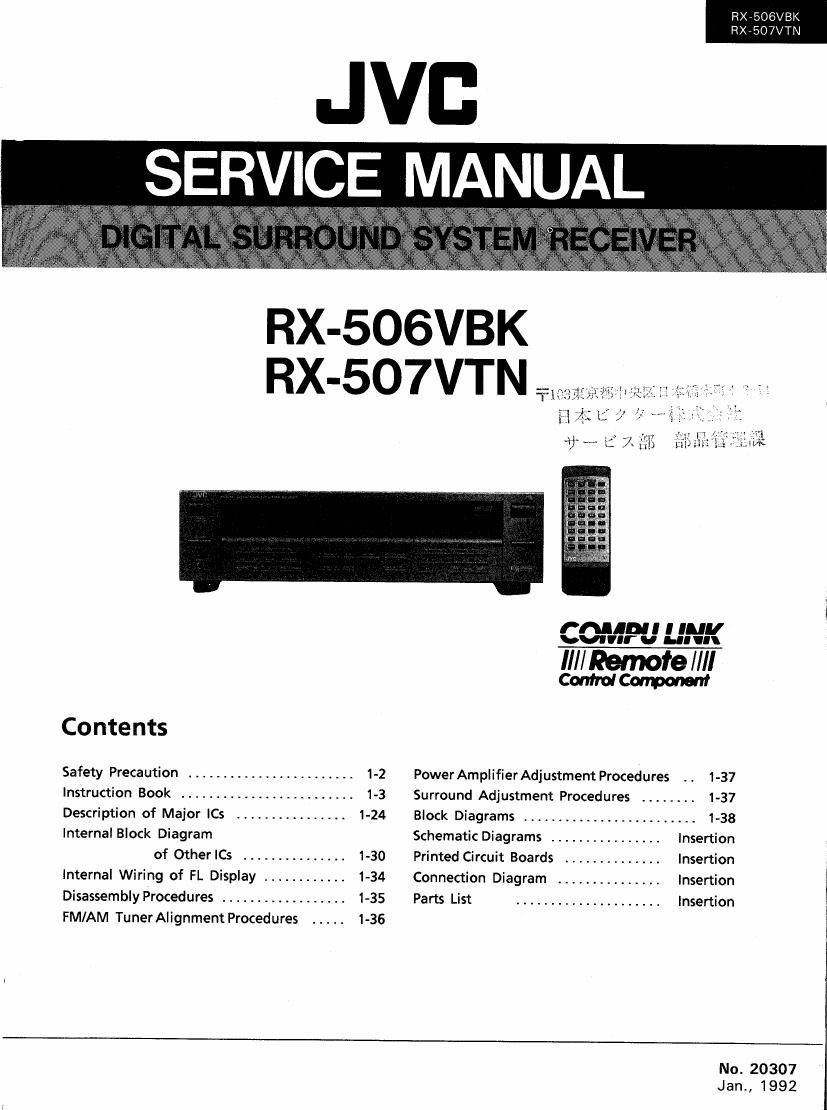

Jvc RX 506 VBK Service Manual

Page 1

RXA506VBK
RX7507VTN

JVC
SERV CE MANUAL

RX-506VBK

RX-507VTN e1

lllflllllllll'
wvn urv u"

Ill/ Remofe/ /l/I

ControlConponem

Contents
Safety Precaution ........................ 1-2 PowerAmplifier Adjustment Procedures 1-37
Instruction Book ......................... 1-3 Surround Adjustment Procedures ........ 1-37
Description of Major le ................ 1-24 Block Diagrams ......................... 1-38
Internal Block Diagram Schematic Diagrams ................ Insertion

of Other le ............... 1-30 Printed Circuit Boards .............. Insertion
Internal Wiring of FL Display ............ 1-34 Connection Diagram ............... Insertion
Disassembly Procedures .................. 1-35 Parts List ..................... Insertion
FM/AM Tuner Alignment Procedures ..... -36

No.20307

Jan.,

1992

Page 2

RX-506VBK
RX-507VTN

-$afety Precautions

1. The design of this product contains special hardware and many circuits and components
specially for safety purposes. For continued protection, no changes should be made to the
original design unless authorized in writing by the manufacturer. Replacement parts must
be identical to those used in the original circuits. Services should be performed by
qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design
alterations of the product should not be made. Any design alterations or additions will
void the manufacturer's warranty and will further relieve the manufacture of responsibility
for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related
characteristics. These characteristics are often not evident from visual inspection nor can
the protection afforded by them necessarily be obtained by using replacement components
rated for higher voltage, wattage, etc. Replacement parts which have these special safety
characteristics are identified in the Parts List of Service Manual. Electrical components
having such features are identified by shading on the schematics and by (A) on the Parts
List in the Service Manual. The use of a substitute repalcement which does not have the
same safety characteristics as the recommended replacement parts shown in the Parts List of
Service Manual may create shock, fire, or other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and
the like to be separated from live parts, high temperature parts, moving parts and/or sharp
edges for the prevention of electric shock and fire hazard. When service is required, the
original lead routing and dress should be observed, and it should be confirmed that they
have been returned to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal
parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack,
contorl shafts, etc.) to be sure the product is safe to operate without danger of electrical
shock.
Do not use a line isolation transformer during this check.

0 Plug the Ac line cord directly into the AC outlet. Using a Leakage Current Tester",
measure the leakage current from each exposed metal parts of the cabinet, particularly
any exposed metal part having a return path to the chassis, to a known good earth
ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000
ohms per volt or more sensitivity in the following manner. Connect a 1.5009 10 W
resistor paralleled by a 0.15 pF AC-type capacitor between an exposed metal part and a
known good earth ground.

AC VOLTMETER

Measure the AC voltage across the resistor E (Having 1000

With the AC voltmeter. ohms/volts, .. g

Move the resistor connection to each exposed 3 °_ 0' m°re$e"5't'V'W-)

metal part, particularly any exposed metal part

having a return path to the chassis, and _ 115,11: AC TYPE

meausre the AC voltage across the resistor. -||-- .

Now, reverse the plug in the AC outlet and ace 5
probe on

repeat each measurement. Any voltage M Veach ex ed

p
measured must not exceed 0.75VAC (r.m.s.). 150°010W metal part.
This corresponds to 0.5 mA AC (r.m.s.). Good earth ground
1- Warning

1. This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are
maintained.

3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.

1-2 (No. 20307)

Page 23

RX-SOGVB K
RX-507VTN

Cassette Deck [TAPE 7]

1 . Press the TAPE 1 key of the SOURCE SELECT or Function
Select keys

2. Use the Selectable Function keys

: Starts playback.
: Stops operation
: Skips to the beginning of the previous tune.
: Skips to the beginning of the next tune.
: Stops playback/recording temporarily.
To release it, press > .
' Fast Winds the tape from right to left.
: Fast Winds the tape from left to right.
Press together With b to start recording.
Press together With II to enter recordepause mode.

=!§lv

OH

VCR

1 . Press the VCR key of the SOURCE SELECT or Function Select
keys.

2. Use the Selectable Function keys.

Starts playback.
. Stops operation
: Stops playback/recording temporarily and enters the
pause/still mode. To release it, press 5 .
. Rewrnds VIdeO tape.
: Fastrforwards Video tape.
. Press together With p to start recording.
Press together with II to enter record-standby
mode
CHANNEL
+ : Scans to higher channels.
- : Scans to lower channels.

=lv

0!:

22

Cassette Deck ( TAPE 2) or VIDEO

1 . Press the TAPE 2 or VlDEO key of the SOURCE SELECT keys.

2 . A cassette deck connected to the TAPE 2 terminal and a video
disc player cannot be operated With the remote control unit.
Use the switches or buttons on the apparatus.

- Using the SLEEP timer

The sleep timer shuts off the receiver (to enter the STANDBY
model when the preset time intervals have elapsed.

1. Press the SLEEP key to set the timer setting mode.

l_

_ CI
I

2. Each time the SLEEP key is pressed subsequently, the timer
can be set up to 80 minutes, In 10-minute multiples.

<- continuously lit.

l [7 _
/_l I._/
i

turn off after about 3 seconds.

3. After the minute display turns off, press the SLEEP key once
more to display the remaining time in minutes.

(No. 20307) 1-23
