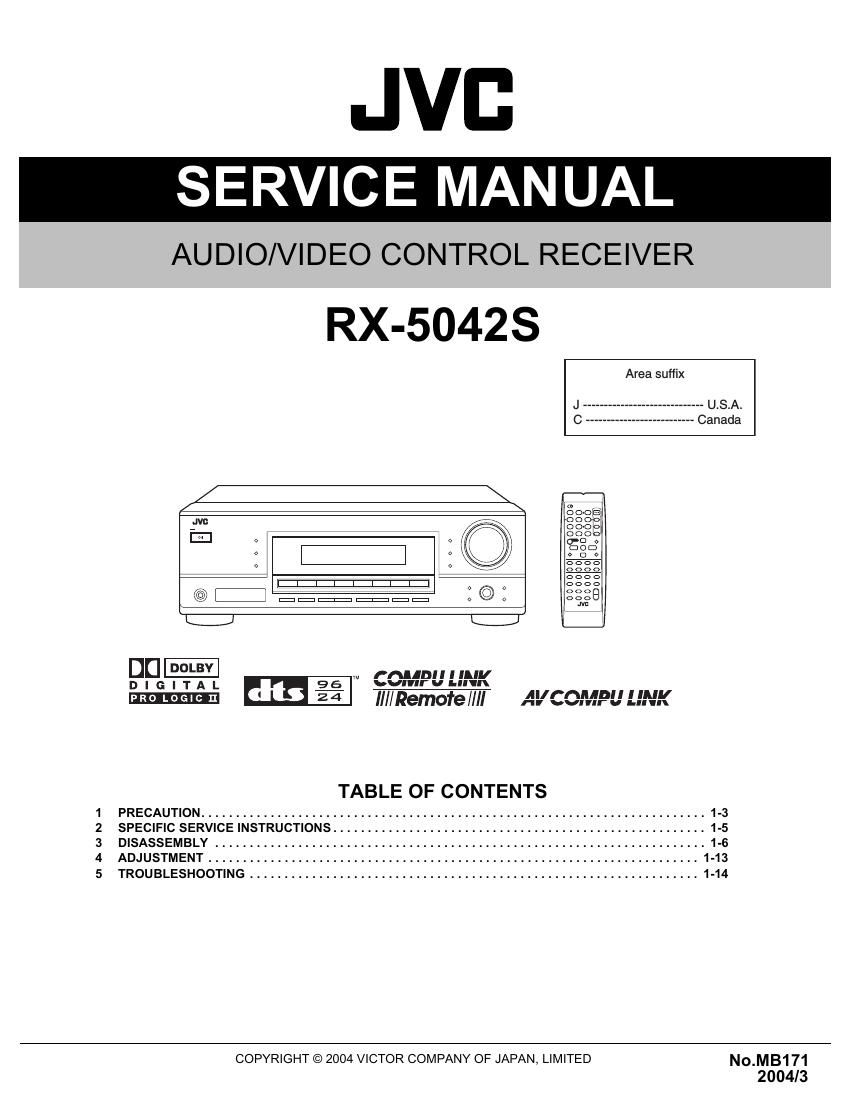

JVC
SERVICE MANUAL
AUDIO/VIDEO CONTROL RECEIVER
RX-504ZS
Area suffix
J ----------------------------- USA.
C __________________________ Canada
DU rnunn l IAII/
D I c. I T A L E w
2 4 IIl/Remofe /lII AVCOMPU lINK
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
3 DISASSEMBLY ....................................................................... 1-6
4 ADJUSTMENT ....................................................................... 1-13
5 TROUBLESHOOTING ................................................................. 1-14
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED NO.MB171
2004/3
