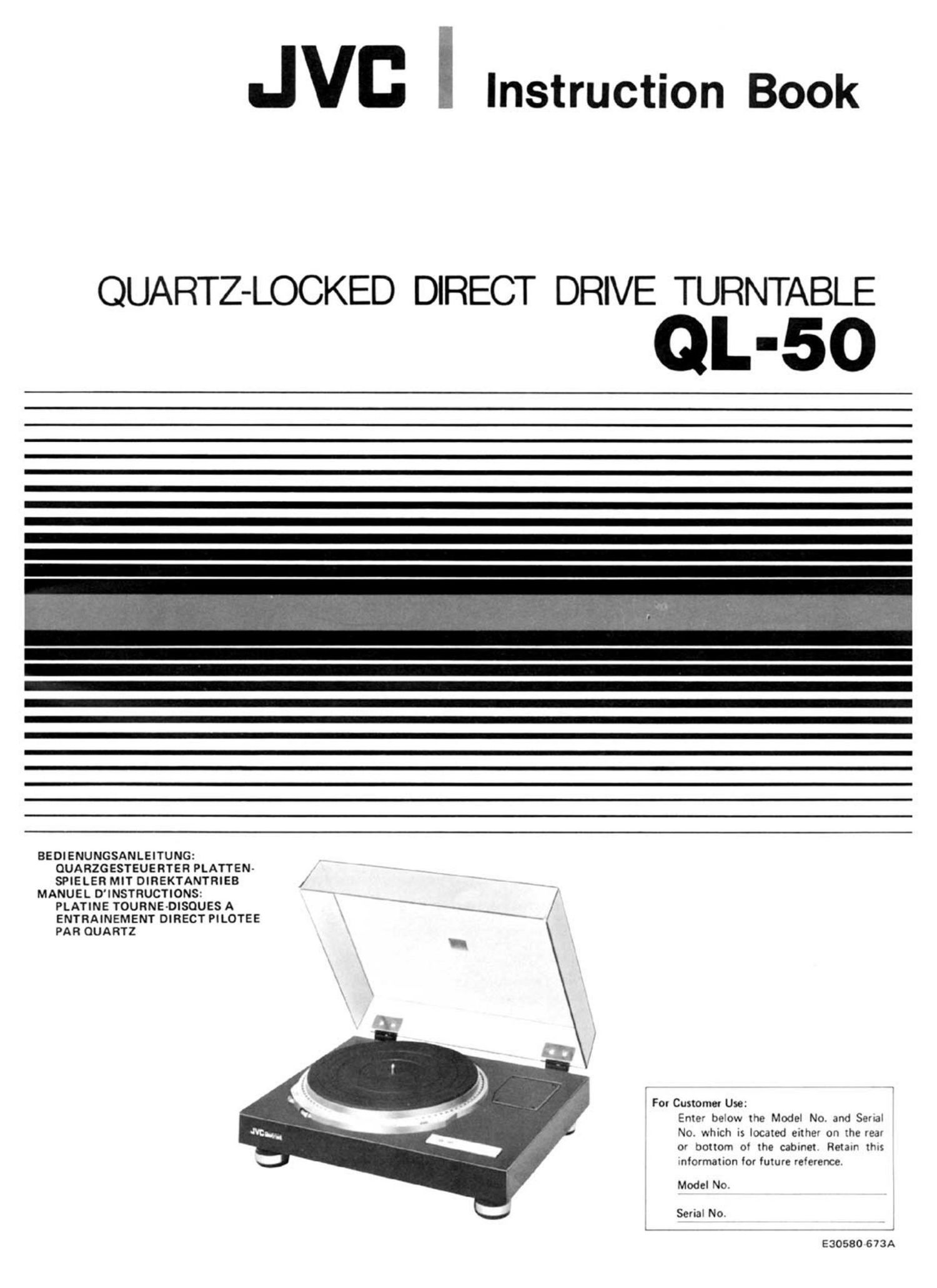

Page 1

JVC I Instruction Book

QUARTZ-LOCKED DIRECT DRIVE TURNTABLE

L-50

BEDIENUNGSANLEITUNG:
QUARZGESTEUERTER PLATTEN-
SPIELER MIT DIREKTANTRIEB ,

MANUEL D'INSTRUCTIONS: x
PLATINE TOURNE-DISQUESA ' , 7x x
ENTRAINEMENT DIRECT PILOTEE \

PAR QUARTZ

For Customer: Use:
Eme' beow the Model No. and Sena!
No. which is located either on the rear
0r bottom of the cabmet Relam thus
:nformatbon for future reference.

Model No.

Serial No.

4

530580 673A

Page 2

Fig. 1

I Tonearm mounting

The tonearm is mounted in the order of the following

steps:

1. Place a mark on the tonearm base after determining its
favorable mounting position in relation to the base
board and the dust cover.

2. Remove the 4 screws affixing the tonearm base, using
the provided hexagonal wrench.

1195mm7 .4

TONEARM BASE BOARD
TONARMSOCKELBASIS
PLAQUE DE LA BASE DU BRAS DE LECTURE

PREPARATIONS

Do not plug the power cord into the wall outlet until all
preparations have been completed.

Unpacking and setting up (Fig. 1)

Remove the corrugated cardboard strips from both sides.

3.

0145

Cut out the template provided on this page. Correctly
place it on the tonearm base and while determining a
favorable position for your selected tonearm give special
attention to its required overhang by refering to the
template's indicated dimensions.

. Drill a hole required for your selected tonearm.
. If a hole for a tonearm rest assembly is necessary, drill

this hole also according to the template provided with
the tonearm.

i5=llll

94.5 mm

-3-

Fixing screw
Befestigungsschraube
Vis de blocage /

MITTELPUNKT
PLATEAU Fig. 2
