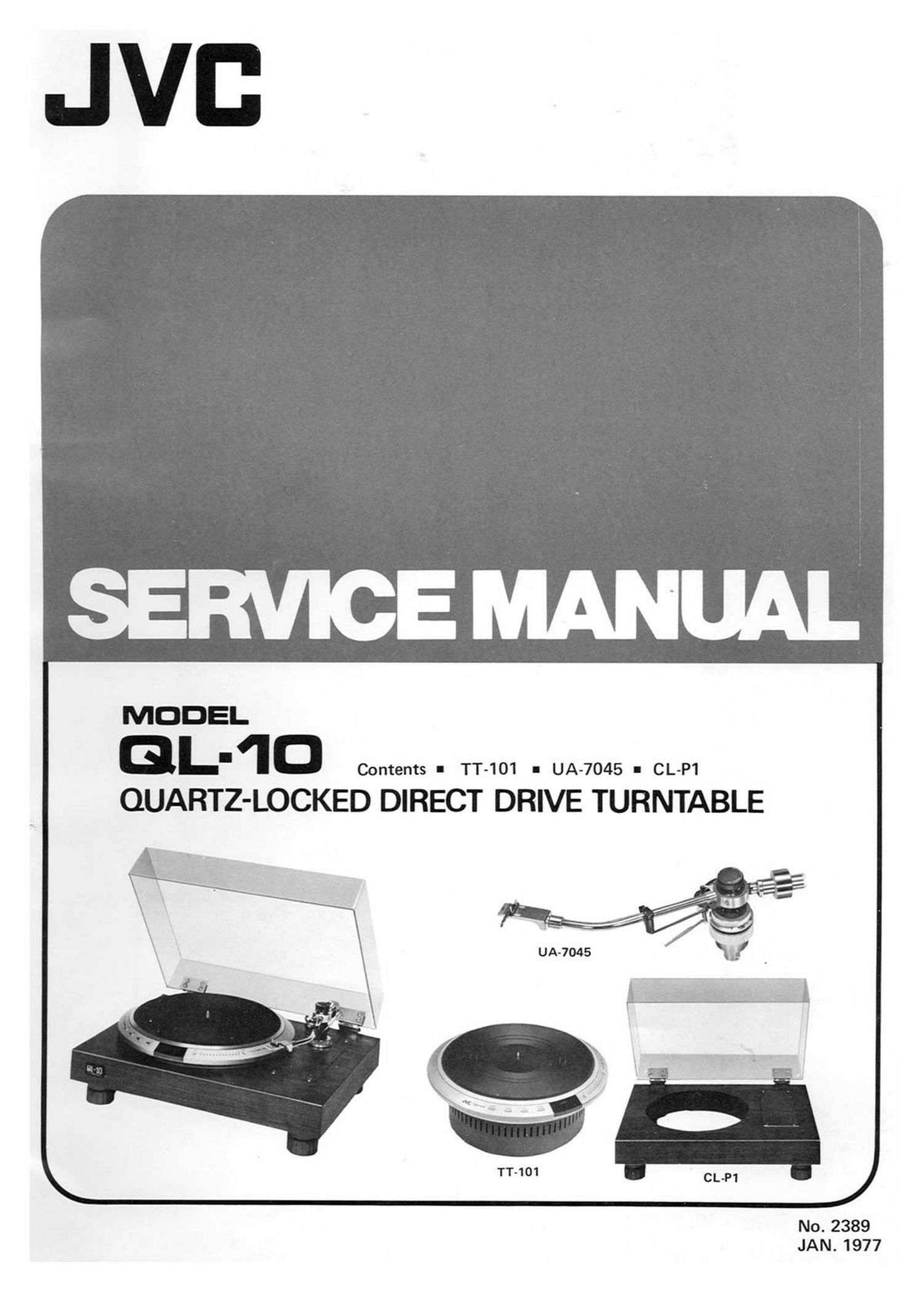

JVCs Model OL-IO Turntable consists of a TT-lOl Turntable,
UA-7045 Tonearm and CL-Pl Base Board, which are sold
separately. The OL-IO Turntable is precision adjusted at the
JVC factory to ensure a perfectly balanced system.
For details of the structure, operation, adjustment, trouble-
shooting and parts list, refer to the service manuals for the
TT-101 Turntable, UA-7045 Tonearm and CL-PI Base Board.
The OL-IOTurntabIe has its own particular packing. Therefore,
be sure to read the item describing Unpacking and Setting-up
in the chapter PREPARATION carefully.
This service manual covers the following areas:
U.S.A. Australia
Canada UK.
PACEX, NEX, EES Europe
(Military market} Other territories
CONTENTS
The table of contents for the OL-IO is divided into three
independent sections which fully describe the TT-IOI
Turntable, UA-7045 Tonearm and CL-PI Base Board. Refer to
each table of contents.
Table of contents
TT-101 Turntable section
UA-7045 Tonearm section
CL-P1 Base Board section
Line Voltages and Frequencies for Designated Areas
Countries Line Voltage & Frequency Power consumption
QL-IO
U.S.A. CANADA AC 120V, 60Hz 23 watts
EUROPE CONTINENT AC 220V, 50Hz 23 watts
U.K., AUSTRALIA AC 240V, 50Hz 23 watts
U.S. MILITARY MARKET AC 100, 120V/220, 240V 17.5 watts
Selectable, 50/60Hz
OTHER AREAS AC 110, 120V/220, 240V 23 watts
Selectable, 50/60Hz
