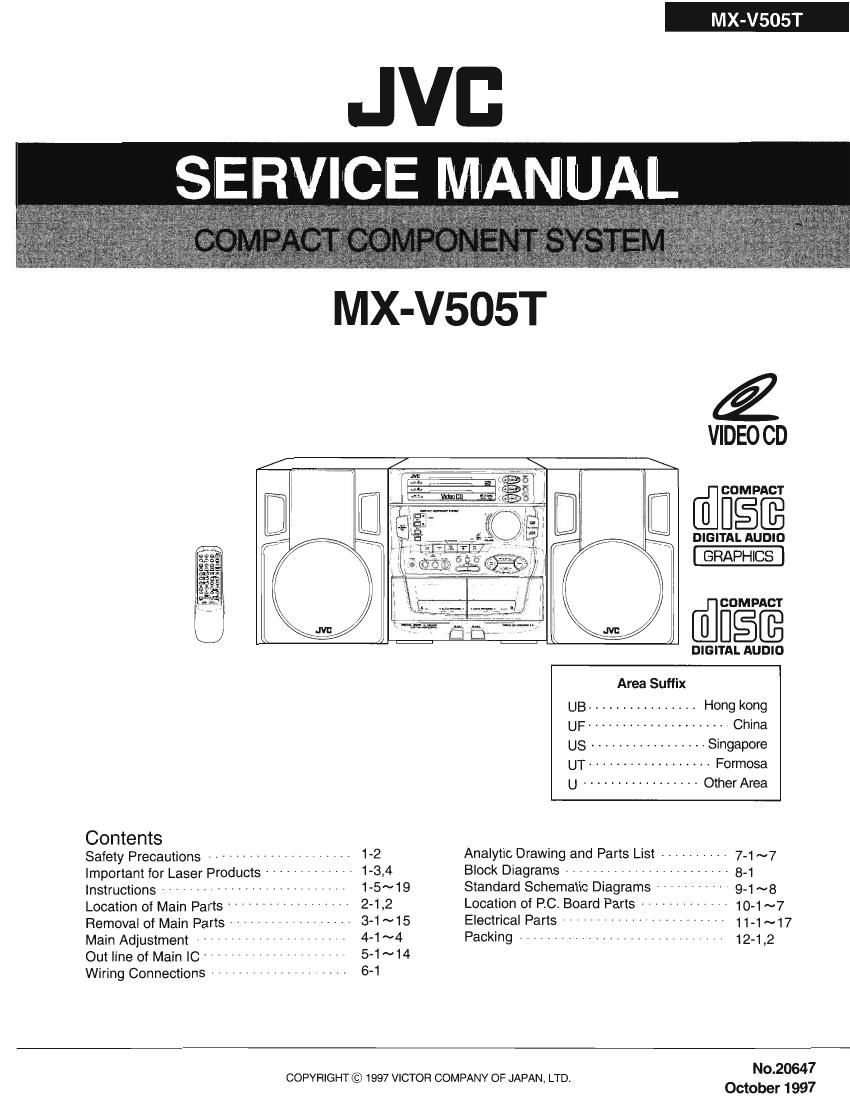

Jvc MXV 505 T Service Manual

Page 1

S

MX-V505T

Z

VIDEO CD

[fl USE
DIGITAL AUDIO
Egg: GRAPHICS
$3.:
a
WEE
DIGITAL AUDIO
Area Suffix
UB ................ Hong kong
UF .................... China
US ................. Singapore
UT .................. Formosa
U ................. Other Area
Contents
Safety Precautions ..................... 1.2 Analytic Drawing and Parts List ---------- 7-1~7
Important for Laser Products rrrrrrrrrrrrr 1-3,4 Block Diagrams ------------------------ 3.1
Instructions -------------------------- 1-5~19 Standard Schematic Diagrams , , , rrrrrr 9.1 ~3
Location of Main Parts ---------------- 2-1,2 Location 01 RC. Board Parts ------------- 10.1 ~7
Removal of Main parts .................. 3-1 ~15 Electrical Parts ---------------------- 1 1-1 ~17
Main Adjustment ---------------------- 4-1~4 Packing ---------------------------- 12-1,2
Out line of Main IC --------------------- 5-1~14
Wiring Connections ------------------- 61
No.20647

COPYRIGHT © 1997 VICTOR COMPANY OF JAPAN, LTD.

October 1997

Page 2

fl MX-V505T

-Safety Precautions

1.This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturers
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by (Q) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet , particularly any exposed
metal part having areturn path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

. Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,5009 10W resistor paralleled by
a 0.15uF AC-type capacitor between an exposed

AC VOLTMETER
metal part and a known good earth ground. E (Having1000
Measure the AC voltage across the resistor with the ohms/volts,

AC voltmeter. or more sensitivity)
Move the resistor connection to eachexposed metal °

part, particularly any exposed metal part having a o_15,u|= AC TYPE

return path to the chassis, and meausre the AC ,__ Place this
voltage across the resistor. Now, reverse the plug in probe on

the AC outlet and repeat each measurement. voltage WV V > each exposed
measured Any must not exceed 0.75 V AC (r.m.s.). 15009 10W metal part.

This corresponds to 0.5 mA AC (r.m.s.).
Good earth ground

- Warning

1.T his equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5. mains voltage selector is provided, check setting for local voltage.

A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

1-2

Page 41

MX-V505T

Main Adjustment

I Measurement Instruments Required for Adjustment
1. Low frequency oscillator
This oscillator should have a capacity to output 0 st to 600 ohme
at an oscillation frequency of 50Hz-20kHz.
2. Attenuator impedance : 600 ohme
3. Electronic voltmeter
4. Distortion meter
5. Frequency counter
6.Wow & Flutter meter
7, Test Tape
WT712 :Tape Speed & Wow flutter ( 3kHz )
VTT724 : Reference level ( 1kHz)
Vl'l'703L : Head azimuth ( 10kHz)
TMT 7036 : Playback frequency characteristics ( 63,1 k.10kHz )
8. Test Tape for Recording] playback
TYPE I :AC-225 ( Normal position ), TYPE II : AC-514( Chrome position )
9. Torque gauge : For playback tension
Foward (TW211A ), Reverse (TW2121A ), First toward & Rewind (TW2231A)

I Measurment Conditions
Source voltage : AC110/127/220/230 - 240V ( 50/60Hz )
Reference output : Speaker Ost ( 0.775V )/ 6 ohme, Headphone 20st (0.075V )/ 32 ohme or 33 ohme
Standard position of Function switches
Function switch :to AUX Active Bass switch : off
Standard position of Volume control
Sound Mode : Normal ( Flat), Main volume : Adjusting to 0st output
Standard test frequency '. 1 kHz unless otherwise specified
Reference input level : AUX 300mV ( -8st ), Mic :4.4mV (-45st)
Input for Recording/playback (Use forchecking & measuring): AUX 300mV (-8st)
Output for measuring :at speaker terminal ( Dummy load 6 ohme). TP101 measuring iorTuner/CD & Deck

I Tuner Section
Reference output : Measure at TP101
Feed signal :AM modulation frequency : 4OOHZ, modulation factor 30%
: FM modulation frequency : 400Hz, deviation 22.5kHz
Standard position of switches and controllers
No effect to volume / sound mode Active hyper bass due to measure at TP1 O1
Measure point : HOT / GND for FM (Antenna terminal )
'. MW/LW (Standard Loop antenna)
