Jvc MXJ 700 Service Manual

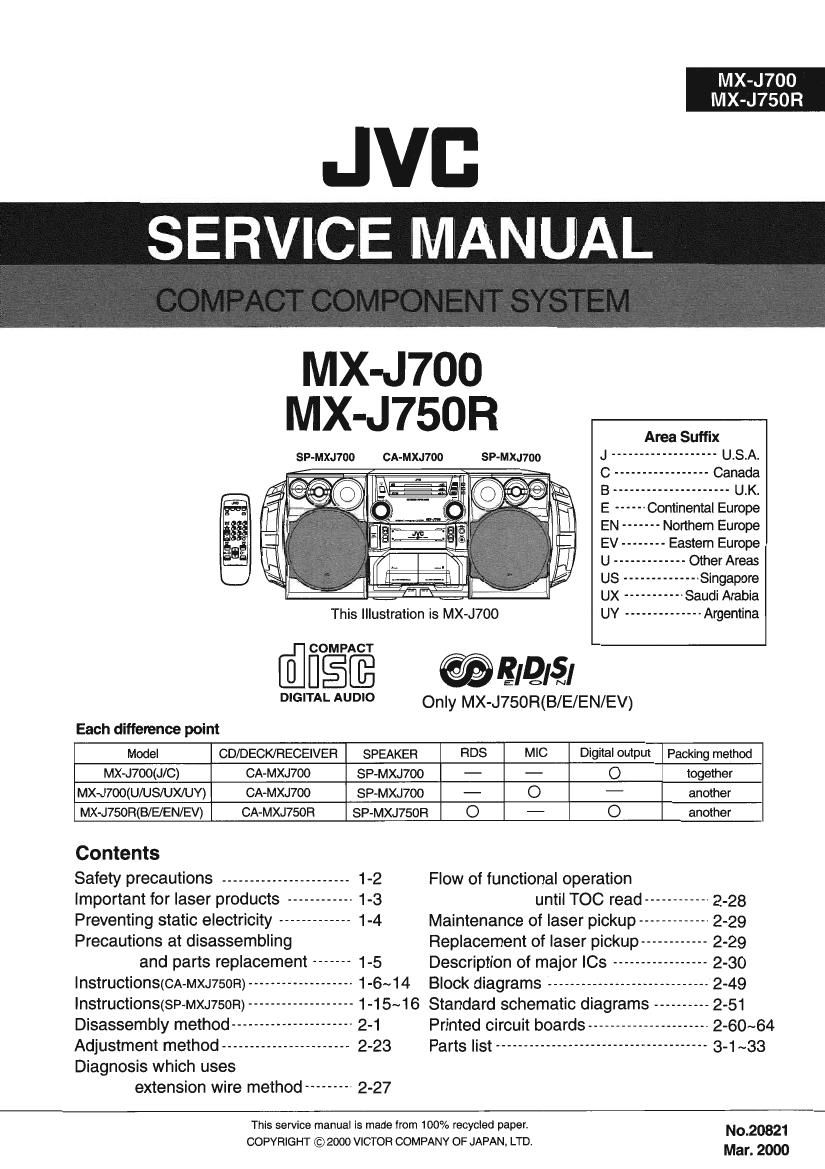

Page 1

NIX-J700
MX-J750R

JVE:
SERVICE MANUAL

MX-J700
MX-J750R

Area Suffix
SP-MXJ700 CA-MXJ7OO sp-mxnoo J ------------------- U.S.A.
_ C Canada
6 B --------------------- UK.
© 7 __ _ @ E ------ Continental Europe
_ 5 , '33 EN ------- Northem Europe
' L ' 5) EV -------- Eastern Europe
U ------------- Other Areas

l--- ---l US ------- Sin a ore
J-ii W l * i ux --------- Saudigteria
This Illustration is MX-J700 UY -------------- Argentina
@ COMPACT R D 5
USE @ ale/NI
"5 9'0 Only MX-J750R(B/E/EN/EV)
Each difference point
Model CD/DECK/RECEIVER SPEAKER RDS MIC Digital output Packing method
MX-J700(J/C) CA-MXJ700 SP-MXJ700 - - 0 together
MX-J700(U/US/UX/UY) CA-MXJ700 SP-MXJ7OO - O - another
MX-J750Ft(B/E/EN/EV) CA-MXJ75OFt SP-MXJ750R O - 0 another
Contents
Safety precautions ----------------------- 1-2 Flow of functional operation
Important for laser products ------------ 1-3 until TOC read ------------ 2-28
Preventing static electricity ------------- 1-4 Maintenance of laser pickup 2-29
Precautions at disassembling Replacement of laser pickup ------------ 2-29
and parts replacement ------- 1-5 Description of major ICs ----------------- 2-30
InstructionS(CA-MXJ750R) ------------------- 1 -6~14 Block diagrams ----------------------------- 2-49
Instruction3(sp-Mx0750R) 1-15~16 Standard schematic diagrams ---------- 2-51
Disassembly method ------- 2-1 Printed circuit boards -------------------- 2-60~64
Adjustment method ----------------------- 2-23 Parts list -------------------------------------- 3-1~33
Diagnosis which uses
extension wire method --------- 2-27
This service manual is made from 100% recycled paper. N 0.20821

COPYRIGHT 2000 VICTOR COMPANY OF JAPAN, LTD.
© Mar. 2000

Page 2

MX-J700 l

MX-J750R_l

-Safety Precautions

1.This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Sen/ices should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturers
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by (A) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage current check (Electrical shock hazard testing)
After re~assemb|ing the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet , particularly any exposed
metal part having a return path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

. Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,5009 10W resistor paralleled by
a 0.15uF AC-type capacitor between an exposed

metal part and a known good earth ground. féfiflgggm
Measure the AC voltage across the resistor with the 7 ohms/volts,

AC voltmeter. or more sensitivity)
Move the resistor connection to each exposed metal °

part, particularly any exposed metal part having a 0.15uF AC TYPE

return path to the chassts, and measure the AC _"_ Placethis
voltage across the resrstor. Now, reverse the plug in probe on
the AC outlet and repeat each measurement. Voltage WV each exposed
measured any must not exceed 0.75 V AC (r.m.s.). 15009 10W metal part.

This corresponds to 0.5 mA AC (r.m.s.).
Good earth ground

- Warning

1.This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5. If mains voltage selector is provided, check setting for local voltage.

A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of prefomiing repair of this system.
1-2

Page 27

lFlemoving the power & main amplifier
board (See Fig.30 and 31)

. Prior to performing the following procedure, remove
the metal cover, the CD changer mechanism
assembly, the rear cover , rear panel, the input /
output board , pre-amplifier board.

1. Remove the four screws A attaching the transf. on
the power & main amplifier board through the upper
side slots.

2. Remove the two plastic rivets fixing the power &
main amplifier board.

3. Remove the cord stopper by pushing it upward.
4. Cutoff the bands k and l fixing the power cord and

unsolder the soldered part on the power & main
amplifier board.

MX-J700/MX-J750R

Plastic rivet

Plastic rivet

Power & main
amplifier board

Power & main amplifier board
Soldered part

Band I
/ Band k
Cord stopper

Fig.31

2-1 1
