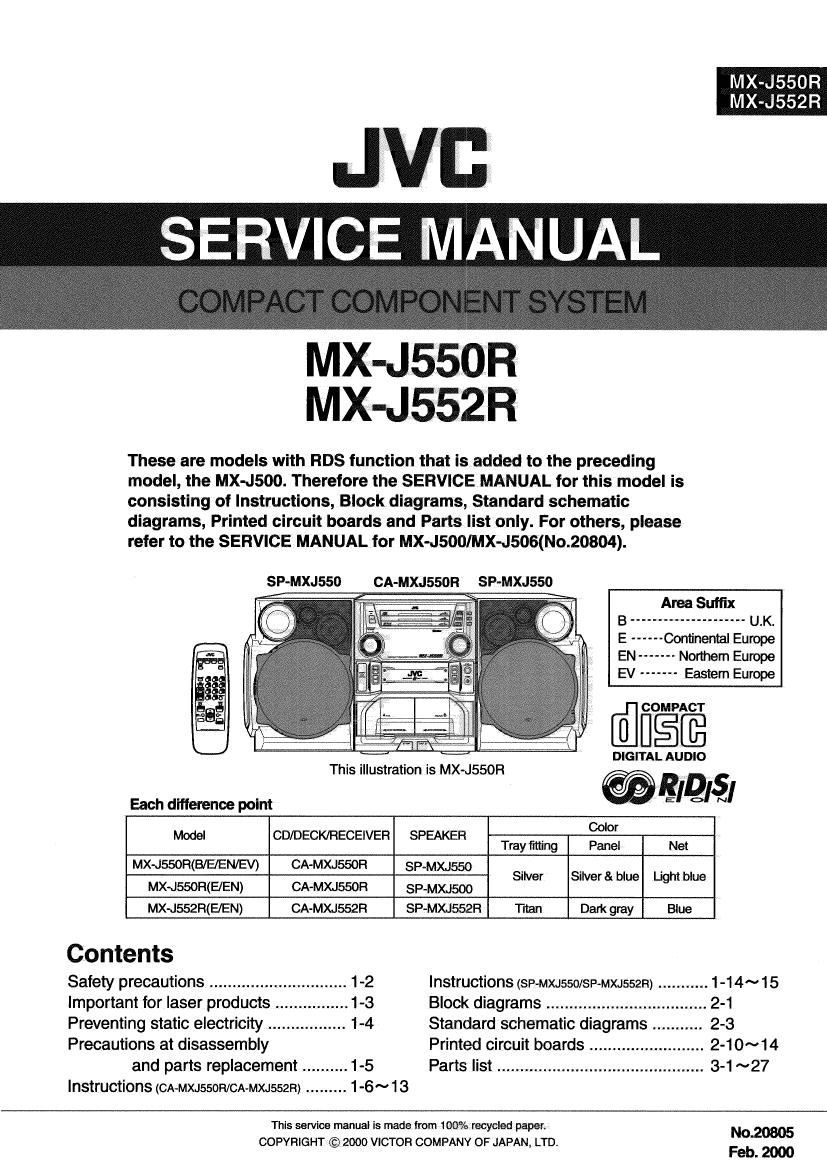

Jvc MXJ 552 R Service Manual

Page 1

MX-JSSOR
MX-J552R

_ SERVICE MANUAL

MX-J552R

These are models with RDS function that is added to the preceding
model, the MX-JSOO. Therefore the SERVICEMANUAL for this model is
consisting of Instructions, Block diagrams, Standard schematic
diagrams, Printed circuit boards and Parts list only. For others, please
refer to the SERVICE MANUAL tor MX-JSOOIMX-J506(No.20804).

SP-MXJ550 CA-MXJSSIDR SPi-MXJ550
,, Area Suffix

4 i; Q B --------------------- U.K.

E ------ Continental Europe

EN ------- Northern Europe
EV ------- Eastern Europe

-...~% Elise

\ " DIGITAL AUDIO
This illustration is MXd55OR

Each difference point @EIQIEI

Color
Model CD/DECK/RECEIVER SPEAKER Traymg Pane Net
MXMR MX-JSSOFKE/EN) CA-MXJ550R SP.MXJ500
MX-JSSZFKE/EN) CA-MXJ552R SP-MXJ552R Titan Dark gray Blue
Contents
Safety precautions .............................. 1 -2 Instructions (SP-MXJSSO/SP-MXJSfiZR) ........... 1 -14~ 1 5
Important for laser products 1-3 Block diagrams ............................... 2-1
Preventing static electricity ................. 1-4 Standard schematic diagrams ........... 2-3
Precautions at disassembly Printed circuit boards ......................... 2-10~14
and parts replacement .......... 1-5 Parts list ............................................. 3-1 ~27

Instructions (CA-MXJsson/CA-MXJsszn) ......... 1 -6~ 1 3

This service manual is maelstrom tamerecycled paper. 0.20805
COPVRIGHT ©2000 VICTOR COMPANY OF JAPAN. LTDt
Feb. 2000

Page 2

MX-J550R
MX-J552R

----Safety Precautions

1.This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made.- Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturers
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by (A) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage current check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester, measure
the leakage current from each exposed metal parts of the cabinet, particularly any exposed
metal part having areturn path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

.Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,500910W resistor paralleled by
a 0.15uF AC-type capacitor between an exposed

metal part and a known good earth ground. 4 zigayfingEgER
Measure the AC voltage across the resistor with the ohms/volts,

AC voltmeter. or more sensitivity)
Move the resistor connection to each exposed metal

part, particularly any exposed metal part having 3 Q1511]: ACTYPE

return path to the chassis, and measure the AC _____ Ham this
voltage across the resistor. Now, reverse the plug in probe on

the AC outlet and repeat each measurement. Voltage Wt: = each exposed
measured any must not exceed 0.75 V AC (r.m.s.). 15009 10W metal part.

This corresponds to 0.5 mA AC (r.m.s.).
Good earth ground

-Warnrng
1.This equipment has been designed and manufactured to meet international safety standards.

an is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3.Ftepairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved pans.

5. If mains voltage selector is provided, check setting for local voltage.

A CAU110N Burrsforrned, during molding may be leftoveron some partsofthe chassis. Therefore,
pay attention to such burrs ln tlncaseof preformlng mpatrofthis system;
1-2
