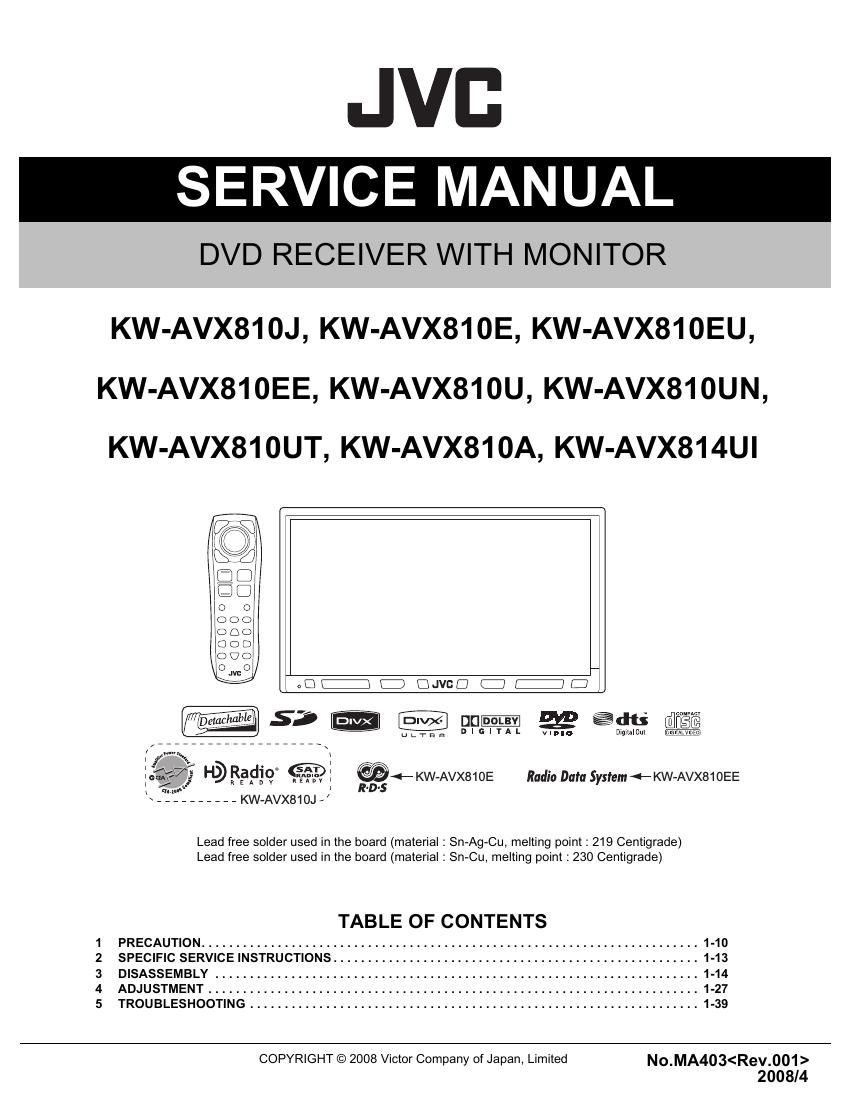

Jvc KWAVX 810 Service Manual

This is the 42 pages manual for Jvc KWAVX 810 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 42
left right
Jvc KWAVX 810 Service Manual

Extracted text from Jvc KWAVX 810 Service Manual (Ocr-read)

Page 1

1-2 (No.MA403) SPECIFICATION KW-AVX810/J Design and specifications are subject to change without notice.AMPLIFIER Power Output 20 W RMS × 4 Channels at 4 -„¦ and < or = 1% THD+N Signal-to-Noise Ratio 80 dBA (reference: 1 W into 4 -„¦) Load Impedance 4 -„¦ (4 -„¦ to 8 -„¦ allowance) Equalizer Control Range Frequencies 60 Hz 150 Hz 400 Hz 1 kHz 2.5 kHz 6.3 kHz 15 kHz Level ±10 dB Audio Output Level LINE OUT (FRONT REAR)SUBWOOFER Line-Out Level/Impedance 5 V/20 k-„¦ load (full scale) Output Impedance 1 k-„¦ Color System NTSC Video Output (composite) 1 Vp-p/75 -„¦ Other Terminals Input LINE IN VIDEO IN CAMERA IN USB input Antenna input Output VIDEO OUT Others CD changer OE REMOTE DIGITAL OUT (optical) FM/AM TUNER Frequency Range FM (with channel interval set to 100 kHz or 200 kHz) 87.5 MHz to 107.9 MHz FM (with channel interval set to 50 kHz) 87.5 MHz to 108.0 MHz AM (with channel interval set to 10 kHz) 530 kHz to 1 710 kHz AM (with channel interval set to 9 kHz) 531 kHz to 1 602 kHz FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 -„¦) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 -„¦) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB AM Tuner Sensitivity/Selectivity 20 µV/35 dB DVD/CD Signal Detection System Non-contact optical pickup (semiconductor laser) Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz VCD/CD 16 Hz to 20 000 Hz Dynamic Range 93 dB Signal-to-Noise Ratio 95 dB Wow and Flutter Less than measurable limit SD Compatible File System FAT 32/16/12 Capacity 8 Mbytes to 2 Gbytes Data Transfer Rate Maximum 10 Mbps USB USB Standards USB 2.0 Full Speed Data Transfer Rate Full Speed: Maximum 12 Mbytes Low Speed: Maximum 1.5 Mbytes Compatible Device Mass storage class Compatible File System FAT 32/16/12 Max. Current Less than 500 mA/5V MONITOR Screen Size 7 inch wide liquid crystal display Number of Pixel 336 960 pixels 480 × 3 (horizontal) × 234 (vertical) Drive Method TFT (Thin Film Transistor) active matrix format Color System NTSC/PAL Aspect Ratio 16 : 9 (wide) GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Storage Temperature -10 °C to +60°C (14°F to 140°F) Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D) With trim plate and sleeve at- tachedInstallation Size (approx.) 182 mm × 111 mm × 160 mm (7-3/16 × 4-3/8 × 6-5/16) Panel Size (approx.) 188 mm × 117 mm × 10 mm (7-7/16 × 4-5/8 × 7/16) Mass (approx.) 3.3 kg (7.3 lbs) (including trims and sleeve)

Page 2

(No.MA403)1-3 KW-AVX810/E/EU Design and specifications are subject to change without notice.AMPLIFIER Maximum Power Output Front/Rear 50 W per channel Continuous Power Output (RMS) Front/Rear 20 W per channel into 4 -„¦ 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance 4 -„¦ (4 -„¦ to 8 -„¦ allowance) Equalizer Control Range Frequencies 60 Hz 150 Hz 400 Hz 1 kHz 2.5 kHz 6.3 kHz 15 kHz Level ±10 dB Signal-to-Noise Ratio 70 dB Audio Output Level LINE OUT (FRONT REAR) SUBWOOFER Line-Out Level/Impedance 5 V/20 k -„¦ load (full scale) Output Impedance 1 k -„¦ Color System PAL Video Output (composite) 1 Vp-p/75 -„¦ Other Terminals Input LINE IN VIDEO IN CAMERA IN USB input Aerial input Output VIDEO OUT Others CD changer OE REMOTE DIGITAL OUT (optical) FM/AM TUNER Frequency Range FM 87.5 MHz to 108.0 MHz AM (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 -„¦) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 -„¦) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB MW Tuner Sensitivity/Selectivity 20 µV/35 dB LW Tuner Sensitivity 50 µV DVD/CD Signal Detection System Non-contact optical pickup (semiconductor laser) Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz VCD/CD 16 Hz to 20 000 Hz Dynamic Range 93 dB Signal-to-Noise Ratio 95 dB Wow and Flutter Less than measurable limit SD Compatible File System FAT 32/16/12 Capacity 8 Mbytes to 2 Gbytes Data Transfer Rate Maximum 10 Mbps USB USB Standards USB 2.0 Full Speed Data Transfer Rate Full Speed: Maximum 12 Mbytes Low Speed: Maximum 1.5 Mbytes Compatible Device Mass storage class Compatible File System FAT 32/16/12 Max. Current Less than 500 mA/5V MONITOR Screen Size 7 inch wide liquid crystal display Number of Pixel 336 960 pixels 480 × 3 (horizontal) × 234 (vertical) Drive Method TFT (Thin Film Transistor) active matrix format Color System NTSC/PAL Aspect Ratio 16 : 9 (wide) GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Storage Temperature -10 °C to +60°C Allowable Operating Temperature 0°C to +40°C Dimensions (W × H × D) With trim plate and sleeve at- tachedInstallation Size (approx.) 182 mm × 111 mm × 160 mm Panel Size (approx.) 188 mm × 117 mm × 10 mm Mass (approx.) 3.3 kg (including trims and sleeve)
