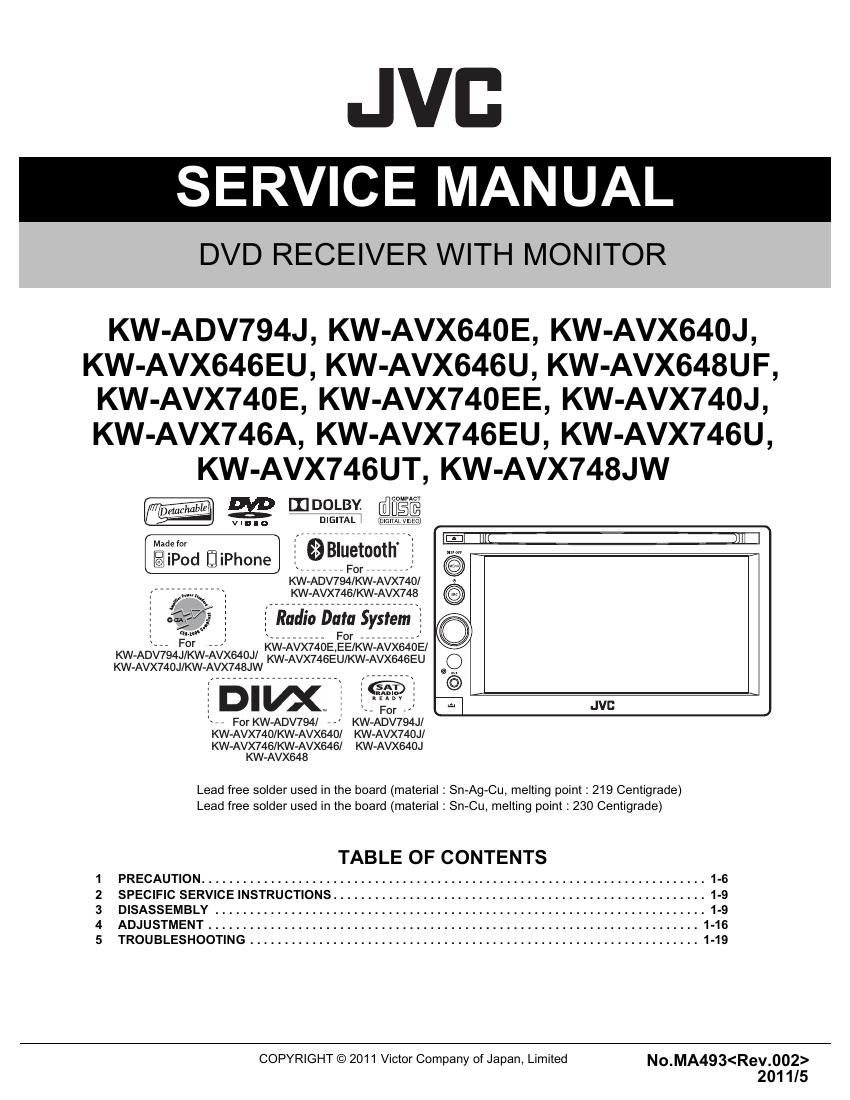

Jvc KWAVX 746 U Service Manual

This is the 22 pages manual for Jvc KWAVX 746 U Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 22
left right
Jvc KWAVX 746 U Service Manual

Extracted text from Jvc KWAVX 746 U Service Manual (Ocr-read)


Page 1

1-2 (No.MA493) SPECIFICATION *1 Only for KW-ADV794/KW-AVX748/KW-AVX740 *2 Only for KW-ADV794/KW-AVX740/KW-AVX640. Design and specifications are subject to change without notice. If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop. KW-ADV794J/KW-AVX748JW/KW-AVX740J/KW-AVX640J AMPLIFIER Power Output 20 W RMS × 4 Channels at 4 -„¦ and -‰¤ 1% THD+N Signal-to-Noise Ratio 80 dBA (reference: 1 W into 4 -„¦) Load Impedance 4 -„¦ (4 -„¦ to 8 -„¦ allowance) Equalizer Control Range Level ±12 dB Audio Output Level FRONT OUT, REAR OUT, SUBWOOFER OUT Line-Out Level/Impedance 4 V/20 k-„¦ load (full scale) Output Impedance 1 k-„¦ Video Output (composite) VIDEO OUTColor System PAL/NTSC Video-Out Level/Impedance 1 Vp-p/75-„¦ Other Terminals Input LINE IN, VIDEO IN, CAMERA IN, USB input, MIC IN*1, AUX, Antenna input Others Expansion port*2, OE REMOTE, RGB input FM/AM TUNER Frequency Range FM with channel interval set to 200 kHz 87.9 MHz to 107.9 MHz with channel interval set to 50 kHz 87.5 MHz to 108.0 MHz AM with channel interval set to 10 kHz 530 kHz to 1 700 kHz with channel interval set to 9 kHz 531 kHz to 1 611 kHz FM Tuner Usable Sensitivity 9.3 dBf (0.8 µV/75 -„¦) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 -„¦) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 40 dB AM Tuner Sensitivity/Selectivity 20 µV/40 dB DVD/CD Signal Detection System Non-contact optical pickup (semiconductor laser) Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz VCD/CD 16 Hz to 20 000 Hz Dynamic Range 93 dB Signal-to-Noise Ratio 95 dB Wow and Flutter Less than measurable limit USB USB Standards USB 2.0 Full Speed Data Transfer RateFull Speed Maximum 12 Mbps Low Speed Maximum 1.5 Mbps Compatible Device Mass storage class Compatible File System FAT 32/16/12 Max. Current DC 5 V 1A BLUETOOTH (Only for KW-ADV794/KW-AVX748/KW-AVX740) Version Bluetooth 2.0 certified Output Power +4 dBm Max. (Power class 2) Service Area Within 10 m (10.9 yd) ProfileHFP (Hands-Free Profile) 1.5 OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3 PBAP (Phone Book Access Profile) 1.0 MONITOR Screen Size 6.1 inch wide liquid crystal display Number of Pixel 1 152 000 pixels : 800 (horizontal) × 3 (RGB) × 480 (vertical) Drive Method TFT (Thin Film Transistor) active matrix format Color System NTSC/PAL Aspect Ratio 16:9 (wide) GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Storage Temperature -10°C to +60°C (14°F to 140°F) Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D) Installation Size (approx.) 182 mm × 111 mm × 160 mm (7-3/16 × 4-3/8 × 6-5/16) Panel Size (approx.) 188 mm × 117 mm × 10 mm (7-7/16 × 4-5/8 × 7/16) Mass (approx.) 2.3 kg (5.1 lbs) (including the Trim plate and Sleeve)

Page 2

(No.MA493)1-3 * Only for KW-AVX740,KW-AVX746 Design and specifications are subject to change without notice.KW-AVX740E/KW-AVX640E/KW-AVX746EU/KW-AVX646EU AMPLIFIER Maximum Power Output Front/Rear 50 W per channel Continuous Power Output (RMS) Front/Rear 20 W per channel into 4 -„¦, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance 4 -„¦ (4 -„¦ to 8 -„¦ allowance) Equalizer Control Range Level ±12 dB Signal-to-Noise Ratio 70 dB Audio Output Level FRONT OUT, REAR OUT, SUBWOOFER OUTLine-Out Level/Impedance4 V/20 k-„¦ load (full scale) Output Impedance1 k-„¦ Video Output (composite) VIDEO OUTColor System PAL/NTSC Video-Out Level/Impedance 1 Vp-p/75 -„¦ Other Terminals Input LINE IN, VIDEO IN, CAMERA IN, USB input, MIC IN*, AUX, Aerial input Others OE REMOTE, RGB input FM/AM TUNER Frequency Range FM 87.5 MHz to 108.0 MHz AM (MW) 531 kHz to 1 611 kHz (LW) 153 kHz to 279 kHz FM Tuner Usable Sensitivity 9.3 dBf (0.8 µV/75 -„¦) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 -„¦) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 40 dB MW Tuner Sensitivity/Selectivity 20 µV/40 dB LW Tuner Sensitivity 50 µV DVD/CD Signal Detection System Non-contact optical pickup (semiconductor laser) Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz VCD/CD 16 Hz to 20 000 Hz Dynamic Range 93 dB Signal-to-Noise Ratio 95 dB Wow and Flutter Less than measurable limit USB USB Standards USB 2.0 Full Speed Data Transfer Rate Full Speed Maximum 12 Mbps Low Speed Maximum 1.5 Mbps Compatible Device Mass storage class Compatible File System FAT 32/16/12 Max. Current DC 5 V 1A BLUETOOTH (Only for KW-AVX740A/KW-AVX746) Version Bluetooth 2.0 certified Output Power +4 dBm Max. (Power class 2) Service Area Within 10 m ProfileHFP (Hands-Free Profile) 1.5 OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3 PBAP (Phone Book Access Profile) 1.0 MONITOR Screen Size 6.1 inch wide liquid crystal display Number of Pixel 1 152 000 pixels : 800 (horizontal) × 3 (RGB) × 480 (vertical) Drive Method TFT (Thin Film Transistor) active matrix format Color System PAL/NTSC Aspect Ratio 16:9 (wide) GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Storage Temperature -10°C to +60°C Allowable Operating Temperature 0°C to +40°C Dimensions (W × H × D) Installation Size (approx.) 182 mm × 111 mm × 160 mm Panel Size (approx.) 188 mm × 117 mm × 10 mm Mass (approx.) 2.3 kg (including the Trim plate and Sleeve)

Page 13

1-14 (No.MA493)(2) Remove the two screws C attaching the Gear base assembly. (See Fig.10) Fig.10 3.2.5 Removing the Loading arm holder. (See Fig.11) (1) Remove the two screws D attaching the Loading arm holder. (2) Remove the Loading arm spring R. Fig.11 3.2.6 Removing the Loading moor assembly (See Fig.12) (1) Remove the three screws E attaching the Loading motor assembly. Fig.123.2.7 Removing the Slide cam assembly (See Fig.13) (1) Slide to backward the Slide cam assembly and the remove the Slide cam spring. (2) Slide to frontward the slide cam assembly, and then take out it. Fig.13 3.2.8 Removing the Photo board (See Fig.14) (1) Pressing the hook c and then slide to backward (slide to the arrow side) the Disc plate. (2) Remove the one screw F attaching the Photo board. Fig.14 3.2.9 Removing the Loading motor (See Fig.15 to 18) (1) Remove the A wheel gear. (See Fig.15) Fig.15 C D Loading arm spring R Loading arm holder E Slide cam assembly Slide cam spring hook c hook c F Photo board A Wheel gea r

Page 15

1-16 (No.MA493) SECTION 4 ADJUSTMENT 4.1 Service mode 4.2 Test instruments required for adjustment (1) Digital oscilloscope (100MHz) (2) Digital tester (3) Test Disc (4) Extension cable :EXTXD001-50PF (CN403 --- CN105)4.3 Standard measuring conditions Power supply voltage DC14.4V(10.5 to 16V) Load impedance 20K ohm (2 Speakers connection) Output Level Line out 2.5V (Vol. MAX) 4.4 Standard volume position Balance and Bass &Treble volume : lndication"0" Loudness : OFF 4.5 Dummy load Exclusive dummy load should be used for AM and FM. For FM dummy load, there is a loss of 6dB between SSG output and antenna input. The loss of 6dB need not be considered since direct reading of figures are applied in this working standard. 4.6 How to connect the extension cable for adjusting Caution: Be sure to attach the heat sink and rear bracket onto the power amplifier IC and regulator IC respectively, before supply the power. If voltage is applied without attaching these parts, the power amplifier IC and regulator IC will be destroyed by heat. CN105 CN403 EXTXD001-50PF
