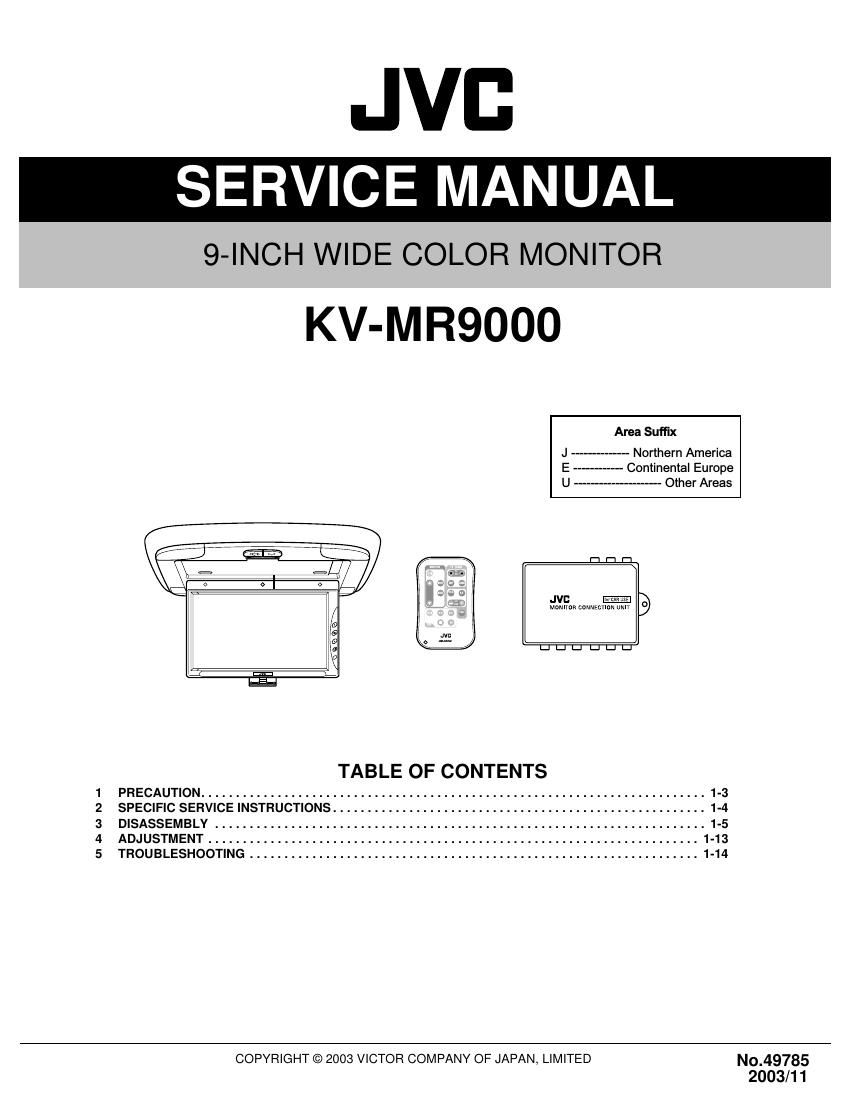

JVC
SERVICE MANUAL
9-INCH WIDE COLOR MONITOR
KV-M R9000
Area Suffix
J .............. Northern America
E --- -- Continental Europe
u ..................... Other Areas
mummy: cammcnzm um
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-4
3 DISASSEMBLY ....................................................................... 1-5
4 ADJUSTMENT ....................................................................... 1-13
5 TROUBLESHOOTING ................................................................. 1-14
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No_49785
2003/1 1
SPECIFICATION
WIDE COLOR MONITOR
Display
9 inch Liquid crystal panel
Number of Pixel
336,960 pixels (480 vertical x 234 horizontal x 3)
Drive Method
TFT (Thin Film Transistor) active matrix format
Cordless Audio Infrared audio transmitter (Support IR receiver stereo headphones)
L-channel 2.3 MHZ
R-channel 2.8 MHZ
Effective listening angle 30°
Effective range 4 m (13.1 ft)
Dimensions (W X H x D)
314mm x 38mm X 257mm (12-3/8" x 1-1/2"><10-1/8") including Shroud
Mass 1.2 kg (2.7 lbs) including Shroud
MONITOR CONNECTION UNIT
Input Video RCA pin x 2 circuits 1 V(p-p), 75 52 Audio RCA pin x 2 circuits 0.5 V(rms)
Tuner 8-pin DIN connector (only for JVC's KV-C10) Output
Display 13-pin DIN connector
Video RCA pin x 1 circuit 1 V(p-p), 75 0
Audio RCA pin ><1 circuit 1 0.5 V(rms)
Dimensions (W x H x D)
108.5mm x 28.5mm x 78mm (4-5/16" x 1-1/8" x 3-1/8") excluding projections
Mass
160 g (0.36 lbs)
GENERAL
Power Requirement
Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)
Allowable Storage Temperature -20°C to +80°C (-4°F to 176°F) Ceiling light bulb12V/3W
ACCESSORIES
Metal plate x1. Shroud x 1, Extension cord ><1. Power cord x 1, Ceiling light cord x 1, Remote
controller(with the battery) x 1, Screw(M4 >< 5mm)(M4 ><1/4)>< 4, Screw(M4 x12mm)(M4 ><1/2")>< 4
Design and specifications are subject to change without notice.
The liquid crystal panel is built with very high precision technology and has at least 99.99% precision technology and has at least
99.99% effective image pixels. Be aware that on 0.01% of the panel there may be missing pixels or constantly lit pixels.
