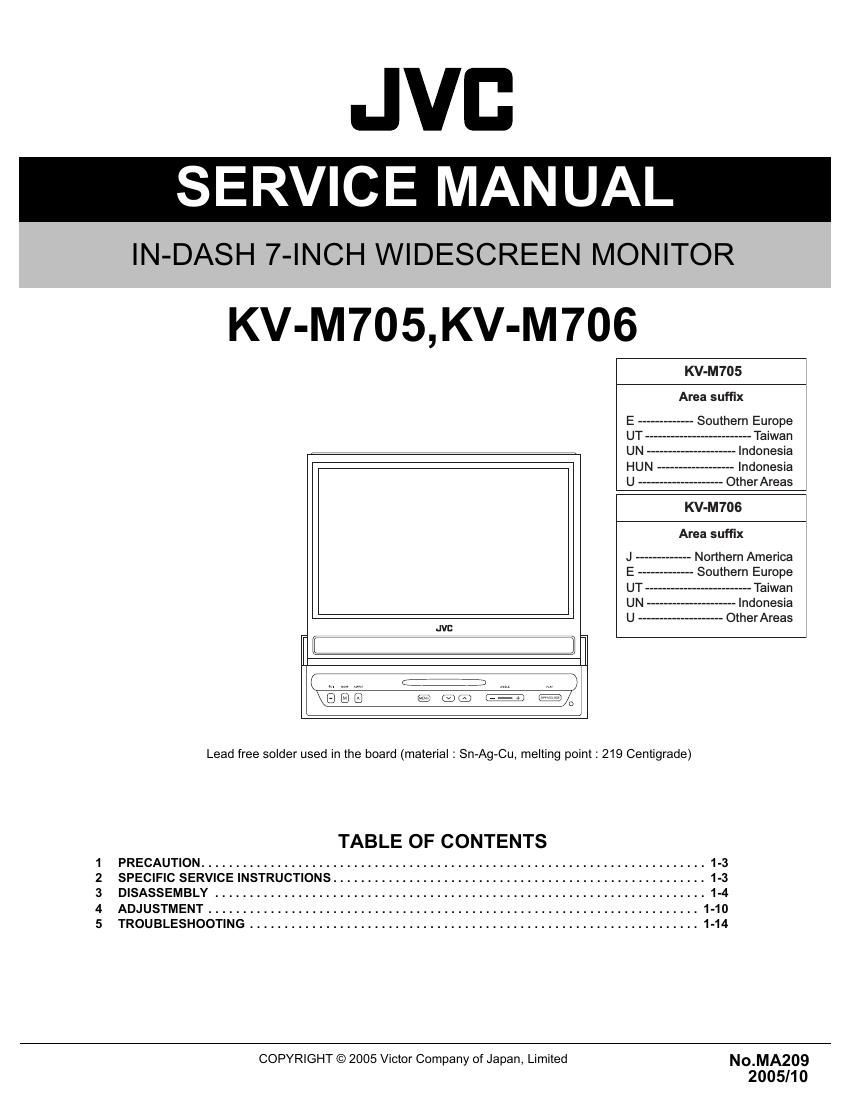

JVC
SERVICE MANUAL
lN-DASH 7-INCH WIDESCREEN MONITOR
KV-M705,KV-M706
KV-M705
Area suffix
. Southern Europe
-------------- Taiwan
Indonesia
-- Indonesia
-- OtherAreas
KV-M706
Area suffix
J ............. Northern America
- Southern Europe
--« Taiwan
lndonesia
OtherAreas
JVD
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
PRECAUTION ......................................................................... 1-3
SPECIFIC SERVICE INSTRUCTIONS . . ........................ 1-3
DISASSEMBLY ........................................... 1-4
ADJUSTMENT ...............
TROUBLESHOOTING .........
UIszN-L
COPYRIGHT © 2005 Victor Company of Japan, Limited No.MA209
2005/10
SPECIFICATION
Screen
7 inch liquid Clystal panel
Number of pixel
336 960 pixels (480 vertical X 234 horizontal X 3)
Drive method
TFT (Thin Film Transistor) active matrix format
Color system
NTSC/ PAL
Input Video RCA pin X 2 circuits 1 V(p-p), 75 0
Audio RCA pin X 2 circuits 1.5 V(rms)
Output Video RCA pin X 1 circuit 1 V(p-p), 75 £2
Audio RCA pin X 1 circuit 1.5 V(rms)
Other terminal
AV bus (AV BUS)
Power requirement
Operating voltage
DC 144 V (11 V to 16 V allowance)
Grounding system
Negative ground
Allowable operating temperature
0°C to +40°C (32°F to 104°F)
Allowable storage temperature
-1 0°C to +60°C (14°F to 140°F)
Dimensions (W X H X D)
installation size (approx)
With sleeve-mounting plate Type B (standard)
: 182 mm X 52 mm X 165 mm (7-3/16 in X 2-1/16 in. X 6-1/2 in)
With sleeve-mounting plate Type A
: 182 mm X 52 mm X 160 mm (7-3/16 in X 2-1/16 in. X 6-5/16 in)
Panel size (approx)
188 mm X 58 mm X 14 mm (7-7/16 in X 2-5/16 in, X 5/8 in.)
Mass (approx)
1.6 kg (3.6 lbs)
Design and specifications are subject to change without notice.
1-2 (NotMAZOQ)
