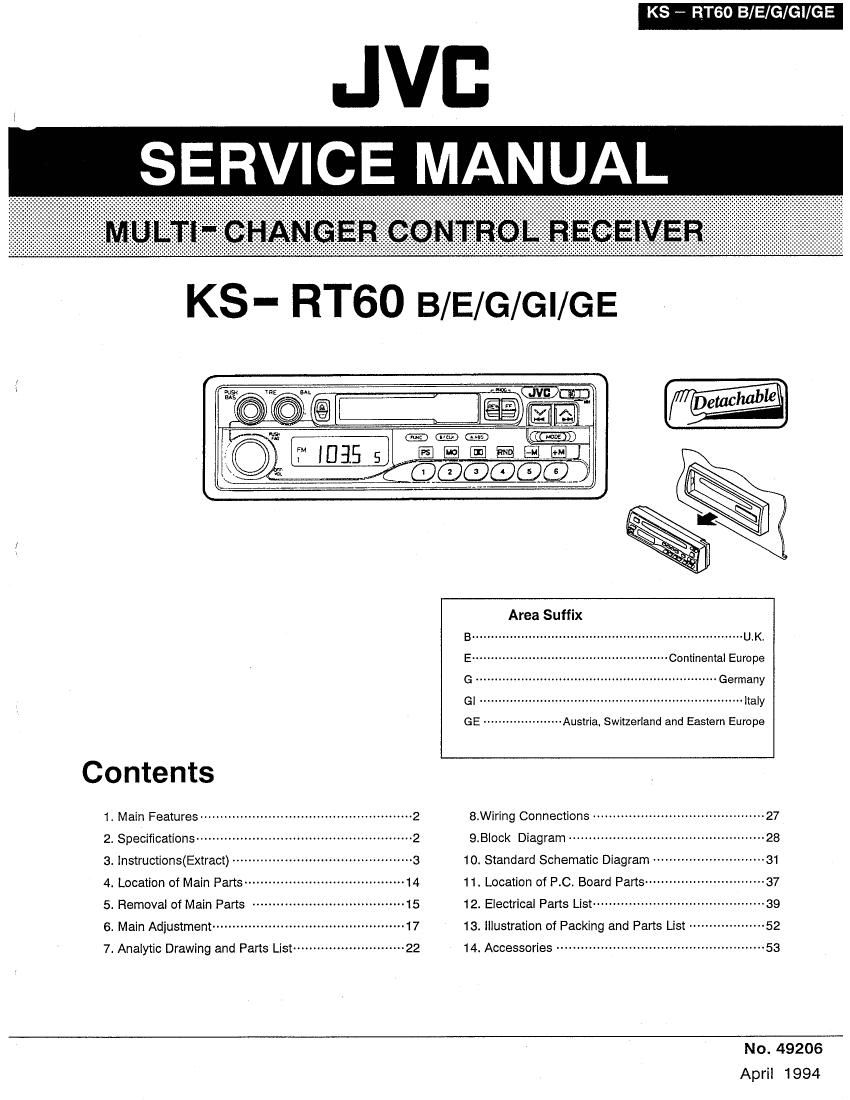

KS ~ RTGO B/E/G/GI/GE
JVB
SERVICE MANUAL
KS- RT6O B/E/G/Gl/GE
Area Suffix
B ........................................................................ U.K.
Continental Europe
G ................................................................ Germany
Gl ...................................................................... llaiy
GE --------------------- Austria, Switzerland and Eastern Europe
Contents
1' Main Features .................................................... 2 8'ering Connections ......................................... 27
2. Specifications ------------------------------------------------------ 2 9.Block Diagram ----------------------------------------- 28
3. lnstructions(Extract) 10. Standard Schematic Diagram ----- 31
4. Location of Main Paris --------------------------------------- 14 11. Location of P.C. Board Pans ----------------------------- 37
5. Removal of Main Pans ............................ 15 12. Electrical Parts List ........................................... 39
6. Main Adjustment ------------------------------------------------ 17 13. Illustration of Packing and Parts List ------------------- 52
7. Analytic Drawing and pans List ............................ 22 14' Accessories .................................................... 53
No. 49206
April 1994
KS-RTGO B/E/G/Gl/GE
1. Main Features
- Detachable Control Panel
0 Controller for the operation of CD changers
containing up to 108 compact discs (tor
example, when 6 JVC XL-MGlBOG CD
Changers are connected, each containing 3
magazines with 6 discs. consequently having
access of up to 108 discs)
0 High Sensitivity Tuner
0 AMIFM Stereo PLL Synthesizer Tuner
0 24-Station Preset Tuning (FM-18, AM
[MWILWJ-G)
o Preset Scan/Seek/Manual Tuning
0 SK/DK Traffic Information Reception (G/GE)
o U-Turn Auto-Reverse Mechanism
0 Ignition Key-off Release/Key-on Play
Mechanism
0 Doiby' B Noise Reduction
0 4rChanneI Amplifier System
0 Maximum Power Output of 22 watts per
channel (Front)l22 watts per channel (Rear)
0 Active Hyper-Bass Sound
0 Digital Clock Display
0* Line Output Terminal
'Dolby Noise Reduction manufactured under
license from Dolby Laboratories Licensing
Corporation. "Dolby" and the double-D symbol
DIJ are trademarks of Dolby Laboratories
Licensing Corporation.
2. Specifications
AUDIO AMPLIFIER SECTION CASSETTE DECK SECTION
Maximum Power Output: (Front) 22 W per channel Wow & Flutter 0.11% (WRMS)
(Rear) 22 W per channel Fast-Wind Tim . 100 sec. (6-60)
Continuous Power Output (HMS): (Front) 3 W per Frequency Response: 50 to 16,000 Hz (:3 as)
channel Into 4 0. 4D to 20,000 Hz at no more than Signal-fO-NOISB Ratio (Dolby NR-ONli 60 GB
0.8% total harmonic distortion. (Rear) 8 W per (Dolby NR-OFF): 52 dB
channel Into 4 n, 40 to 20,000 Hz at no more than Stereo Separation: 40 dB
0.8% total harmonic distortion.
Load Impedance: 4 0 (4 to 8 Q allowance)
Tone Control Range GENERAL _
Bass: :10 dB at 100 Hz Power Reqmrernent
Treble: 110 dB at 10 kHz Operating Voltage: Do 14.4 volts (it to 16 volts
Frequency Response: 40 to 20,000 Hz allowance) .
Signal-fo-Nolse Ratio: 70 dB Grounding System: Negative ground
Lineout Level/Impedance: 0.5 W20 kn load Dimensions (W x H x D) Installation Size:
(250 nWb/m) 178 x 50 x 151 mm (7-1/16" x 2" x 6")
Panel Size: 190 x 58 x 18 mm
RADIO SECTION (7-1] X 25/16" x 3/4")
Frequency Range Gross Weight: 2.1 kg (4.7 lbs)
FM: 87.5 to 108.0 MHz
AM: (MW) 522 to 1,620 kHz
(LW) 144 to 279 kHz Dsslgn and specifications subject to change without
[FM Tuner] notice.
Usable Sensitivity: 12.1 dB! ( 1.1 uV/75 n)
50 dB Quieting Sensitivity: 16.3 dBt (1 .B pV/75 9)
Alternate Channel Selectivity: (400 kHz): 65 dB
Frequency Response: 40 to 15.000 Hz
Stereo Separation: 30 dB
Capture Ratio: 1.5 dB
(MW Tuner]
Sensitivity: 20 uV
Selectivity: 35 dB
[LW Tuner]
Sensitivity: 50 av
2 (No. 49206)
