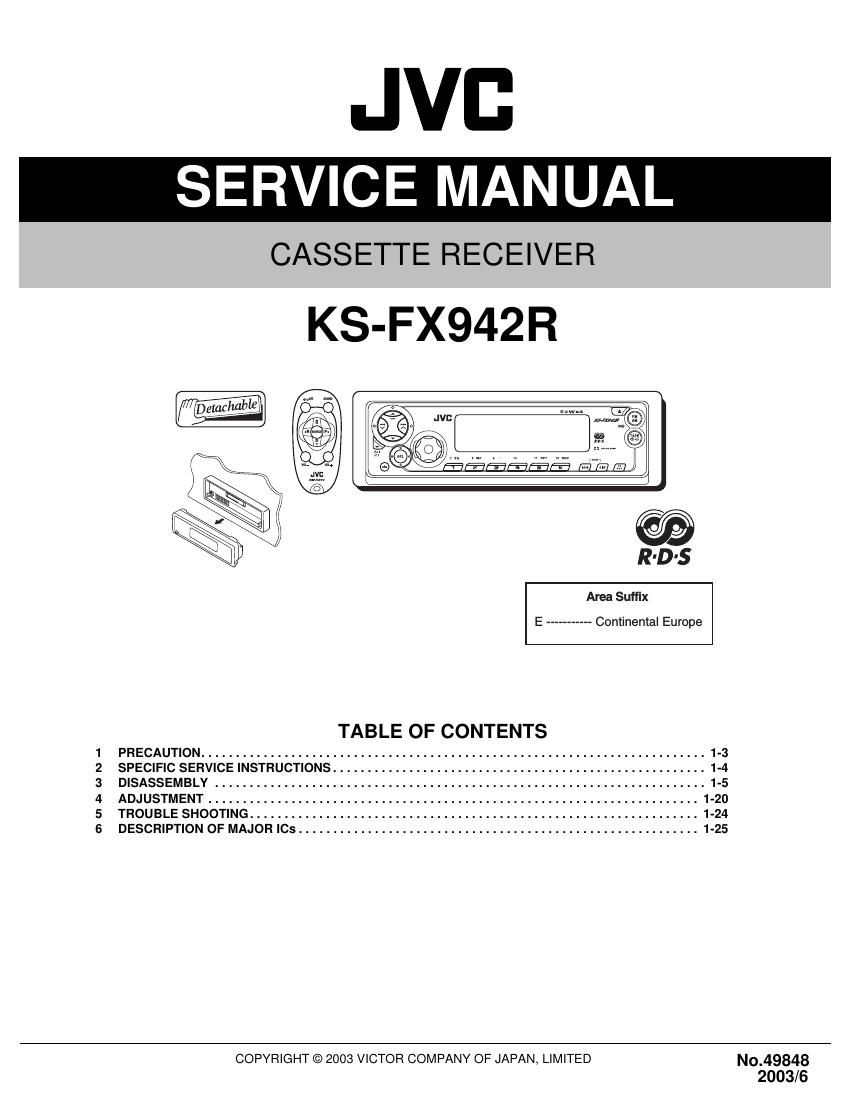

Page 1
JVC
SERVICE MANUAL
CASSETTE RECEIVER
KS-FX942R
Area Suffix
E ----------- Continental Europe
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . .... 1-4
3 DISASSEMBLY ................... .. . . 1-5
4 ADJUSTMENT .................. . . . 1-20
5 TROUBLE SHOOTING ............................................................. 1-24
6 DESCRIPTION OF MAJOR ICs .......................................................... 1-25
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.49848
2003/6
Page 2
3.2 Cassette mechanism assembly
REFERENCE:
Prior to performing the following procedures, turn the mode
gear on the bottom of the body until the respective part comes
to the EJECT position (Refer to Fig.1).
3.2.1 Removing the cassette guide
(See Fig.2)
(1) Turn the mode gear to set to RVS play or subsequent
mode.
(2) Remove the cassette guide from the main chassis while re-
leasing each two joint tabs a in the direction of the arrow.
3.2.2 Removing the load arm
(See Fig.3)
(1) Remove the E-washer attaching the load arm.
(2) Move the load arm in the direction of the arrow and release
the joint b on the cassette catch.
Load arm
Mode gear
(No.49848)1-9
