Jvc KSFX 925 R Service Manual
This is the 56 pages manual for Jvc KSFX 925 R Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 56
Extracted text from Jvc KSFX 925 R Service Manual (Ocr-read)

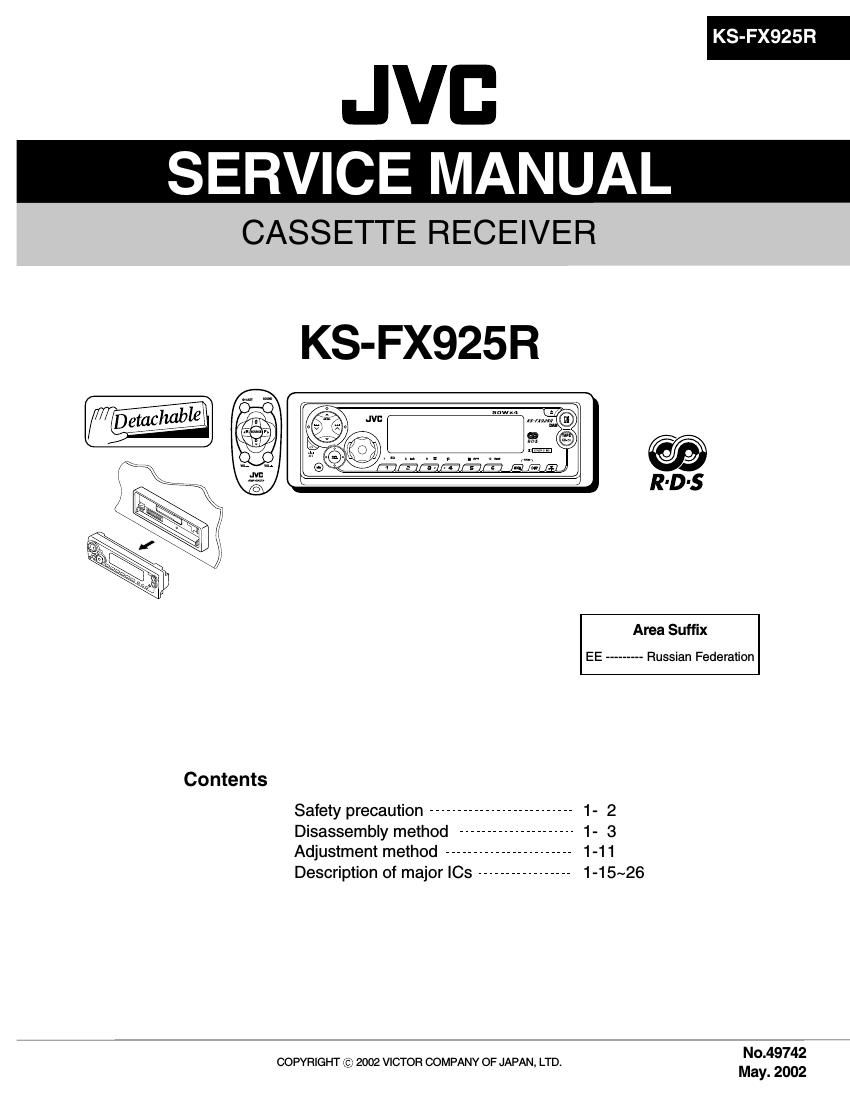

Page 1
W
.JVD
SERVICE MANUAL
CASSETTE RECEIVER
KS-FX925R
Area Suffix
EE --------- Russian Federation
Contents
Safety precaution -------------------------- 1- 2
Disassembly method --------------------- 1- 3
Adjustment method ----------------------- 1-11
Description of major ICs ----------------- 1-15~26
No.49742
COPYRIGHT (Q 2002 VICTOR COMPANY OF JAPAN, LTD.
May. 2002
Page 2
KS-FX925R
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
