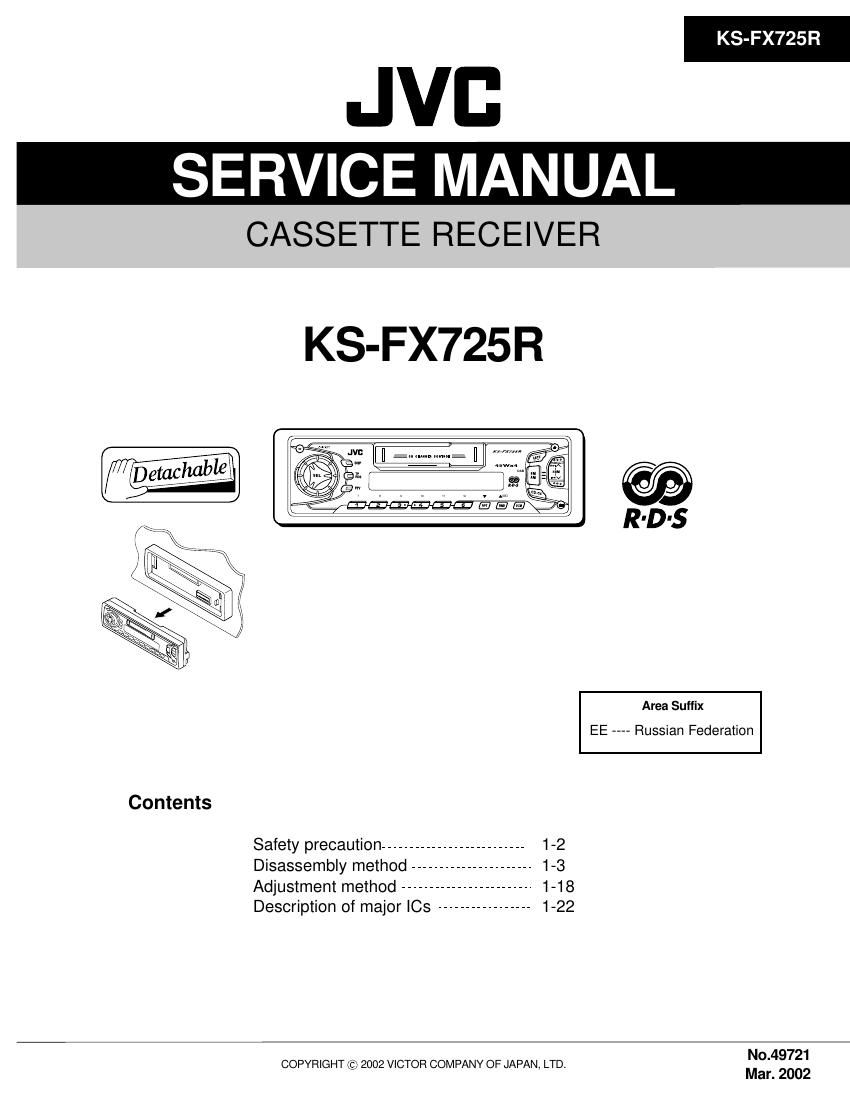

Extracted text from Jvc KSFX 725 R Service Manual (Ocr-read)
Page 1
1-2 KS-FX725R
! Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Safety precaution
Page 2
1-3 KS-FX725R
Press the eject button in the lower right part of the
front panel. Remove the front panel assembly from
the body. 1.
Removing the front panel assembly
(See Fig.1)
Prior to performing the following procedure, remove
the front panel assembly.
Release the four joints a on both sides of the front
chassis assembly and remove the front chassis
assembly toward the front. 1.
Removing the front chassis assembly
(See Fig.2 , 3)
Disassembly method
Fig.1
Fig.2
Fig.3
Front panel assembly
Eject button
Joint a
Joint a
Front chassis assembly
Front chassis
assembly Heat sink
Joint a
Joint a
Page 10
1-11 KS-FX725R
Remove the band attaching the wire to the head.
Remove the two screws D, the head and the head
support spring.
Remove the pinch arm spring from the tape guide.
Remove the tape guide and the pinch spring arm. 1.
2.
3.
4.
Removing the head / tape guide
(See Fig.18 and 19)
Remove the belt at the bottom.
Remove the two polywashers on the upper side.
Pull out each flywheel assembly downward. 1.
2.
3.
Removing the flywheel assembly (F) & (R)
(See Fig.20 and 21)
When reattaching the pinch arm spring, set
both end of it to the pinch spring arm (
remarked r). CAUTION:
When reattaching the head, set the wires
into the groove of the tape guide (Fig.18). CAUTION:
It is not necessary to remove the slide
chassis assembly. REFERENCE:
It is not necessary to remove the slide
chassis assembly. REFERENCE:
Fig.19
Fig.21 Fig.18
Fig.20
D
Slide chassis assembly
Head
Tape guide
D
Pinch arm spring
Head
Head support spring
Tape guide
Pinch spring arm
Slid chassis assembly
Flywheel assembly (F)
Flywheel assembly (R)Belt
Polywasher
Polywasher
Flywheel assembly (F)
Flywheel assembly (R) r
r
Page 28
1-29 KS-FX725R
LC75823E (IC651) : LCD Driver
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33S48
S47
S46
S45
S44
S43
S42
S41
S40
S39
S38
S37
S36
S35
S34
S33 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
S17
S18
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32DI
CL
CE
OSC
Vss
VDD2
VDD1
INH
VDD
COM3
COM2
COM1
S52
S51
S50
S49
1. Pin Layout & Symbol
2. Pin Function
Pin No.
1 to 52
53 to 55
56
57
58
59
60
61
62
63
64I/O
O
O
--
I
I
I
--
I/O
ISegment output pins used to display data transferred
by serial data input.
Common driver output pins. The frame frequency is given
by : t0=(fosc/384)Hz.
Power supply connection. Provide a voltage of between
4.5 and 6.0V.
Display turning off input pin.
INT="L" (Vss) ----- off (S1 to S52, COM1 to COM3="L"
INT="H" (VDD)----- on
Serial data can be transferred in display off mode.
Used for applying the LCD drive 2/3 bias voltage
externally.
Must be connected to VDD2 when a 1/2 bias drive scheme
is used.
Used for applying the LCD drive 1/3 bias voltage
externally.
Must be connected to VDD1 when a 1/2 bias drive scheme
is used.
Power supply connection. Connect to GND.
Oscillator connection.
An oscillator circuit is formed by connecting an external
resistor and capacitor at this pin.
Serial data CE : Chip enable
interface connection
to the controller. CL : Sync clock
DI : Transfer data Symbol
S1 to S52
COM1 to COM3
VDD
INH
VDDD1
VDD2
Vss
OSC
CE
CL
DIFunction
