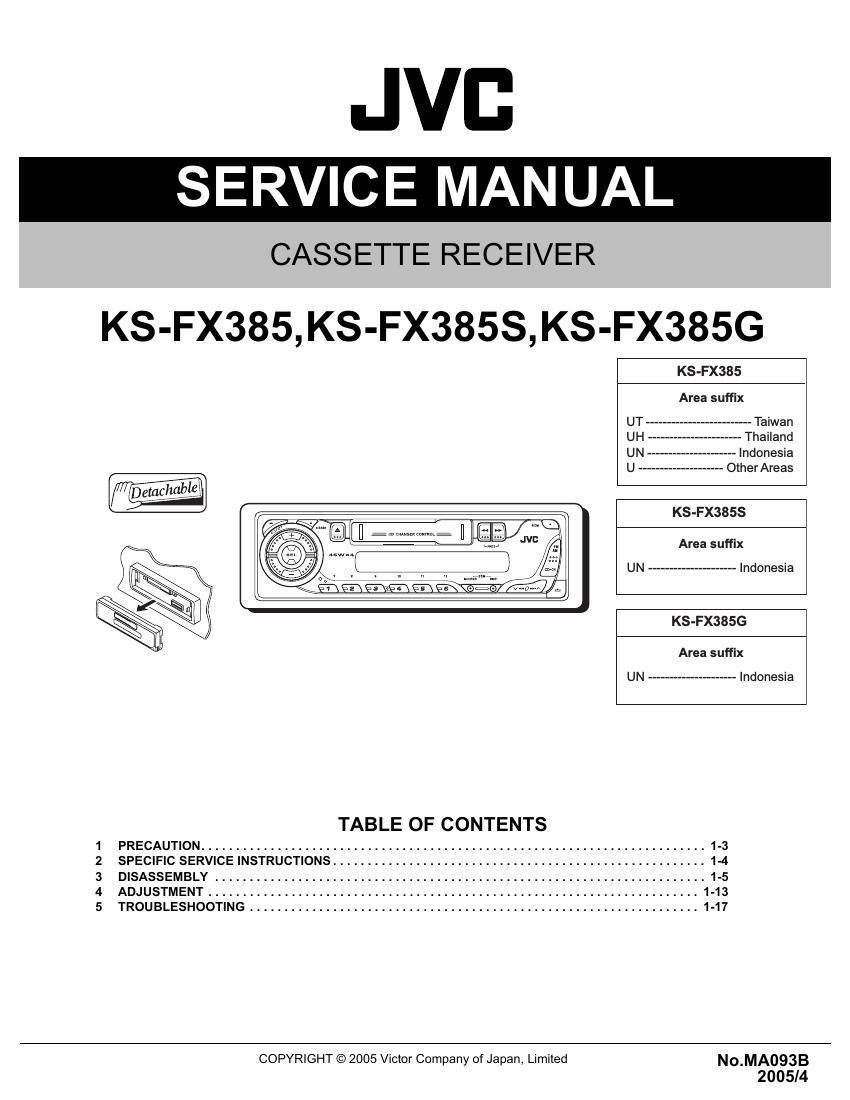

Jvc KSFX 385 Service Manual

Page 1

1-2 (No.MA093B) SPECIFICATION Design and specifications are subject to change without notice.AUDIO AMPLIFIER SECTION Maximum Power Output Front 45 W per channel Rear 45 W per channel Continuous Power Output (RMS) Front 17 W per channel into 4 -„¦, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear 17 W per channel into 4 -„¦, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Load Impedance 4 -„¦ (4 -„¦ to 8 -„¦ allowance) Tone Control Range Bass ±10 dB at 100 Hz Treble ±10 dB at 10 kHz Frequency Response 40 Hz to 20 000 Hz Signal-to-Noise Ratio 70 dB Line-Out Level/Impedance 2.0 V/20 k-„¦ load (250 nWb/m) TUNER SECTION Frequency Range FM 87.5 MHz to 108.0 MHz AM 531 kHz to 1 602 kHz FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 -„¦) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 -„¦) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB Capture Ratio 2.0 dB AM Tuner Sensitivity 20 µV Selectivity 35 dB CASSETTE DECK SECTION Wow & Flutter 0.15% (WRMS) Fast-Wind Time 190 sec. (C-60) Frequency Response 50 Hz to 14 000 Hz (Normal tape) Signal-to-Noise Ratio 52 dB Stereo Separation 40 dB GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 150 mm Panel Size (approx.) 188 mm × 58 mm × 11 mm Mass (approx.) 1.3 kg (excluding accessories)

Page 2

(No.MA093B)1-3 SECTION 1 PRECAUTION 1.1 Safety Precautions ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.
