KS-F500
JVB

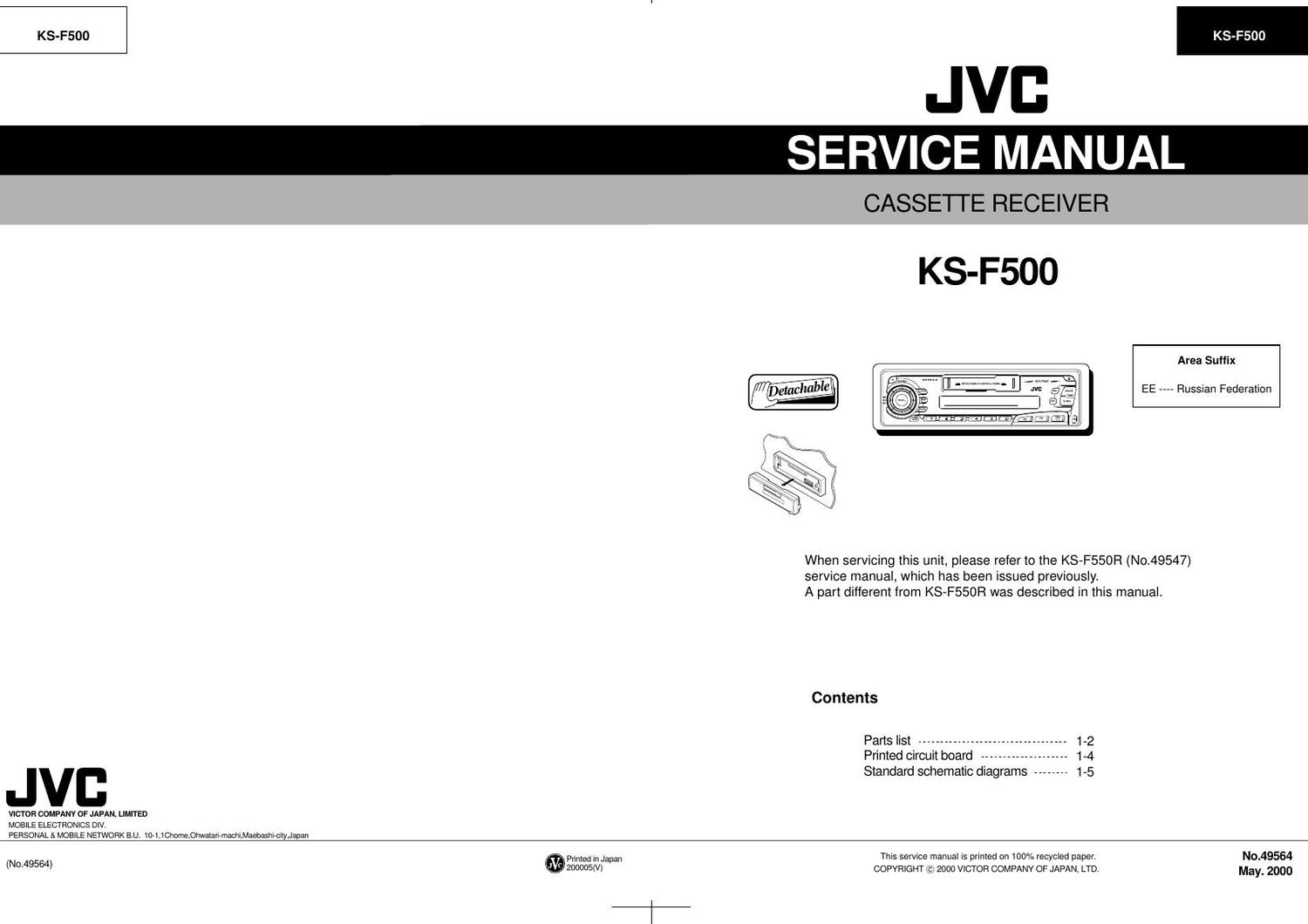

SERVICE MANUAL
CASSETI'E RECEIVER
KS-F500
Area Suffix
EE Russian Federation
When servicing this unit, please refer to the KS-F550R (No.49547)
service manual, which has been issued previously.
A part different from KS-FSSOR was described in this manual.
Contents
Parts list ..................................
1-2
Printed circuit board -------------------- 1-4
Ivc Standard schematic diagrams -------- 1-5
VICTOR COMPANY OF JAPAN, LIMITED
MOBILE ELECTRONICS DIV.
PERSONAL 8. MOBILE NETWORK B.U. 1071,1Chome,Ohwatanrmachi.Maebashlrcltydapan
(No.49564)
Printed in Japan This service manual is printed on 100% recycled paper.
200005(V)
No.49564
COPYRIGHT © 2000 VICTOR COMPANY OF JAPAN, LTD.
May. 2000
