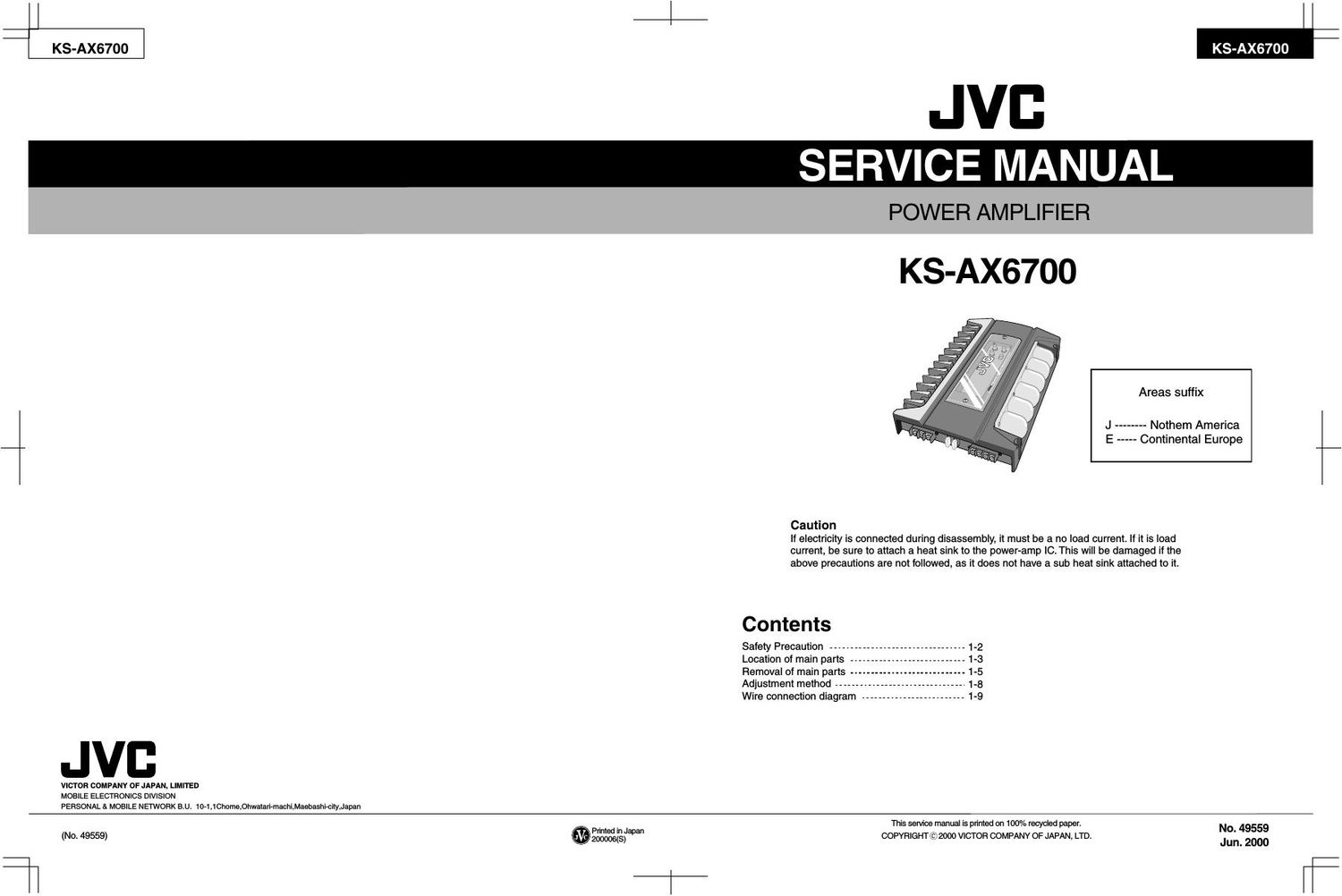

Jvc KSAX 6700 Service Manual

Extracted text from Jvc KSAX 6700 Service Manual (Ocr-read)

Page 1

KS-AX6700 1-2 Safety precaution ! CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.

Page 2

KS-AX6700 1-3 Location of main parts Volume knob Control panel Switch knob Heat sink Rear panel Input for power Fuse Output terminal Heat sink Front panel Low input(L) High input connector Heat sink Low input(R)
