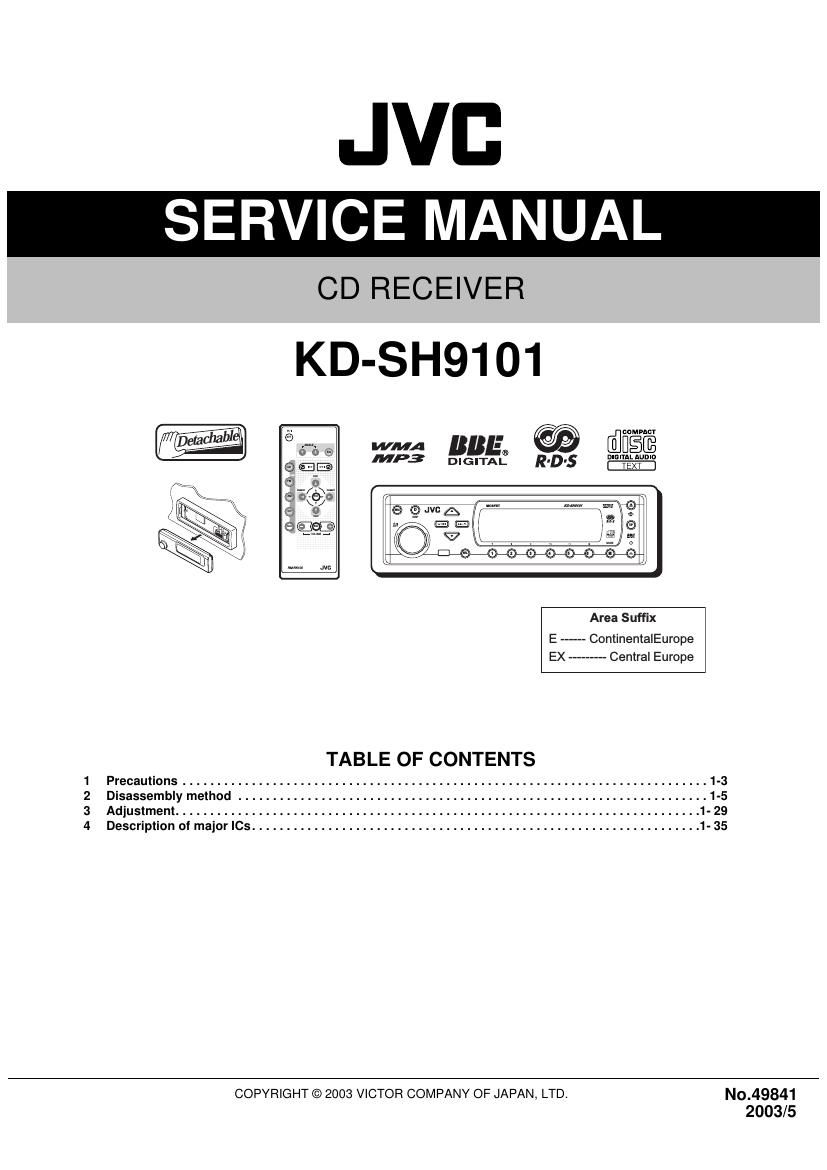

This is the 83 pages manual for Jvc KDSH 9101 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
SPECIFICATION
_ Front 50 W per channel
Ma>
Front 19 W per channel into 451. 40 HZ to 20 000 Hz at
Continuous power Output no more than 0.8% total harmonic distortion.
(RMS) Rear 19 w per channel into 4o, 40 Hz to 20 000 Hz at
no more than 0.8% total harmonic distortion.
AUDIO Load Impedance 49 (49 to 89 allowance)
QEAEIISIIER Equalizer Control Range Frequencies: 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
Level t10 dB
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-In Level/Impedance LINE IN 15 V/20 kQ load
Line-Out Level/Impedance 4.0 V/2O kn load (full scale)
Output Impedance 1 k0
FM 87.5 MHZ to 108.0 MHZ
Frequency Range AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
Usable Sensitivity 11.3 dBt (1 .0pV/759)
50 dB Quieting Sensitivity 16.3 dBf (1 .8pV/759)
Alternate Channel Selectivity
3:252»! [FM Tuner] (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
Capture Ratio 1.5 dB
Sensitivity 20 uV
[MW Tuner] . .
SelectIVIty 35 dB
[LW Tuner] Sensitivity 50 uV
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
CD PLAYER Dynamic Range 98 dB
SECTION Signal-to-Noise Ratio 102 dB
Wow and Flutter Less than measurable limit
mg: (gag: Audio Layer 3) 320 Kbps
. . (R) .
Xflvxnévtlligdeows Medla Audlo) 192 Kbps
Power Requirement Operating Voltage: DC 14.4 V(11 V to 16 V allowance)
Grounding System Negative ground
GENERAL $2?;p:$:u?§eratmg 0°C I0 +40%:
Dimensions (W x H x D) Installation Size: 182 mm x 52 mm x 161 mm
Panel Size 188 mm x 58 mm x 17 mm
Mass 1.8 kg (excluding accessories)
Design and specifications are subject to change without notice.
