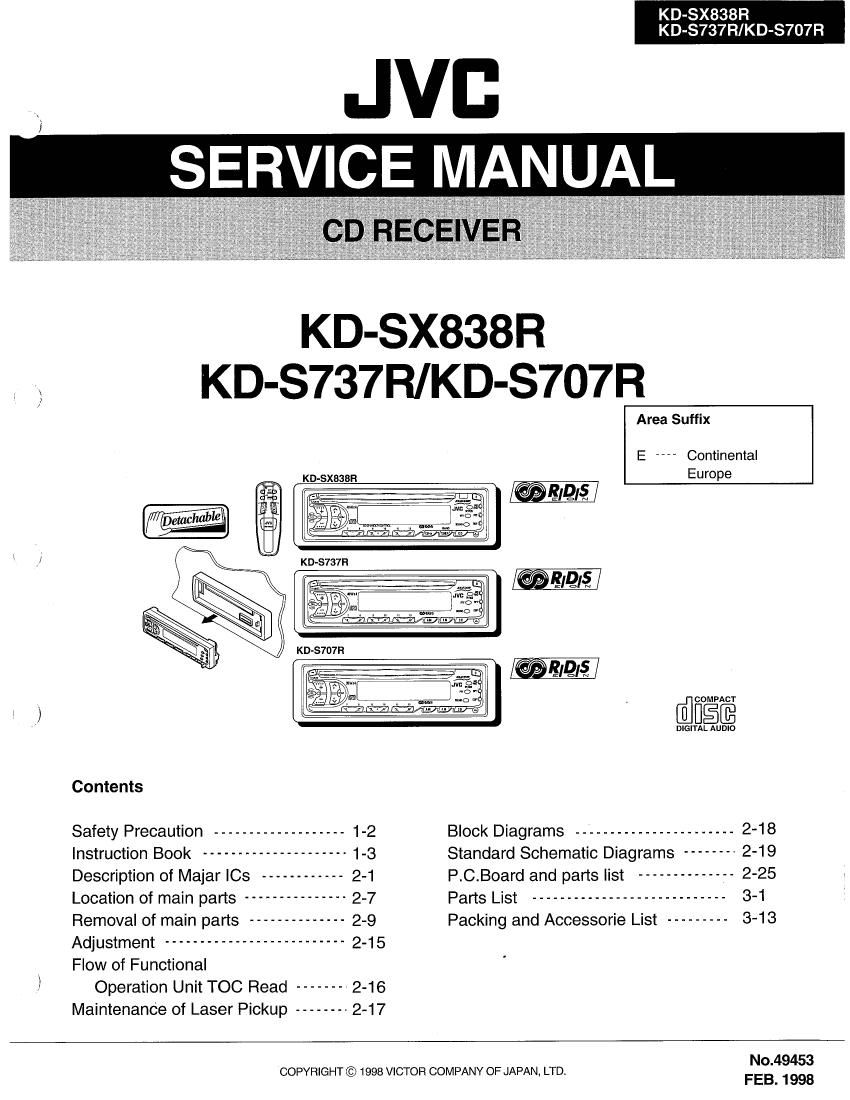

Page 1
KD-SX838R
KD-S737R/KD-S707R
JVB
SERVICE MANUAL
KD-SX838R
-\ KD-S737R/KD-S707R
Area Suffix
E Continental
KD~SX838R Europe
[@81915 /
l [I
[@EIQI-E/
[@8915 /
t COMPACT
,)
D|GITAL AUDIO
Contents
Safety Precaution ------------------- 1-2 Block Diagrams ----------------------- 2-18
Instruction Book --------------------- 1-3 Standard Schematic Diagrams -------- 2-19
Description of Majar ICs ------------ 2-1 P.C.Board and parts list -------------- 2-25
Location of main parts -------- - -- 2-7 Parts List - 3-1
Removal of main parts -------------- 2-9 Packing and Accessorie List --------- 3-13
Adjustment -------------------------- 2-15
\ Flow of Functional
} Operation Unit TOC Read ------- 2-16
Maintenande of Laser Pickup -------- 2-1 7
No.49453
COPYRIGHT © 1998 VICTOR COMPANY OF JAPAN, LTD.
FEB. 1 998
Page 2
KD-SX838R
KD-S737R/KD-S707R
Safety Precaution
A CAUflON Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs when preforming repairs of this system.
A CAU'nON Please use enough caution to avoid direct exposure to the beam directly or touch it in
case of an adjustment or operation check.
\/
