KD - 65550 cm .;
JVI'J

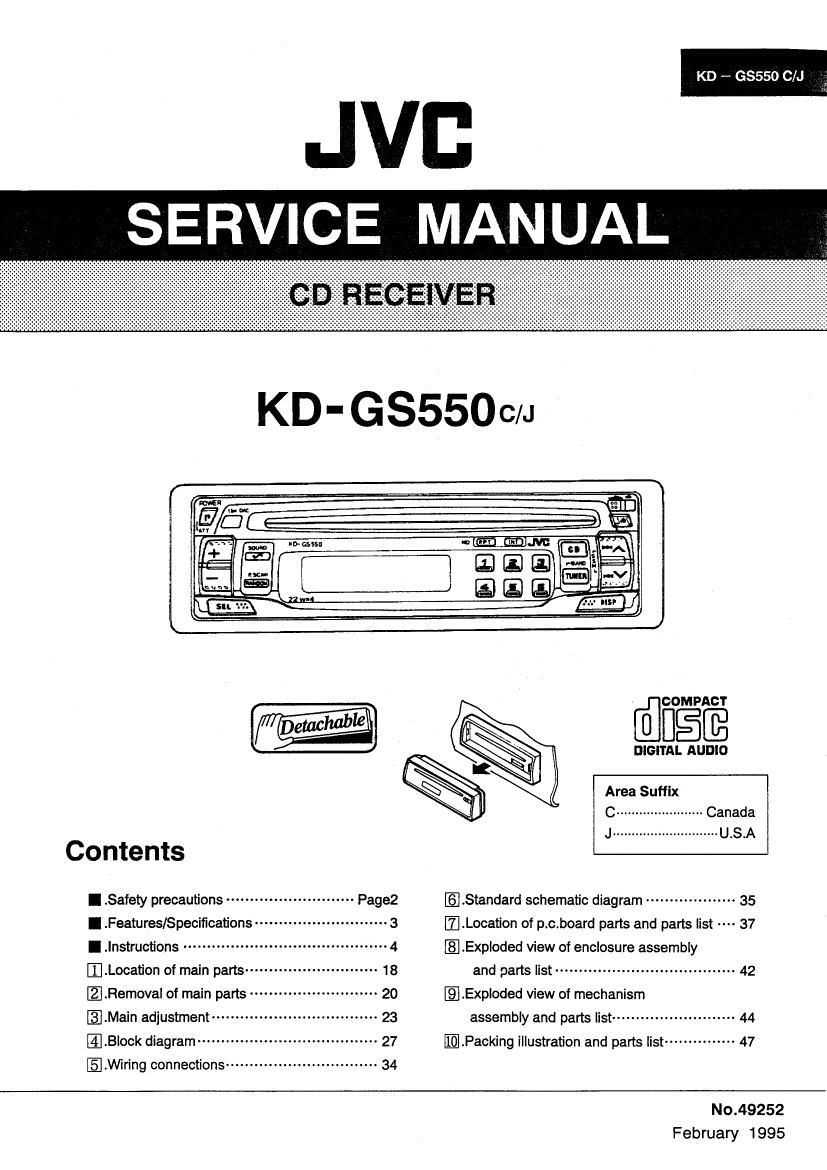

SERVICE MANUAL
KD- G355OC/J
@figé
DIGITAL AUDIO
Area Suffix
----- Canada
----- U.S.A
Contents
I .Safety precautions ........................... pagez IEStandard schematic diagram ................... 35
I Features/Specifications ---------------------------- 3 ..Location of p.c.board parts and parts list 37
I .lnstrucfions ------ {E .Exploded view of enclosure assembly
[Location of main parts ............................ 18 and parts fist ...................................... 42
@.Removal of main parts ------------------------ 20 E .Exploded view of mechanism
lMain adjustment ................................... 23 assembly and parts list .......................... 44
[Block diagram ...................................... 27 [Packing illustration and parts fist ............... 47
[:5].Wiring connections ................................ 34
No.49252
February 1995
I KD - GSSSOC/J
l-
( FEATURES (SPECIFICATIONS
o Detachable Control Panel
0 Voice Support System
(Kc-essso only)
I "Direct-in" disc loading system
0 Direct Access Play/Skip Play/Search
Play/Repeat Play/Random Play/Intro Play
0 AMIFM Stereo PLL Synthesizer Tuner
0 24-Stetion Preset Tuning (FM-18, AM-S)
o Preset Scan/SeeklManual Tuning
0 4-Cl'IanneI Amplifier System
I Maximum Power Output of 22 watts per
channel (Front)/22 watts per channel (Rear)
0 One Touch Operation
0 Sound Control Memory
0 Digital Clock Display
0 Line Output Terminal
CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical pickup
(semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 to 20.000 Hz
Dynamic Range: 95 dB
Signal-to-Noise Ratio: 97 dB
Wow 8t Flutter: Less than measurable limit
AUDIO AMPLIFIER SECTION
Maximum Power Output: (Front) 22 watts per channel
(Rear) 22 watts per channel
Continuous Power Output (RMS): (Front) 8 watts per
channel into 4 n, 40 to 20,000 Hz at no more than
013% total harmonic distortion. (Rear) 8 watts per
channel into 4 Q, 40 to 20.000 141 at no more than
0.8% total harmonic distortion,
Load Impedance: 4 Q (4 to 8 n allowance)
Tone Control Range
Bass: ill) 63 at 100 H:
Treble: :10 dB at 10 kHz
Frequency Response: 40 to 20,000 Hz
Signal-to-Noise Ratio: 70 dB
Line~0ut Level: 1.5 V/20 kn load (Full scale)
Output Impedance: 1 kn
RADIO SECTION
Frequency Range
FM: 87.5 to 107.9 MHz
(with channel Interval set to 200 kHz)
87.5 to 108.0 MHZ
(with channel interval set to 50 kHz)
AM:530101,710 kHz
(with channel interval set to 10 kHz)
531 to 1.602 kHz
(with channel interval set to 9 kHz)
[FM Tuner]
Usable Sensitivity: 11.3 dB!( 1.0 uV/75 (2)
50 dB Quieting Sensitivity: 16.3 dBl (1.8 pV/75 n)
Alternate Channel Selectivity: (400 kHz): 65 dB
Frequency Response: 40 to 15,000 Hz
Stereo Separation: 35 dB
Capture Ratio: 1.5 dB
[AM Tuner]
Sensiti y: 20 (IV
SelectiVIty: 35 dB
GENERAL
Power Requirement
Operating Voltage: DC 14.4 volts (11 to 16 volts
allowance)
Grounding System: Negative ground
Dimensions (w x H x D) Installation Size: 182 x 52 x
159 mm (7-3/16" x 2-1/16" x 55/16")
Panel size: 189 X 58 x14 mm (7-1/2" X2-5/16"x
5/8")
Gross Weight: 1.9 kg (4.2 lbs)
Design and spedlicalions subject to change without
notice.
(No. 49252) 3
