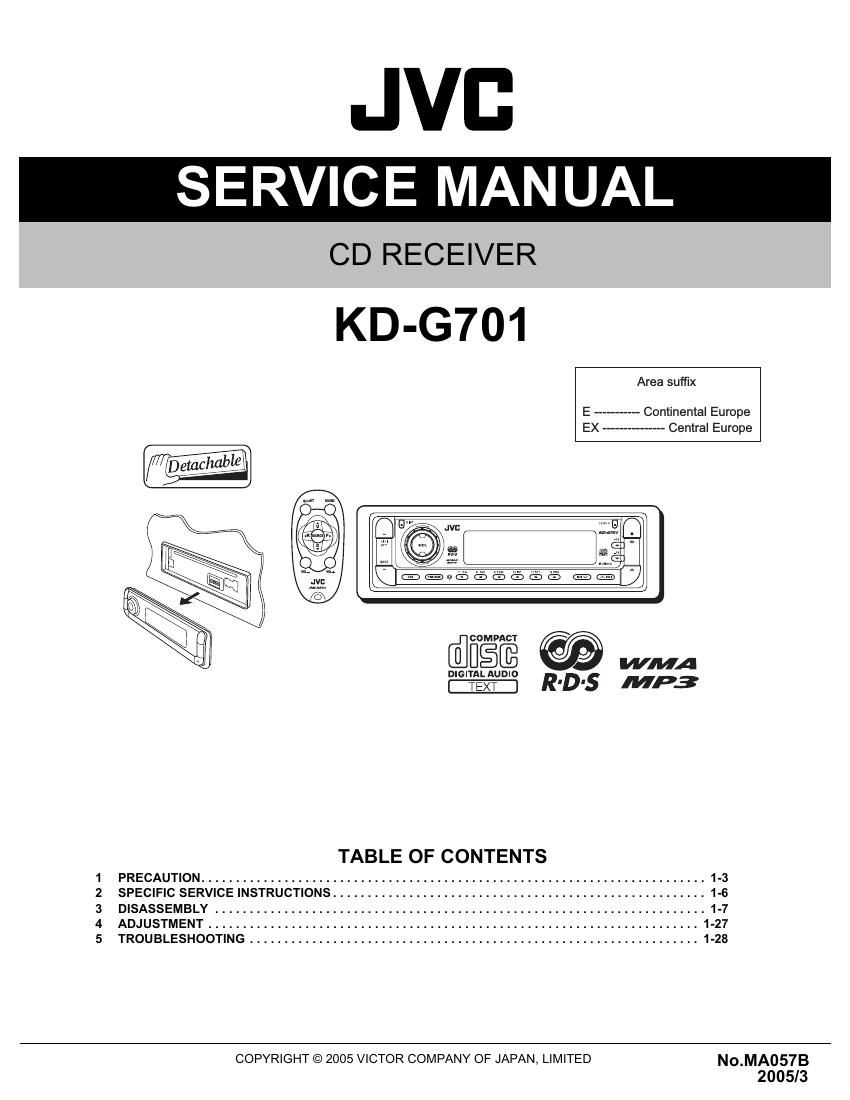

JVC
SERVICE MANUAL
CD RECEIVER
KD-G701
Area suffix
E ........... Continental Europe
EX _..........--- Central Europe
@figé @ Wm.
DIGITIVAELXATUDIO R'D's MP3
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-6
3 DISASSEMBLY ....................................................................... 1-7
4 ADJUSTMENT ....................................................................... 1-27
5 TROUBLESHOOTING ................................................................. 1-28
COPYRIGHT © 2005 VICTOR COMPANY OF JAPAN, LIMITED No.MA057B
2005/3
SPECIFICATION
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 Q (4 £2 to 8 Q allowance)
Equalizer Control Range Low :12 dB (60 Hz, 80 Hz, 100 Hz, 120 Hz)
Mid :12 dB
High :12 dB (8 kHz, 10 kHz, 12 kHz, 15 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.0 V/20 k0 load (full scale)
Output Impedance 1 k0
TUNER SECTION
Frequency Range FM 875 MHZ to 108.0 MHZ
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 uV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf(1.8 uV/75 (2)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
Capture Ratio 1.5 dB
[MW Tuner] Sensitivity 20 uV
Selectivity 35 dB
[LW Tuner] Sensitivity 50 uV
CD PLAYER SECTION
Type Compact disc player
Signal Detection System
Non-contact optical pickup (semiconductor laser)
Number of channels
2 channels (stereo)
Frequency Response
5 HZ to 20 000 HZ
Dynamic Range
96 dB
Signal-to-Noise Ratio
98 dB
Wow and Flutter
Less than measurable limit
MP3 decoding format
MPEG1/2 Audio Layer 3 Max. Bit Ratez320 Kbps
WMA (Windows Media Audio) decoding format
Max. Bit Rate:192 Kbps
GENERAL
Power Requirement I
Operating Voltage
DC 144 V (11 V to 16 V allowance)
Grounding System:
Negative ground
Allowable Operating Temperature
0°C to +40°C
Dimensions (W x H x D)
Installation Size (approx)
182 mm><52 mm>< 159 mm
Panel Size (approx)
188mm><58mm><12 mm
Mass (approx)
1.5 kg (excluding accessories)
Design and specifications are subject to change without notice.
1-2 (No.MA057B)
