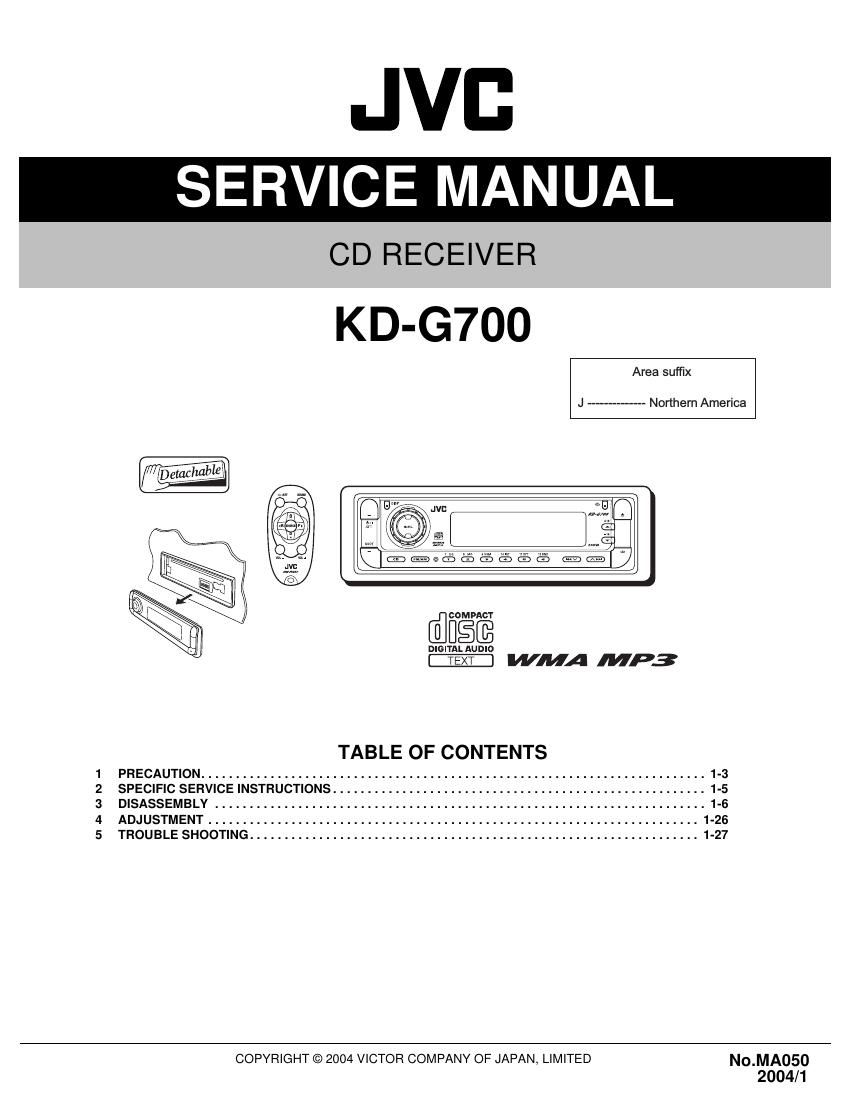

JVC
SERVICE MANUAL
CD RECEIVER
KD-G700
Area suffix
J __._____._w... Northern America
60 M PACT
@353
DIGITAL AUDIO
WMA MP3
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
3 DISASSEMBLY ....................................................................... 1-6
4 ADJUSTMENT ....................................................................... 1-26
5 TROUBLE SHOOTING ................................................................. 1-27
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED N0_MA050
2004/1
SPECIFICATION
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 £2 (4 £2 to 8 £2 allowance)
Equalizer Control Range Low t12 dB (60 Hz, 80 Hz, 100 Hz, 120 Hz)
Mid :12 dB
High t12 dB (8 kHz, 10 kHz, 12 kHz, 15 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-In Level/Impedance KD-AR800 1.5 V/20 k0 load
Line-Out Level/Impedance KD-AR800 5.0 V/20 k0 load (full scale)
KD-GBOO 4.0 V/20 k0 load (full scale)
KD-G700 2.5 V/20 k0 load (full scale)
Output Impedance
1kQ
Subwoofer-Out Level/Impedance KD-AR800/KD-G800
2.0 V/20 k0 load (full scale)
TUNER SECTION
Frequency Range FM 87.5 MHz to 107.9 MHz
AM 530 kHz to 1 710 kHz
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 uV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 uV/75 51)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
[AM Tuner] Sensitivity 20 (N
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System
Non-contact optical pickup (semiconductor laser)
Number of channels
2 channels (stereo)
Frequency Response
5 HZ to 20 000 HZ
Dynamic Range
96 dB
Signal-to-Noise Ratio
98 dB
Wow and Flutter
Less than measurable limit
MP3 decoding format
MPEGt/Z Audio Layer 3 Max. Bit Ratez320 Kbps
WMA (Windows Media Audio) decoding format
Max. Bit Rate:192 Kbps
GENERAL
Power Requirement (Operating Voltage
DC 14.4 v (11 v to 16 v allowance)
Grounding System
Negative ground
Allowable Operating Temperature
09C to +4090 (329F to 1049F)
Dimensions (W x H x D) Installation Size (approx)
182 mm x 52 mm x 159 mm (7-3/16" >< 2-1/16" >< 6-5/16")
Panel Size (approx)
188 mm X 58 mm X 12 mm (7-7/16" >< 2-5/16"><1/2")
Mass (approx)
1.5 kg (3.4 lbs) (excluding accessories)
Design and specifications are subject to change without notice.
1-2 (No.MA050)
