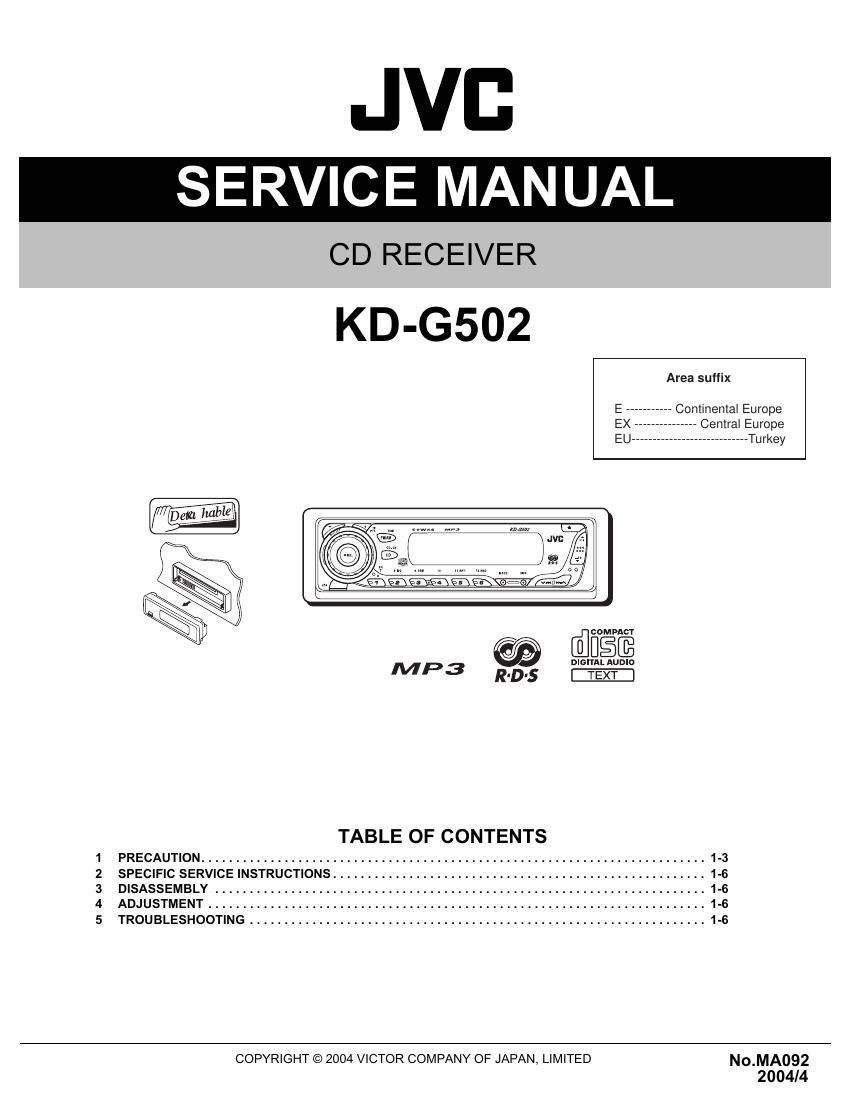

JVC
SERVICE MANUAL
CD RECEIVER
KD-G502
E ______
EX --
----- Continental Europe
Area suffix
- C ntra! Europe
EU-»- ---------- Turkey
I El
\' Iflfigfi
DIGITAL AUDIO
"3 3 nos
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-6
3 DISASSEMBLY ....................................................................... 1-6
4 ADJUSTMENT ........................................................................ 1-6
5 TROUBLESHOOTING .................................................................. 1-6
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED No.MA092
2004/4
SPECIFICATION
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 Q (4 £2 to 8 £2 allowance)
Tone Control Range Bass :10 dB at 100 Hz
Treble :10 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.0 V/20 k0 load (full scale)
Output Impedance 1 k0
TUNER SECTION
Frequency Range FM 87.5 MHZ to 108.0 MHZ
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 uV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 uV/75 52)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
Capture Ratio 1.5 dB
[MW Tuner] Sensitivity 20 uV
Selectivity 35 dB
[LW Tuner] Selectivity 5O uV
CD PLAYER SECTION
Type Compact disc player
Signal Detection System
Non-contact optical pickup (semiconductor laser)
Number of channels
2 channels (stereo)
Frequency Response
5 HZ to 20 000 HZ
Dynamic Range
96 dB
Signal-to-Noise Ratio
98 dB
Wow and Flutter
Less than measurable limit
MP3 decoding format
MPEG 1/2 Audio Layer 3
Max. Bit Ratez320 Kbps
GENERAL
Power Requirement I
Operating Voltage
DC 144 V (11 V to 16 V allowance)
Grounding System
Negative ground
Allowable Operating Temperature
0°C to +40°C
Dimensions (W x H x D)
Installation Size (approx)
182 mm><52 mm>< 150 mm
Panel Size (approx)
188mm><58mm><12 mm
Mass (approx)
1.4 kg (excluding accessories)
Design and specifications are subject to change without notice.
1-2 (No.MA092)
