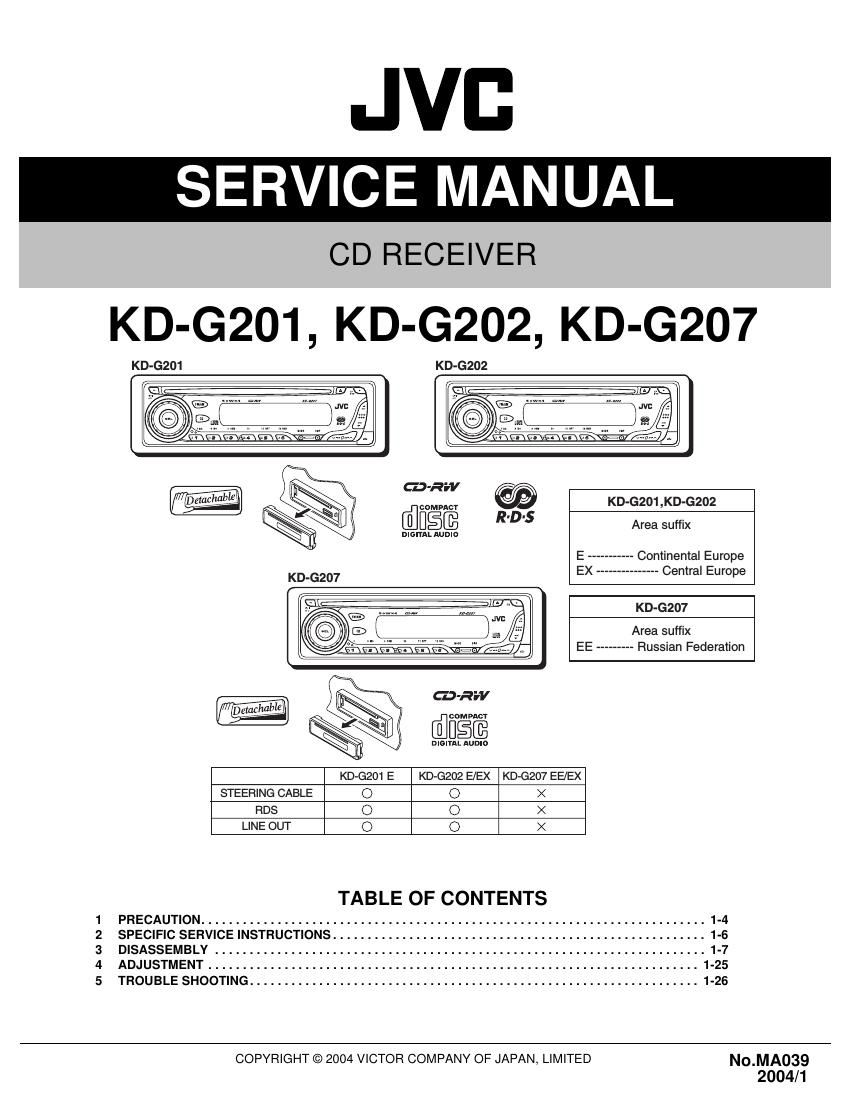

Jvc KDG 207 Service Manual

Page 2

SPECIFICATION

lKD-GZOZ/KD-G201

AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 £2 (4 Q to 8 £2 allowance)
Tone Control Range Bass i10 dB at 100 Hz
Treble $10 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.0 V/20 k9 load (full scale)
Output Impedance 1 k0
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 tiV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 pV/75 52)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
Capture Ratio 1.5 dB
[MW Tuner] Sensitivity 20 V
Selectivity 35 dB
[LW Tuner] Selectivity 50 uV
CD PLAYER SECTION
Type Compact disc player

Signal Detection System

Non-contact optical pickup (semiconductor laser)

Number of channels

2 channels (stereo)

Frequency Response

5 HZ to 20 000 HZ

Dynamic Range

96 dB

Signal-to-Noise Ratio

98 dB

Wow and Flutter

Less than measurable limit

GENERAL

Power Requirement Operating Voltage

DC 144 V (11 V to 16 V allowance)

Grounding System

Negative ground

Allowable Operating Temperature

OQC to +4090

Dimensions (W x H x D) Installation Size (approx)

182 mm><52 mm x 150 mm

Panel Size (approx)

188mmx58mmx11 mm

Mass (approx)

1.3 kg (excluding accessories)

Design and specifications are subject to change without notice.

1-2 (N0.MA039)
