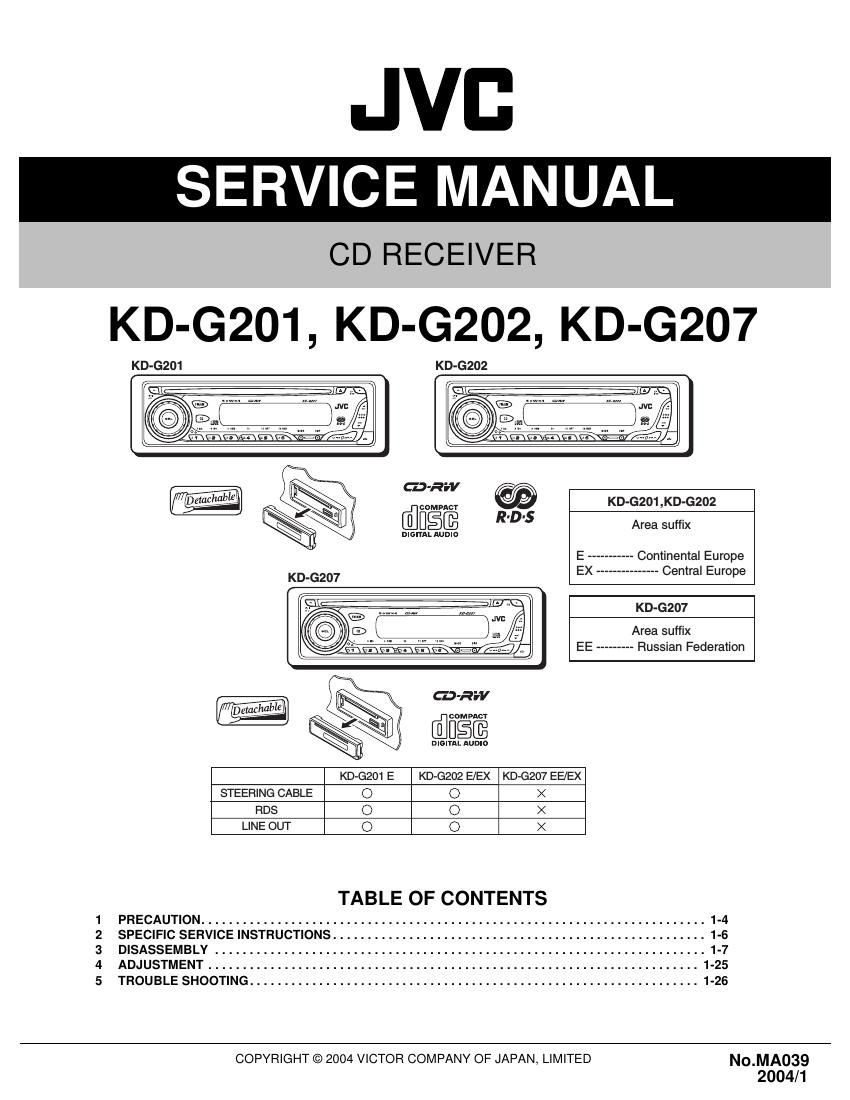

This is the 49 pages manual for Jvc KDG 202 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
SPECIFICATION
lKD-GZOZ/KD-G201
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 £2 (4 Q to 8 £2 allowance)
Tone Control Range Bass i10 dB at 100 Hz
Treble $10 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.0 V/20 k9 load (full scale)
Output Impedance 1 k0
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 tiV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 pV/75 52)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
Capture Ratio 1.5 dB
[MW Tuner] Sensitivity 20 V
Selectivity 35 dB
[LW Tuner] Selectivity 50 uV
CD PLAYER SECTION
Type Compact disc player
Signal Detection System
Non-contact optical pickup (semiconductor laser)
Number of channels
2 channels (stereo)
Frequency Response
5 HZ to 20 000 HZ
Dynamic Range
96 dB
Signal-to-Noise Ratio
98 dB
Wow and Flutter
Less than measurable limit
GENERAL
Power Requirement Operating Voltage
DC 144 V (11 V to 16 V allowance)
Grounding System
Negative ground
Allowable Operating Temperature
OQC to +4090
Dimensions (W x H x D) Installation Size (approx)
182 mm><52 mm x 150 mm
Panel Size (approx)
188mmx58mmx11 mm
Mass (approx)
1.3 kg (excluding accessories)
Design and specifications are subject to change without notice.
1-2 (N0.MA039)
