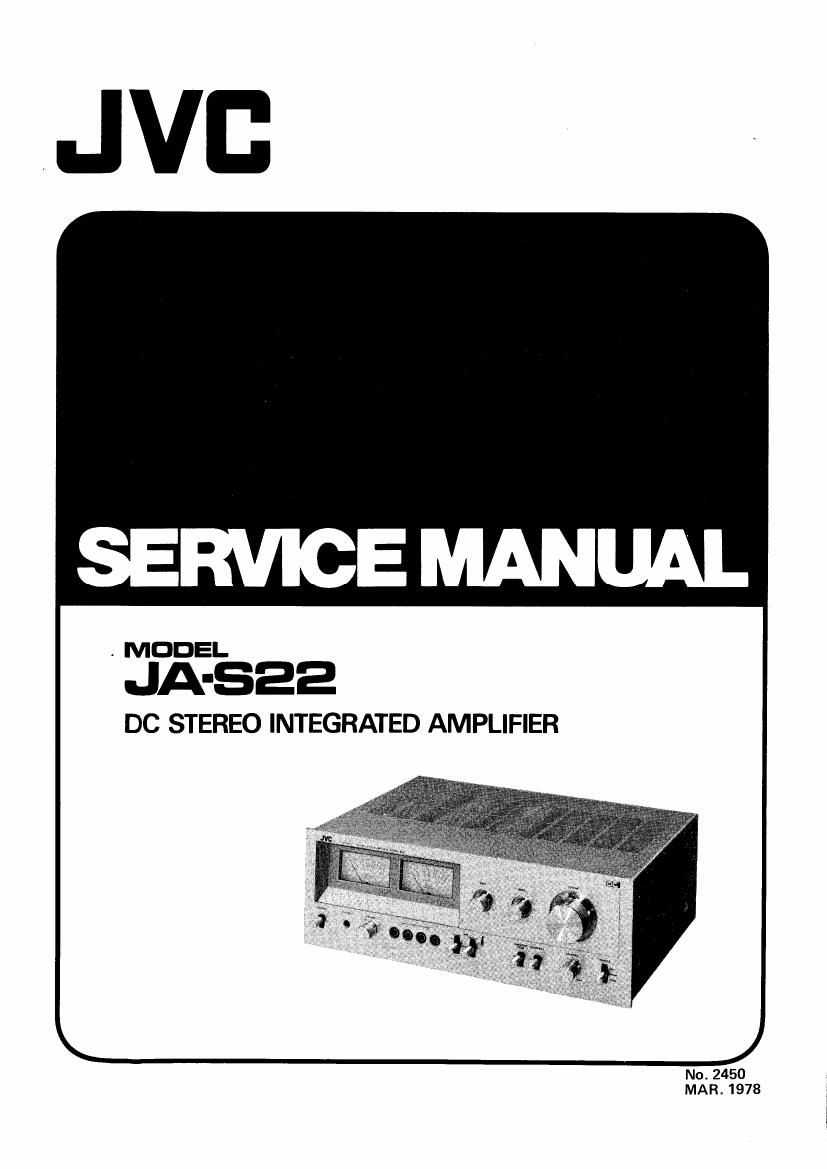

This is the 26 pages manual for Jvc JAS 22 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
JA-522
No. 2450
C
0143de
ontents
. Specifications ..............................................................
. Block Diagram ..............................................................
. Removal of Top Cover and Bottom Plates ............................................
. Main Parts Location ..........................................................
. Exploded Views and Part Numbers
541) Front Panel .........................................................
5-(2) Heat Sink and Power IC's ................................................
5-(3) Rear Panel ..........................................................
. Adjustment Procedures
6-(1) Main Amp. Center Voltage ...............................................
6-(2) Idling Current .......................................................
6-(3) Power Meter
. Printed Circuit Board Ass'y and Parts List
7-(1) TXX-135 Equalizer, Tone Control and Driver Amp. P.C. Board Ass'y ...................
7-(2) TXX-136 Power Amp. and Power Supply P.C. Board Ass'y ..........................
7-(3) TPS-194A AC Outlets and Voltage Selector P.c. Board Assy ........................
7-(4) TPS-197A Line Voltage Selector P.C. Board Ass'y ...............................
. Packing Materials and Part Numbers ................
. Accessories List .............................................................
10.
1 1.
Parts List with Specified Numbers for Designated Areas ...................................
JA-822 Schematic Diagram ......................................................
Warning!
When replacing the parts marked with A , be sure to use the designated parts to ensure safety.
Power Specifications
Areas Line Voltage & Frequency Power Consumption
U.S.A. AC 120 V, 60 Hz 182W
CANADA AC 120 V, 60 Hz 182 W
EUROPE AC 220 V», 50 Hz 330 W
U.K. & AUSTRALIA AC 240 V\/, 50 Hz 330 W
OTHER AREAS AC 100/120/220/240 Vw 330 W
Se|ectable, 50/60 Hz
15
19
19
20
21
22
