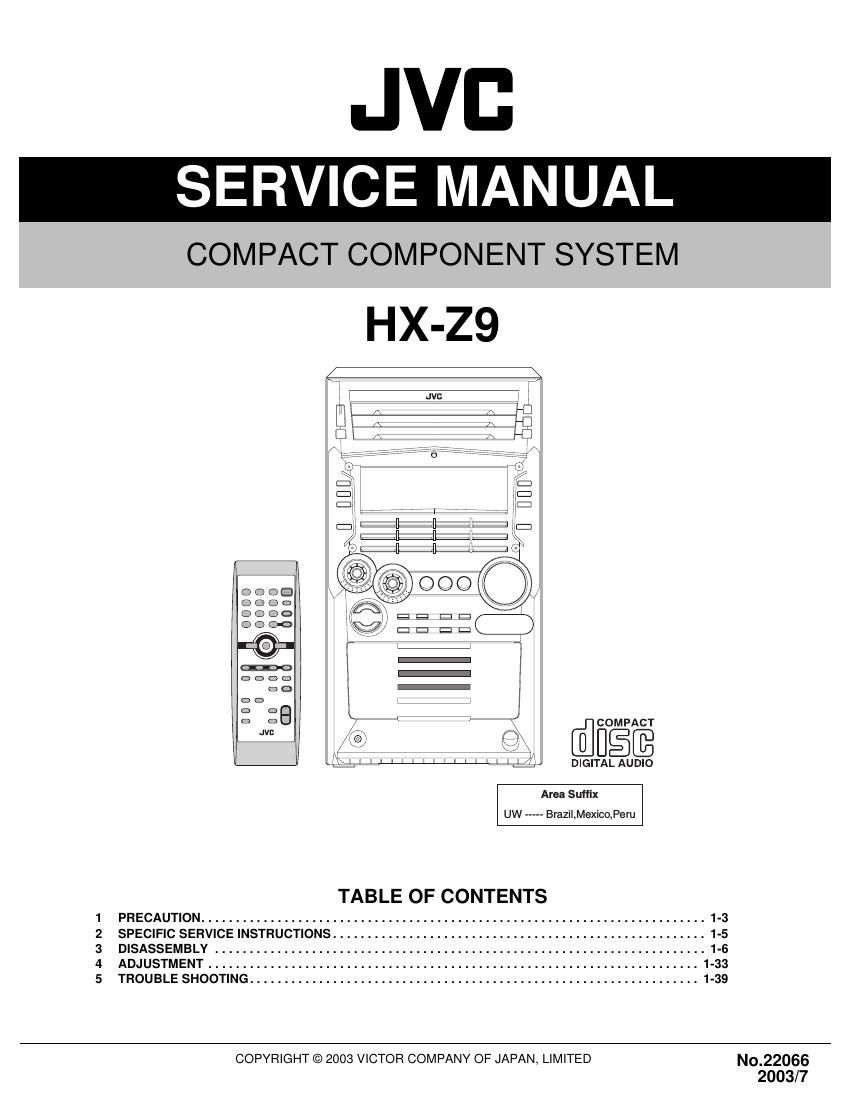

Page 1
JVC
SERVICE MANUAL
COMPACT COMPONENT SYSTEM
HX-29
JVC
o o OE)
0000
C) C) O o
O 0 0-0
.13.
no
a o o o
a C)
o c)
o o
O O COMPACT
JVC { \
[flfl§@
v / DIGITAL AUDIO
Area Suffix
UW ----- Brazil,Mexico,Peru
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ............................................... . . 1-5
3 DISASSEMBLY ................................................................ . . 1-6
4 ADJUSTMENT .................................................................... 1-33
5 TROUBLE SHOOTING .............................................................. 1-39
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No_22066
2003/7
Page 2
SPECIFICAT
ION
Amplifier section
Output Power SUBWOOFERS
(IEC 268-3)
75 W per channel, min. RMS, both channels driven into 6 Q
at 63 Hz with no more than 0.9% total harmonic distortion.
MAIN SPEAKERS
30 W per channel, min. RMS, both channels driven into 6 Q
at 1 kHz with no more than 0.9% total harmonic distortion.
Audio input sensitivity/Impedance(Mea
sured at 1 kHz, with tape recording signal 300 mV)
AUX
390 mV/50 kQ
Speakers/
Impedance
SUBWOOFERS 6 £2 » 16 (2
MAIN SPEAKERS 6 S2 » 16 £2
SURROUND SPEAKERS 16 £2 » 32 £2
Tuner FM tuning range 87.50 MHz - 108.00 MHz
AM tuning At 9 kHz intervals 531 kHz - 1 710 kHz
range At 10 kHz intervals 530 kHz - 1 710 kHz
CD player CD capacity 3 CDs
Dynamic range 85 dB
Signal-to-noise ratio 90 dB
Wow and flutter
Immeasurable
Cassette deck
Frequency response Normal (type I)
50 HZ - 14 000 Hz
Wow and flutter
0.15% (WRMS)
General
Power requirement
AC HOV/AC 127V/AC 220V/AC 230V»AC 240V~
(adjustable with the voltage selector), 50 Hz / 60 Hz
Power consumption
205 W (in operation) 23 W (on standby with Ecology Mode
oft) Less than 3.5 W (on standby with Ecology Mode on)
Dimensions (approx.)
205 mm X 370 mm X 370 mm (W/H/D)
Mass (approx.)
10.0 kg
Supplied accessories
See page 6.
Design and specifications are subject to change without notice.
1-2 (No.22066)
