Extracted text from Jvc HRXVC 34 UC Service Manual (Ocr-read)

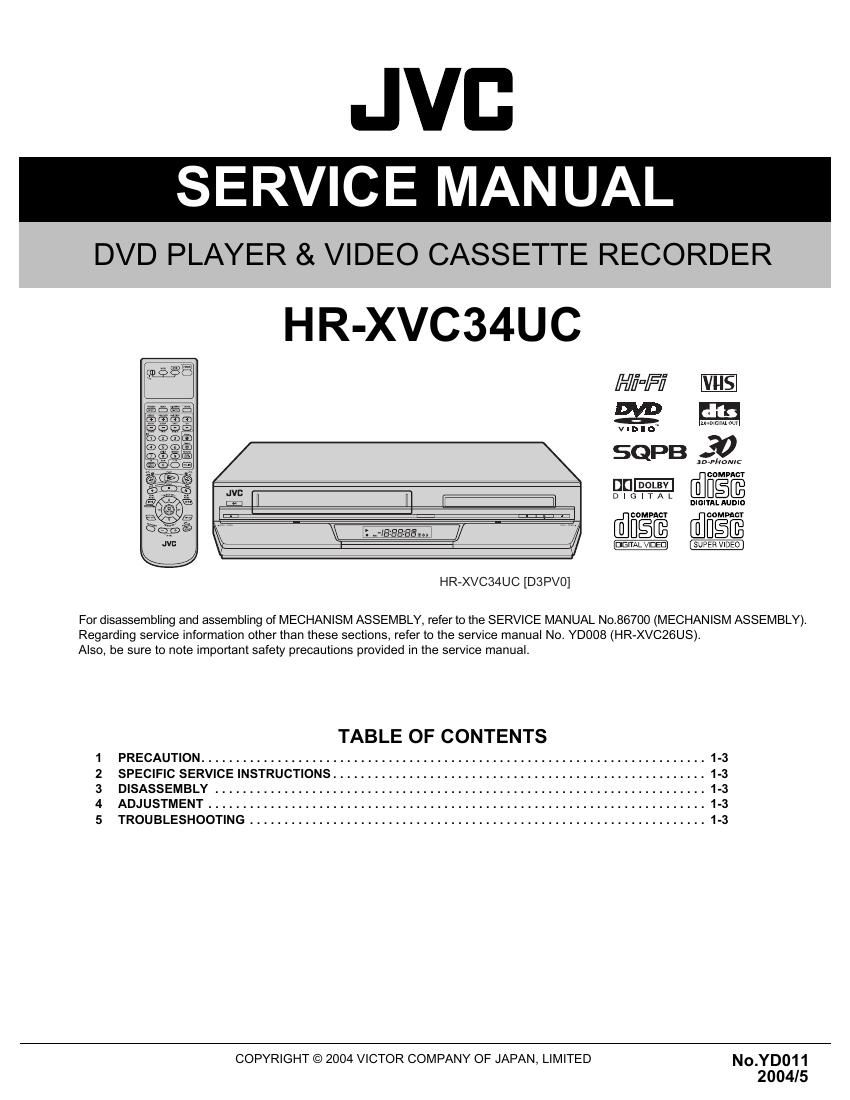

Page 1
JVC
SERVICE MANUAL
DVD PLAYER & VIDEO CASSETTE RECORDER
HR-XVC34UC
HM? VHS
mum-m um
SQPB' new
as l-li i fi-i 995-???3L WW
[w ' '_I z I x . 1 ; ll EDMFACY COMPACT
" I \\ :I.-:3:Eia:aaml / M @USEE @HSE
\ I I / DENIM-V] lDEU SUPER VlDEO
HR-XVCB4UC [DSPVO]
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL Not86700 (MECHANISM ASSEMBLY).
Regarding service information other than these sections, refer to the service manual No. YD008 (HR-XVCZ6US).
Also, be sure tO note important safety precautions provided in the service manual.
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-3
3 DISASSEMBLY ....................................................................... 1-3
4 ADJUSTMENT ....................................... 1-3
5 TROUBLESHOOTING .................................................................. 1-3
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED No.YD011
2004/5
Page 2
SPECIFICATION
GENERAL
Power requirement
AC 120 V, 60 Hz
Power consumption
Power on 22 W
Power off 2.0 W
Temperature
Operating 5°C to 40°C (41°F to 104°F)
Storage -20°C to 60°C (-4°F to 140°F)
Operating position
Horizontal only
Dimensions (W X H X D)
435 mm x 93 mm x 272 mm
Weight 4.1 kg
Format VHS NTSC standard
Maximum recording time
(SP) 210 min. with ST-210 video cassette
(EP) 630 min. with ST-210 video cassette
VIDEO/AUDIO (VCR deck)
Signal system
NTSC color signal and ElA monochrome signal, 525 lines/60 fields
Recording system
DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio
45 dB
Horizontal resolution
230 lines
Frequency range
70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output
RCA connectors: IN X 1, OUT X 1
VIDEO/AUDIO (DVD deck)
Signal system
NTSC
Applicable disc
DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Audio characteristics
DVD:4 Hz - 22 KHZ
Frequency response
CD24 HZ - 20 KHZ
SIN Ratio 90 dB
Harmonic distortion 0.1%
Wow and flutter Below Measurable Level
Dynamic range 90 dB
Output
Component-Y (RCA) 1.0 Vp-p/75 fl
Component-PB/PR (RCA) 0.7 Vp-p/75 9
Audio (RCA)2 Vrms, 1 K9
Digital Audio (COAXIAL) 0.5 Vp-p/75 £2
TUNER
Tuning system Frequency synthesized tuner
Channel coverage VHF: Channels 2 - 13, UHF: Channels 14 - 69, CATV: 113 Channels
RF output Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 Q, unbalanced
TIMER
Clock reference
Quartz
Program capacity
1-year programmable timer/8 programs
Memory backup time
Approx. 5 seconds
ACCESSORIES
Provided accessories
RF cable, Infrared remote control unit, "AA" battery X 2
- Specifications shown are for SP mode unless othen/vise specified.
E.& O.E. Design and specifications subject to change without notice.
- Manufactured under license from Dolby Laboratories. "Dolby and the double-D symbol are trademarks of Dolby Laboratories.
- DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc.
1-2 (N0.YD011)
