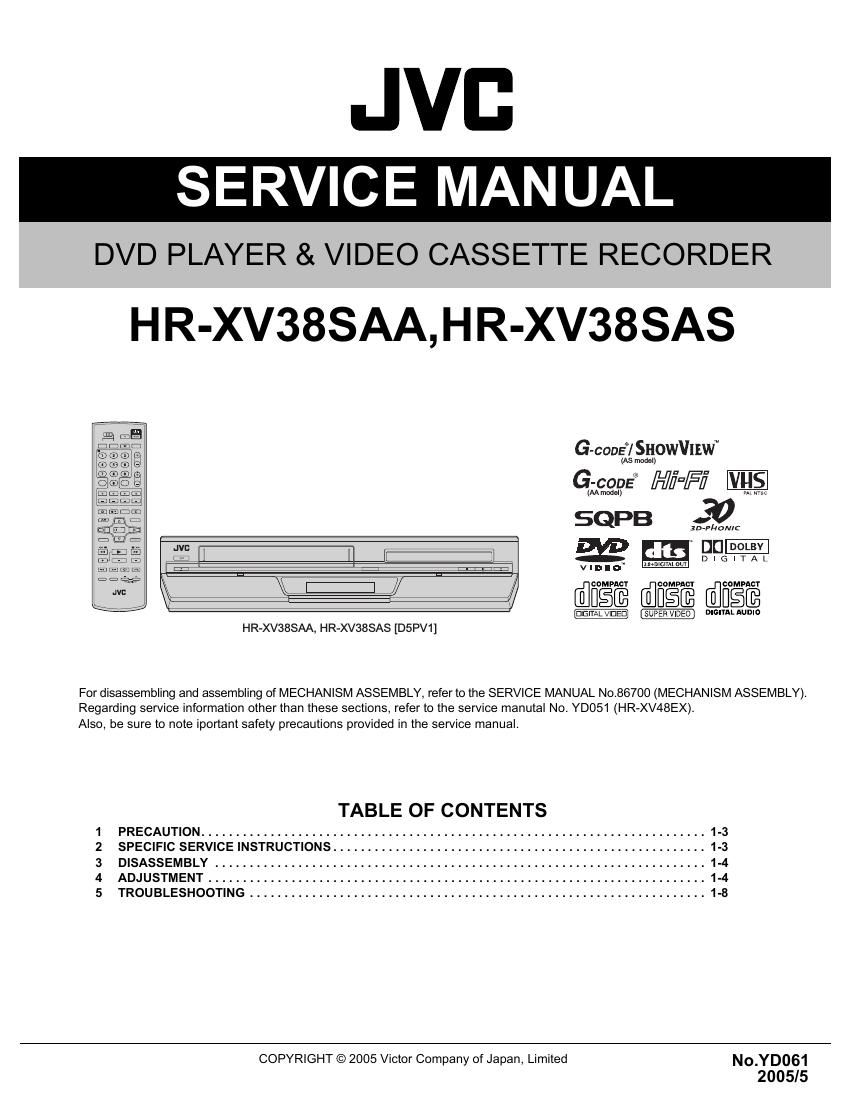

Page 1
JVC
SERVICE MANUAL
DVD PLAYER & VIDEO CASSETTE RECORDER
H R-XV38SAA, H R-XV38$AS
G- «300%! SdHDOWVIEWV
G- 009E HiFfl
SQPB UVIIS
é lfiii Hg fl _" 9.56-
K mm ,
E / di_°§@ @EETE wage
_EITAI.VIEIED _UPERVIDEO DIGITALWDID
H R-XV38SAA, HR-XVBSSAS [D5PV1]
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
Regarding service information other than these sections, refer to the service manutal No. YD051 (HR-XV48EX).
Also, be sure to note iportant safety precautions provided in the service manual.
TABLE OF CONTENTS
PRECAUTION ........................................ 1-3
SPECIFIC SERVICE INSTRUCTIONS . . ........................ 1-3
UIJLOONA
DISASSEMBLY ........................................... 1-4
ADJUSTMENT ....................................... 1-4
TROUBLESHOOTING .................................................................. 1-8
COPYRIGHT © 2005 Victor Company of Japan, Limited No_YD061
2005/5
Page 2
SPECIFICATION
GENERAL
Power requirement
AC 110 V - 240 V, 50 Hz/6O Hz
Power consumption
Power on 23 W
Power off 4.5 W
Temperature
Operating 5°C to 40°C
Storage -20°C to 60°C
Operating position
Horizontal only
Dimensions (W X H X D)
435 mm X 93 mm X 272 mm
Weight 4.2 Kg
Format VHS PAL/NTSC standard
Maximum recording time
(SP) 240 min. with E-24O video cassette(PAL/MESECAM)
160 min. with T460 video cassette(NTSC)
(LP) 480 min. with E-240 video cassette(PAL/MESECAM)
(EP) 480 min. with T-160 video cassette(NTSC)
VIDEO/AUDIO (VHS deck)
Signal system
PAL-type colour signal and CClR monochrome signal, 625 lines/50 fields
NTSC colour and ElA monochrome signal, 525 lines/60 fields.
Recording system
DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio
45 dB
Horizontal resolution
250 lines (PAL/MESECAM), 220 lines (NTSC)
Frequency range
70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output
RCA connectors: IN X 2, OUT X 1
VIDEO/AUDIO (DVD deck)
Signal system
NTSC 3.58
Applicable disc
DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Audio characteristics
DVD14 Hz - 22 KHZ
Frequency response
CD24 HZ - 20 KHZ
SIN Ratio 90 dB
Wow and flutter Below Measurable Level
Dynamic range 90 dB
Output
Component-Y
(RCA) 1.0 Vp-p/75 o
Component- PB IPR
(RCA) 0.7 Vp-p/75 o
Audio
(RCA) 2 Vrms, 1 K9
Digital Audio
-21 dBm to -15 dBm(peak)
TUNERITIMER(VHS deck)
TV channel storage capacity
99 positions (+AUX position)
Tuning system
Frequency synthesized tuner
Channel coverage
VHF(low) : 42 MHz-175 MHz
VHF(high) : 175 MHz-470 MHz
UHF :470 MHz-870 MHz
Aerial output
UHF channels (Adjustable E28-E60)
Program capacity
1-year programmable timer / 8 programs
Memory backup time
Approx. 10 min.
ACCESSORIES
Provided accessories
RF cable, Infrared remote control unit, "R6" battery X 2
- Specifications shown are for SP mode unless otherwise specified.
- E.& O.E. Design and specifications subject to change without notice.
- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- "DTS" and "DTSZ.O+ Digital Out" are trademarks of Digital Theater Systems, Inc.
- G-CODE is a trademark of Gemstar Development Corporation and is registered in the following countries: Australia, China, Hong Kong,
Japan, South Korea, New ealand, and Taiwan. SHOWVIEW is a trademark of Gemstar Development Corporation and is registered in
the following countrieszAustria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Hungary, Iceland, Italy, Luxembourg,
Netherlands, Norway, Poland, Portugal, Russia, Slovakia, South Africa, Spain, Sweden and Switzerland. The G-CODE/SHOWVIEW sys-
tem is manufactured under license from Gemstar Development Corporation.
G-CODE and SHOWVIEW are different trademarks used to represent the same easy recording feature. However, for simplicity, only the
term G-CODE will be used in the instructions. If you use SHOWVIEW system, follow the same steps listed for the G-CODE system (AS
MODEL).
- G-CODE is a registered trademark of Gemstar Development Corporation. The G-CODE system is manufactured under license from
Gemstar Development Corporation (AA MODEL).
1-2 (No.YD061)
