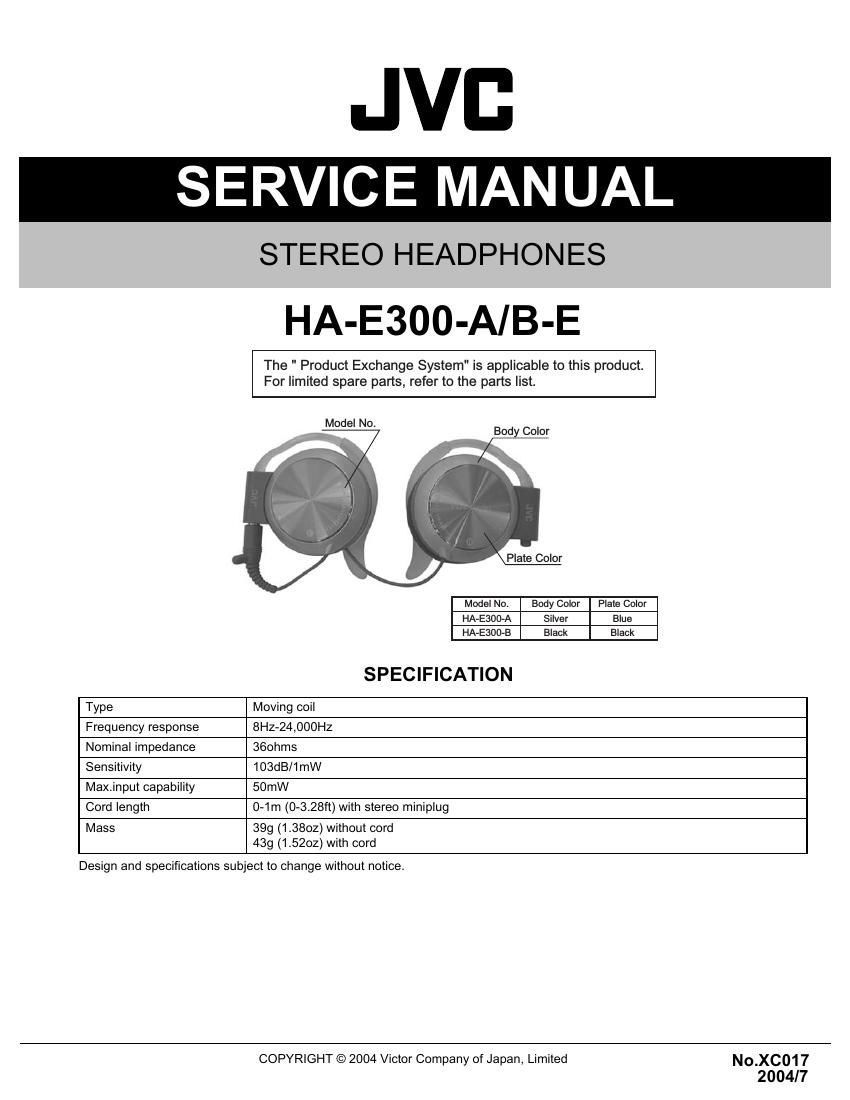

Jvc HAE 300 Service Manual

This is the 2 pages manual for Jvc HAE 300 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
Jvc HAE 300 Service Manual

Extracted text from Jvc HAE 300 Service Manual (Ocr-read)

Page 1

(No.XC017) AV & MULTIMEDIA COMPANY ACCESSORIES CATEGORY 1644, Shimotsuruma, Yamato, Kanagawa 242-8514, JapanVictor Company of Japan, Limited WPC Printed in Japan Packing Method Parts list [M][1][M][M] * Parts marked (ï-¡) are safety parts. When replacing, be sure to use the specifide one. Wiring Diagram ï-¡SYMBOL PARTS NO. PARTS NAME QTY DESCRIPTION 1 J47377-001 Ear Pad 2 *Blister cover *Sheet *Tray *Film 1 Block No. M1MM These parts which was marked * ( Blister cover / tray / Film / Sheet ) will not be able to supply as our service parts. R(Right Driver Unit) L(Left Driver Unit) 3.5mm dia. Stereo Miniplug+ +- -
