Jvc EXP 1 Service Manual

Page 1

JVC

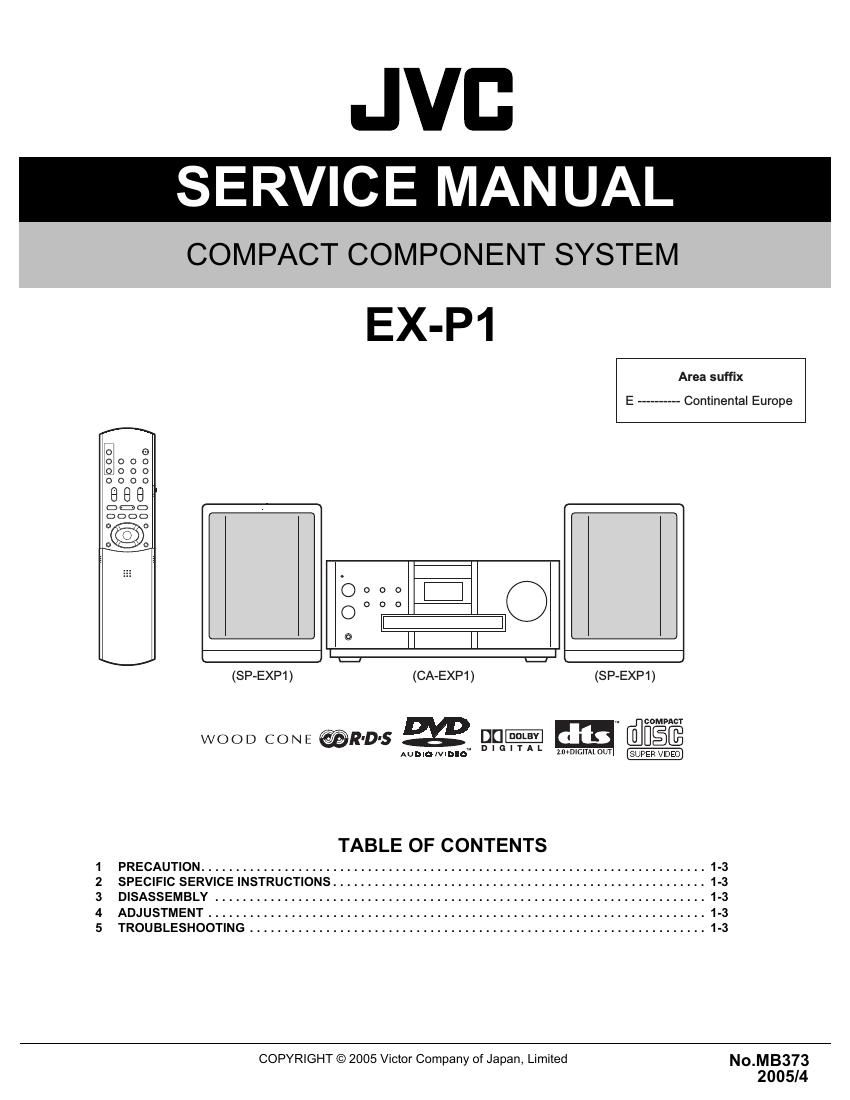

SERVICE MANUAL

COMPACT COMPONENT SYSTEM

EX-P1

Area suffix

E ---------- Continental Europe

(ME ©-
0000
©

-

(SP EXP1) (CA EXP1) (-SP EXP1)

w coMpAcT
WOOD CONE @RHDS fl DUE - dtsflUSIE
D'G'TL _z+ulaniou1

AUDIO/VIDEO

TABLE OF CONTENTS

1 PRECAUTION .................................................. -3
2 SPECIFIC SERVICE INSTRUCTIONS. . .. 1-3
3 DISASSEMBLY ................... . . 1-3
4 ADJUSTMENT ........................................................................ 1-3
5 TROUBLESHOOTING .................................................................. 1-3
COPYRIGHT © 2005 Victor Company of Japan, Limited No_MB373

2005/4

Page 2

SPECIFICATION

General Power source AC 230 V 50 Hz
Power consumption 24 W (in operation)
1.1 W (on standby)
Weight 30 kg
External dimensions (W X H > DVD player Playable discs DVD VIDEO, DVD AUDIO, VCD, Super VCD, CD, CD-R/RW (CD,

VCD, MP3, JPEG format), DVD-RI RW (video format)

Video output

Color system

PAL

Horizontal resolution

500 lines

SCART connector X 1

Audio output

Analog sound output Speakers X 2

60 W (30W + 30W) at 4 9(10% THD)

Output power (IEC 268-3)

Fitting impedance: 4 Q to 16 £2

Headphones X 1

11 mW/32 Q
Fitting impedance: 16 Q to 1 kn

Subwoofer X 1

500 mVrms/1O k0

Digital sound output Optical X 1

-21 dBm to -15 dBm

Other output AV COMPU LINK X 2 ((253.5)
Audio input Sound input AUX ><1
Level 1 250 mV/5O k9
Level 2 500 mV/50 k9
Tuner FM tuner Receiving frequency 875 MHz to 1080 MHZ
Antenna 750- unbalanced type
AM tuner Receiving frequency 522 kHz to 1629 kHz
Antenna External antenna jack (loop antenna)
Speaker Type 1-way bass-reflex type Magnetically shielded type
Speaker 8cm cone X 1
Power handling capacity 30 W
Impedance 49
Sound pressure level 82 dB/W m
Dimension (W x H X D) 120 mm X161 mm X 239 mm
Weight (1 unit) 1.9 kg

Designs and Specifications are subject to change without notice.

1-2 (NotMBS73)
