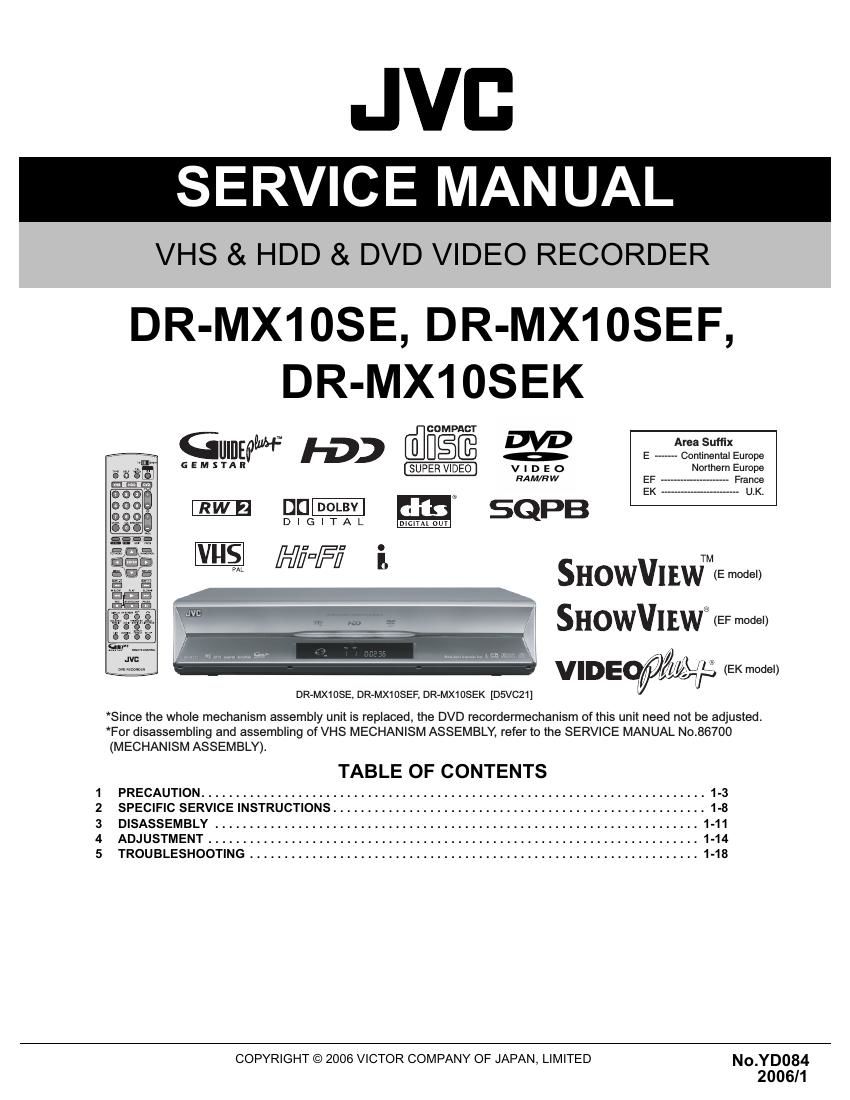

Page 1
JVB
SERVICE MANUAL
VHS & HDD & DVD VIDEO RECORDER
DR-MX1OSE, DR-MX1OSEF,
DR-MX1OSEK
COMPACT
GuInEIIW 1-D) @UEIE EE
E Cominental Europe
G E M 5 TA " SUPER V-DEO v I D E o Nonhern EurOPe
RAM/HW EF E France
EK ,, ,
Du- SQPB
DIGITAL
VHS HiaFi i.
PAL
SHOWVIEWMEmodE'
DR-MX1OSE, DR-MX1OSEF, DR-MX1OSEK [D5VC21]
*Since the whole mechanism assembly unit is replaced, the DVD recordermechanism of this unit need not be adjusted.
*For disassembling and assembling of VHS MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700
(MECHANISM ASSEMBLY).
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ................................................. 1-8
3 DISASSEMBLY ......................................................
4 ADJUSTMENT .......................................................
5 TROUBLESHOOTING ................................................................. 1-18
COPYRIGHT © 2006 VICTOR COMPANY OF JAPAN, LIMITED No.YD084
2006/1
Page 2
SPECIFICATION
DR-MX1 OSEK
DR-MX1OSE | DR-MX1OSEF
GENERAL
Power requirement)
AC 220 V - 240 V, 50 Hz/60 Hz
Power consumption
Power on 45 W
Power off 6.7 W
Temperature
Operating 5 C to 35°C
Storage -20 C to 60°C
Operating position
Horizontal only
Dimensions (W X H X D)
435 mm X 96 mm X 384 mm
Weight
5.9 kg
VIDEO/AUDIO (DVD Deck)
Recordable disc
DVD-RAM 12 cm (4.7 (EB/9.4 GB1), DVD-RAM 8 cm (1.4 GB/2.8 GBZ), DVD-R 12 cm (4.7 GB)
DVD-R s cm (1.4 GB), DVD-RW 12 cm (4.7 GB), DVD-RW 8 cm (1.4 GB)
1 9.4 GB double-sided discs 2 2.8 GB double-sided discs
Recording format
DVD-R: DVD Video formal, DVD Video Recording format
DVD-RW : DVD Video formal, DVD Video Recording format
DVD-RAM : DVD Video Recording formal
Recording time
(XP): Approx. 1 hour, (SP): Approx. 2 hours, (LP): Approx. 4 hours
(EP): Approx. 6 hours, (FR): Approx. 1 hour - 8 hours
Maximum 8 hours (with 4.7 GB disc)
Audio recording system
Dolby Digital (2 ch), Linear PCM (XP mode only)
Video recording compression system
MPEGZ (CBRNBR)
VIDEO/AUDIO (HDD Deck)
Capacity
160 GB
Recording lime
(DV) : Approx. 11 hours, (XP
(LP) : Approx. 138 hours, (EP) : Approx. 209 hours, (FR480) : Approx. 300 hours
) : Approx. 34 hours, (SP) : Approx. 69 hours
Audio recording system
Dolby Digital (2 ch), Linear PCM (XP mode only)
Video recording compression system
MPEG2 (VBR)
VIDEO/AUDIO (VHS Deck)
Signal system
PAL colour signal and CCIR monochrome signal, 625 lines / 50 fields
Recording system
DA4 (Double Azimuth) head helical scan system
Format VHS PAL standard
Maximum recording time
(SP) 240 min. with E-24O video cassette
(LP) 480 min. with E-24O video cassette
Signal-to-noise ratio 45 dB
Horizontal resolution 230 lines
Frequency range
70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-F1 audio)
INPUT/OUTPUT
21-pin SCART connectors
IN/OUT><1, IN/DECODERX1
S-video input
Y: 1.0 Vp-p, 75 Q, C: 0.3 Vp-p, 75 Q
Video input 1.0 Vp-p, 75 (2 (pin jack)
Audio input 2 Vrms (pin jack)
i.Link 4-pin for DV Input/Output
Component video output
Y: 1.0 Vp-p, 75 n, Pb/Pr: 0.7 Vp-p, 75 9 Corresponding to copy protection
Digital audio output
Corresponding to Dolby Digital and DTS Digital Surround,
Bit stream Selectable in digital audio output setting menu
Coaxial
G-LINK
(33.5 mm jack
TUNERITIMER
Tuning system
Frequency synthesized tuner
Signal system
PAL colour signal, 625 lines/50 fields
PAL/SECAM colour signal, 625 lines/50 field
TV channel storage capacity
99 positions (+AUX position)
Channel coverage (PAL B/G)
VHF : 44.5 MHZ-143 MHz/143 MHZ -470
MHZ
UHF : 470 MHZ - 862 MHZ
VHF(LOW) : 47MHz-89MHz(E2-E4,X,Y,Z)
VHF(HIGH):104MHz-300MHZ(E5 - E12,
51-520, M1 - M10, U1 - U10)
Hyper: 302MHz - 470MHz (321-341)
UHF: 470MHz -862MHZ (521 - E69)
VHF : 47 MHZ - 89 MHZ/104 MHz - 300
MHz/302 MHZ - 470 MHZ
UHF : 470 MHZ - 862 MHZ
Channel coverage(SECAM-L)
VHF(LOW) :49MHz - 65MHz (2-4)
VHF(HIGH): 104MHz-300 MHZ(5-10,CATV)
Hyper: 300MHz - 470MHz (CATV)
UHF : 470MHz - 862MHz (21 - 69)
Clock reference
Quartz
Memory backup lime
Approx. 10 minutes
Specifications shown are for SP mode unless othenivise specified.
E.& O.E. Design and specifications subject to change without notice.
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
"DTS" and "DTS DIGITAL OUT" are trademarks of Digital Theater Systems, Inc.
This product incorporates copyright protection technology that is protected by US. patents and other intellectual property rights. Use of this copyright pro-
tection technology must be authorized by Macrowsion. Reverse engineering or disassembly is prohibited.
GUIDE Plus+, SHOWVIEW,VIDEO Plus+, G-LINK are (1) registered trademarks or trademarks of, (2) manufactured under license from and (3) subject of
various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International, Inc. and/or its related affiliates.
GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE
PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS» SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL,
INC. AND /OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDI-
RECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR
SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.
1-2 (N0.YD084)
