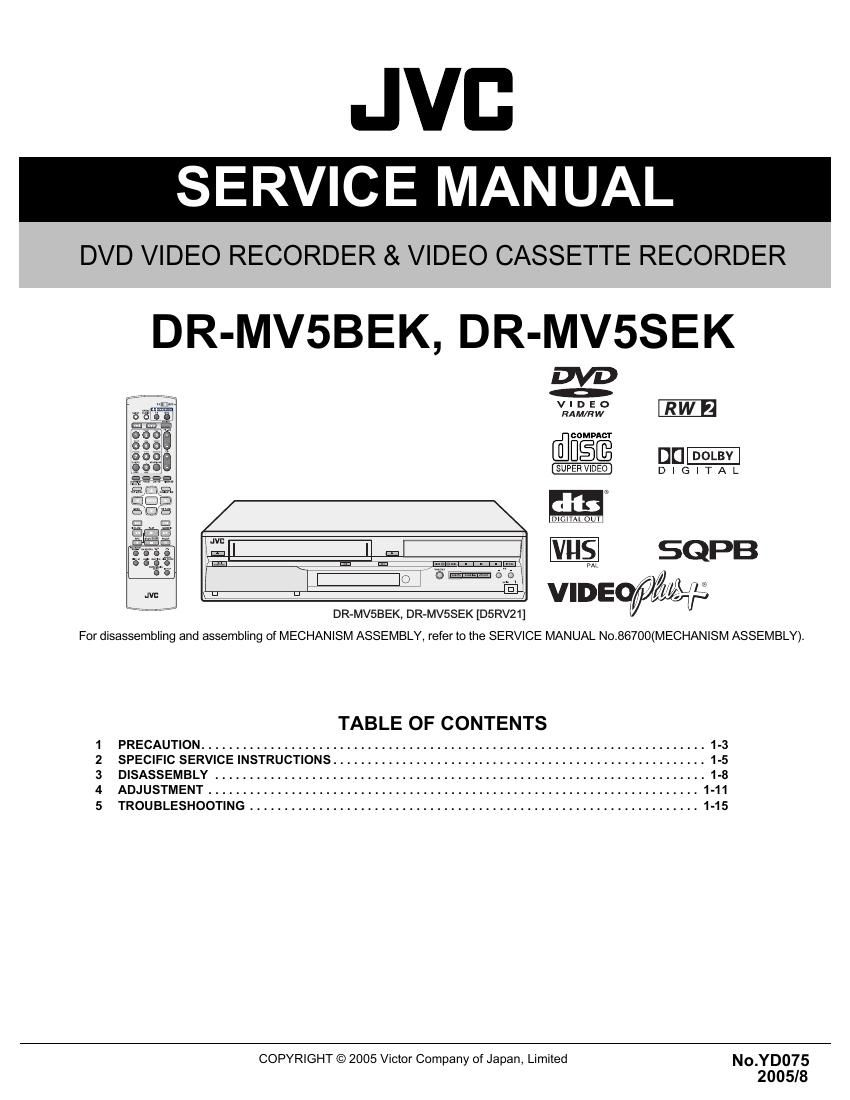

Page 1
JVC
SERVICE MANUAL
DVD VIDEO RECORDER & VIDEO CASSETTE RECORDER
DR-MV5BEK, DR-MV5SEK
DVD
2343/55
[fl_fl§@ Du-
_UPEFIVIDEO D I G I T A L
IIJVI:
I m I I VHS SQPB
C-IEI PAL
: Lab-NI // .
EL VIDEO «'w};
DR-MVSBEK, DR-MVSSEK [D5RV21] I
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700(MECHANISM ASSEMBLY).
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
3 DISASSEMBLY ....................................................................... 1-8
4 ADJUSTMENT ....................................................................... 1-11
5 TROUBLESHOOTING ................................................................. 1-15
COPYRIGHT © 2005 Victor Company of Japan, Limited No_YD075
2005/8
Page 2
SPECIFICATION
GENERAL
Power requirement
AC 220 V » 240V, 50/60 HZ
Power consumption
Power on 33w
Power off 7_ow
Temperature
Operating 5°C to 35"(3
Storage -20C to 60"(2
Operating position Horizontal only
Dimensions (W x H x D) 435 mm x 96 mm x 344 mm
Weight 5.8 kg
Input/Output
Video input 1.0 Vp-p, 75 £2 (pin jack)
Audio input .3 dB, 50 k9. (pin Jack), Corresponding to mono (left)
Audio output
A8 dB, 1 kn (pin jack)
21-pin SCART connectors
IN/OUT x i, IN/DECODER x 1
Input/Output (DVD Deck Only)
S-video input
Y: 1.0 VpAp, 75 :2, c; 0.300 VpAp, 75 0
i.Link
4Apin for DV input
Component Video output
Y: 1.0 VpAp, 75 o, CB/CR, PB/PR. 0.7 Vp-p. 75 :2
Corresponding to copy protection
Digital audio output
Coaxial. Corresponding to Dolby Digital and DTS Digital Surround
Bil stream Selectable in digital audio output setting menu
VIDEO/AUDIO (DVD deck)
Recording time
Maximum 8 hours (with 4.7 GB disc)
(XP) Approx 1 hour, (SP). Approx. 2 hours, (LP). Approx. 4 hours
(EP) Approx. 6 hours, (FR): Approx. 1 hour » 8 hours
Audio recording system
Dolby Digital (2 ch). Linear PCM (XP mode only)
Video recording compression system
MPEGZ (CBR/VBR)
VIDEO/AUDIO (VHS Deck)
Signal system
PAL colour signal and CCIR monochrome signal, 625 lines/50 fields
Recording system
DAA (Double Azimuth) head helical scan system
Format VHS PAL standard
Maximum recording time
(SP) 180 min. with E480 video cassette
(LP) 360 min. with E480 video cassette
Signal-Io-noise ratio 45 dB
Horizontal resolution 230 lines
Frequency range
70 HZ to 10,000 HZ (Normal audio) 20 HZ to 20000 HZ (Hi-Fi audio)
TUNER/TIMER
TV channel storage capacity
99 positions (+AUX position)
Tuning system
Frequency synthesized tuner
Channel coverage
VHF 47 MHZ A 143 MHZ/143 MHZ A 470 MHZ, UHF 470 MHZ A 862 MHZ
Memory backup time
Approx. 10 minutes
ACCESSORIES
ProVided accessories I
RF cable. 21-pin SCART cable, Infrared remote control unit. "AA" battery x 2
- Specifications shown are for SP mode unless othenivise specified.
- E.& O.E. Design and specifications subject to change without notice.
' Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
' "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
- VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under
license from Gemstar Development Corporation.
- ii(i.Link) refers to the IEEE1394-1995 industry specification and extensions thereof. Theilogo is used for products compliant with the i.Link stan-
dard.
1-2 (N0.YD075)
