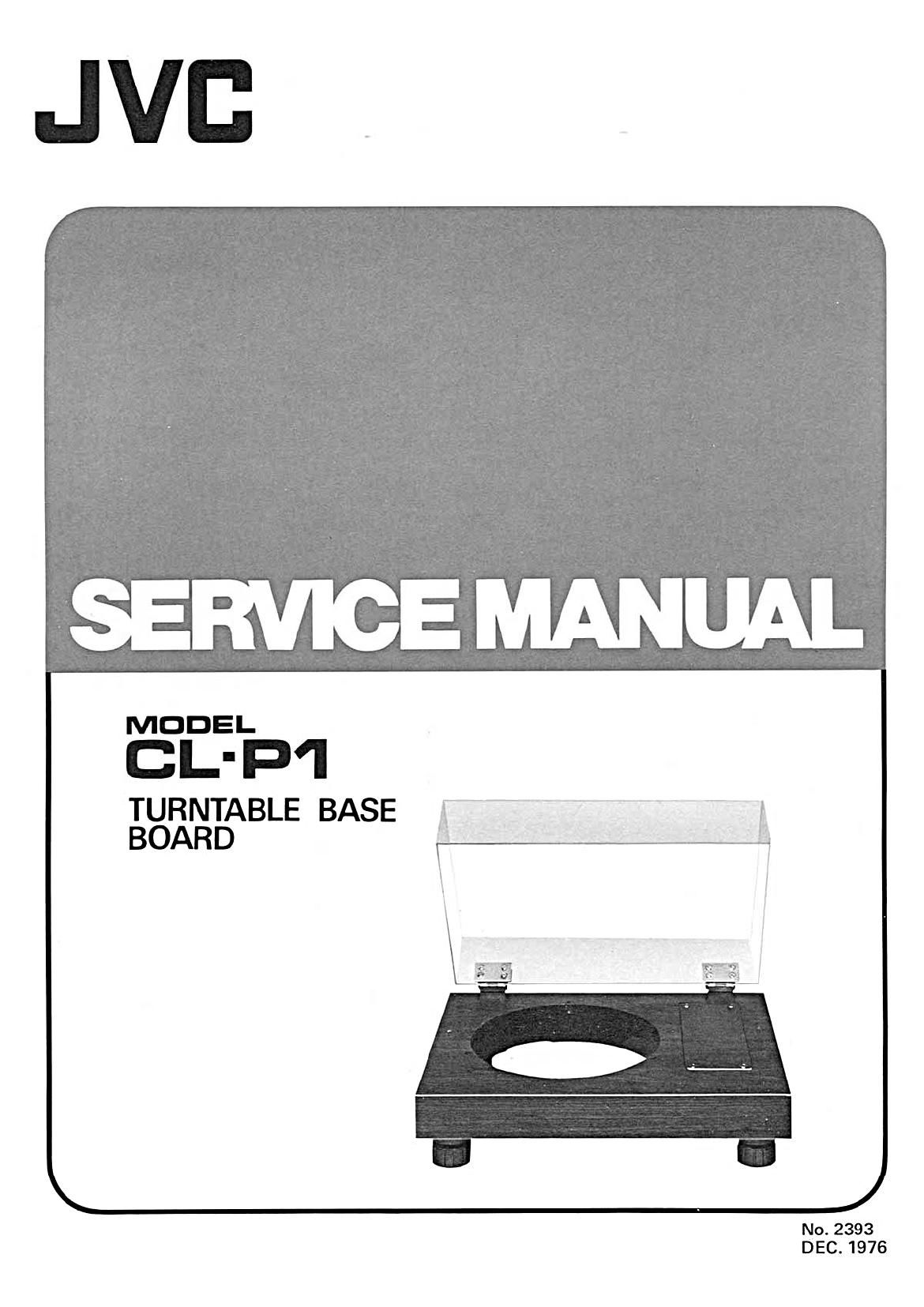

This is the 2 pages manual for Jvc CL P1 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
1 . Specifications
Structure : Special 3-layer inorganic material
Dust cover : Acryle resin
Hinge : Free-stop hinge
Legs : Double cushion isolater
Tonearm board
Usable tonearm length 230 - 245mm
:510(Wi x 410(0) x 202(Himm
:8.8kg
Dimensions
Weight
2. Exploded Views and Part
Mimi
M cowl uv
romances @ »/ .
ru- "90 "V t :-
5mm; Q9
TM WM ~
l3\'
:s:t:;°°@\fi§
msoi -003 F 1 fl
/
\
\
I6
mm Mt \(J
A 000093-119
-"i9 wmv
E021033010
- -{5) awn nu
/® E01559):
M usv
EDWIGDOOG
fr'@ Inn-n M
o_//,
VICTOR COMPANY OF JAPAN, LIMITED, TOKYO, JAPAN
: Special inorganic material board (95 x 260mm]
N umbers
Item No. Part Number Description
1 ED1559003 Cabinet ass'y
2 E10023~001 Dust cover ass'y
3 ED21033~010 P. board assy
4 ED35330-005 Free hinge ass'y
5 ED42992-001 Plate
6 ED42991-001 Lock plate
7 E61385-001 Mark
8 E60496-001 Foot cap
9 E60495-002 Foot assy
10 003093-119 Washer
11 BYSEOSORS S. bolt
12 SHSP3012RS Screw
13 SBSA3016N Tapping screw
14 SBSA3012M "
15 E050169-006 Insert nut
16 E050169-003 "
Accessories
Description Part Number Q'ty
Instruction Book E30580-561 A 1
Warranty Card See below. 1
Spanner E60477-001 1
Warranty Card
USA. BTZOOZOC
Australia BT20029
U.K. BT20013
European countries Not enclosed
PACEX and other countries BT20014
Printed in Japan
' 6012-V
