Jvc CA TD5 Service Manual

This is the 143 pages manual for Jvc CA TD5 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 143

Extracted text from Jvc CA TD5 Service Manual (Ocr-read)

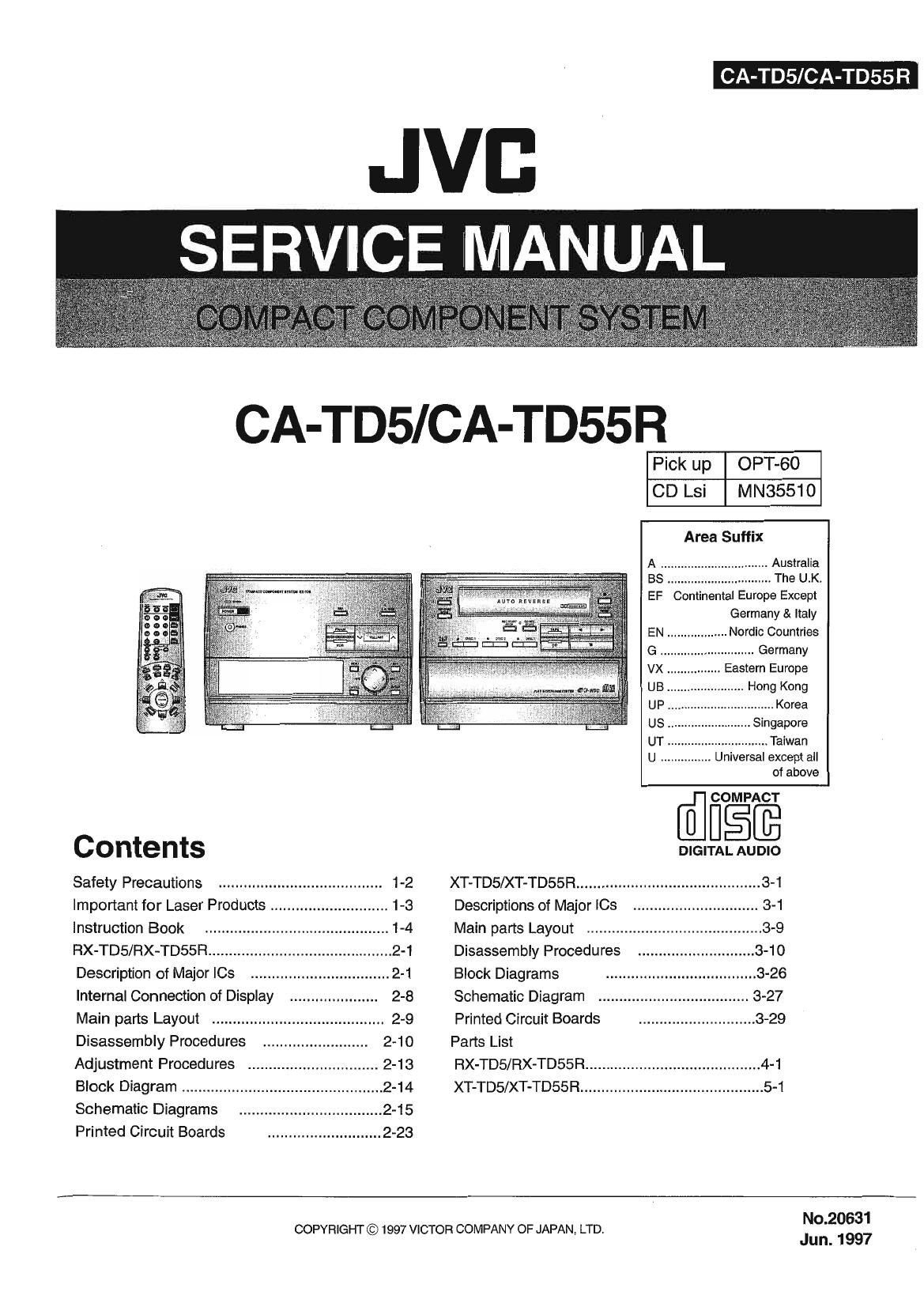

Page 1

CA-TD5/CA-TD55R

Pick up OPT-60
co Lsi MN35510

Area Suffix

A ................................ Australia
BS ............................... The U.K.

EF Continental Europe Except
Germany & Italy

EN .................. Nordic Countries
G ............................ Germany
VX ................ Eastern Europe
UB ....................... Hong Kong
UP ................................ Korea
US ......................... Singapore
UT ....................... Taiwan
U ............... Universal except all
of above
[lﬂ lit-EME-
CO "tents DIGITAL AUDIO
Safety Precautions ....................................... 1-2 XT-TD5/XT-TD55R ............................................ 3-1
Important for Laser Products ............................ 1-3 Descriptions of Major le .............................. 3-1
Instruction Book ............................................ 1-4 Main parts Layout .......................................... 3-9
RX-TD5/RX-TD55R ............................................ 2-1 Disassembly Procedures ............................ 3-10
Description of Major ICs ..... 2-1 Block Diagrams .........
Internal Connection of Display ..................... 2-8 Schematic Diagram .................................... 3-27
Main parts Layout ......................................... 2-9 Printed Circuit Boards ............................ 3-29
Disassembly Procedures ......................... 2-10 Parts List
Adjustment Procedures ............................... 2-13 RX-TD5/RX-TD55R .......................................... 4-1
Block Diagram ................................................ 2-14 XT-TD5/XT-TD55Fl ............................................ 5-1
Schematic Diagrams .................................. 2-15
Printed Circuit Boards ........................... 2-23

No.20631
