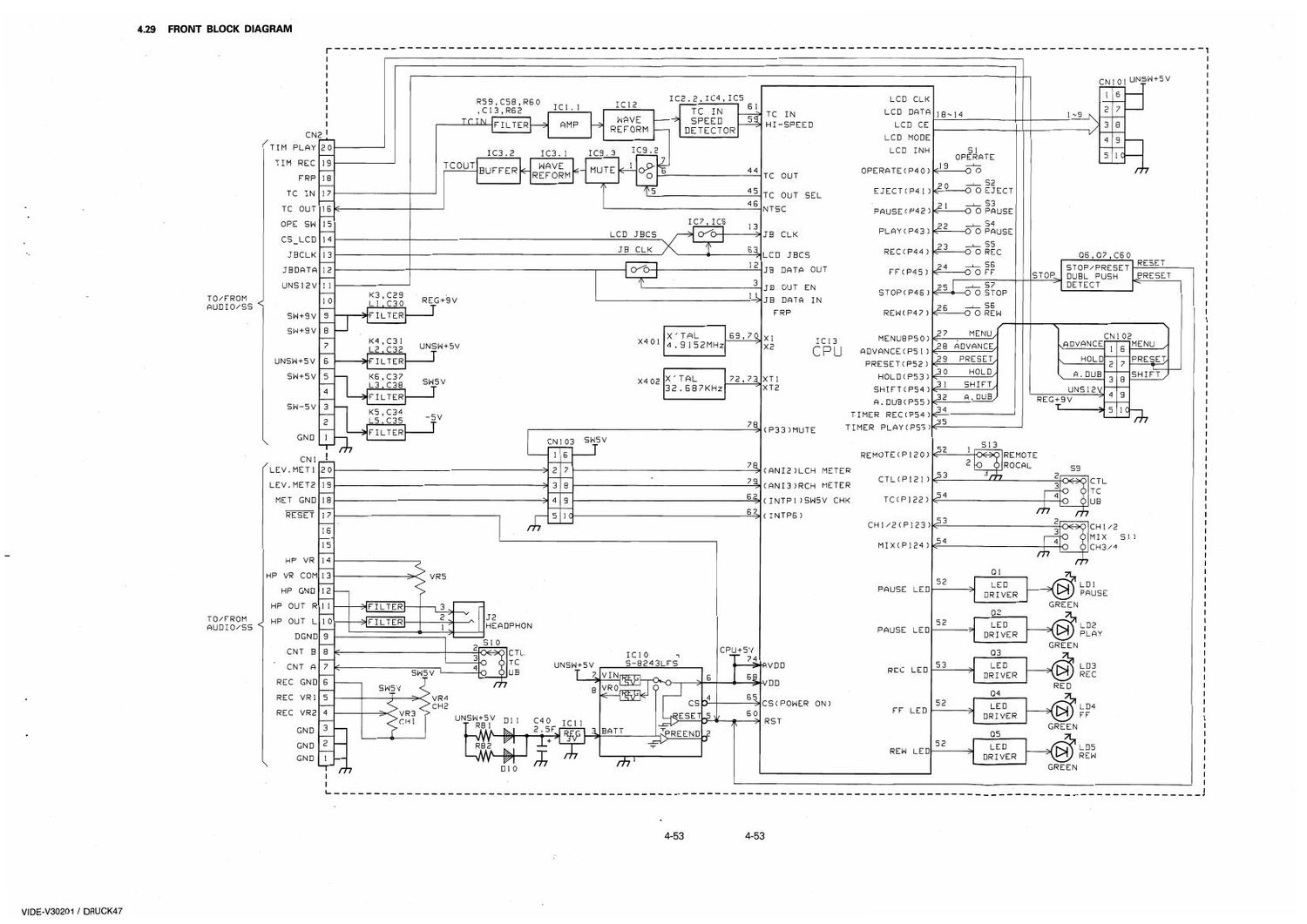

Page 35

I MECHANISM ASSEMBLY PARTS LIST MEI

mmmmmmmm
Sy'abol Part No. Part Name Description
1 PG830534B-01 MECHA ASSEMBLY
2 LY30358-001A DRUM BASE DECK
3 LY30343-001A WORM WHEEL 2
4 OAR0012-002 CAPSTAN MOTOR
5 LY30002-003A COMPRESSPRING
6 LY41390-001A ADJUST NUT
7 LY40224»001A COLLAR
8 LY10060-OO3A MAIN CAM
9 LY20102~001A SUB CAM
10 YQ44560~1«2 CONNECT GEAR 2
11 LY40241-001A TIMING BELT
12 LY40246-001A CLOCK GEARI1I
13 LY30002-009A COMPRESSPRING
14 LY40247-001A CLOCK GEARIZI
15 LY40248-001A PUSH PLATE
16 LY20109001B CONTROL PLATE
17 LY41243-001A TORSPRING
18 PRD31418-01-03 A.H.C.FRAME
19 LY40237~001C ENTGBASE ASSEMBLY
20 LY30340-OOSB MOTOR BKTIASSEMBLY
21 LY41190-002A ROTARY EN.ASSEMBLY
22 Y031873C G.RAIL(SI ASSEMBLY
23 LY20097-001B G.RAILIT) ASSEMBLY
24 LY30345-001A M.CATCHER ASSEMBLY
25 LY40223-001A ARM GEAR 1 ASSEMBLY
26 LY402354JO2B CENTARM ASSEMBLY
27 LY40279-001A ARM GEAR 2 ASSEMBLY
28 LY40228-001A CLOCK LEVER ASSEMBLY
29 LY30347-001A CHARGE ARM ASSEMBLY
30 LY40238-001A T.CTL.ARM ASSEMBLY
31 LY40233-001A B.CTL.ARM ASSEMBLY
32 LY40242-001 C BASE PLATE ASSEMBLY
33 YQ43931A R.D.PULLEY ASSEMBLY
34 LY40239-003A CENTGEAR ASSEMBLY
35 LYH30012-001A S.DECKASSEMBLY(G)
35A LY20108001 B LED PRISM
36 LY40257-001A SUB BRAKE ASSEMBLY
37 LY40259001A M.BRAKE(T) ASSEMBLY
38 LY40250-003A MBRAKEIS) ASSEMBLY
39 LY40255-001A REEL DISK ASSEMBLY
4o LY41245-00I B TENSION ARM SA.
41 LY41246-OOBB BARM PLATE SA.
42 LY30370-002A SWING ARM ASSEMBLY
43 LY30380-001D EXIT G.ARM ASSEMBLY
43A LY41250-001A CLEAN.ARM ASSEMBLY
44 LY30374-001B P.R.ARM ASSEMBLY
45 LY40280-003A REEL COVER ASSEMBLY
46 PRD45341 SPACER
A 50 YDV209BB DRUM ASSEMBLY
60 PG330576A CIHOUSING ASSEMBLY
70 LY10062-001 B MAIN DECK ASSEMBLY
$82 OYSDSPZOOSZ SCREW M2 x 5
836 YO43893 SCREW M1.4 x 2
SS7 YO43893-7 SCREW M14 x 2
$38 OYSDSPZOOZN SCREW M2 x 2
W3 YQ44246-3 SLIT WASHER
W5 YO44246 SLIT WASHER
W6 YO43933-2 WASHER

5-7
