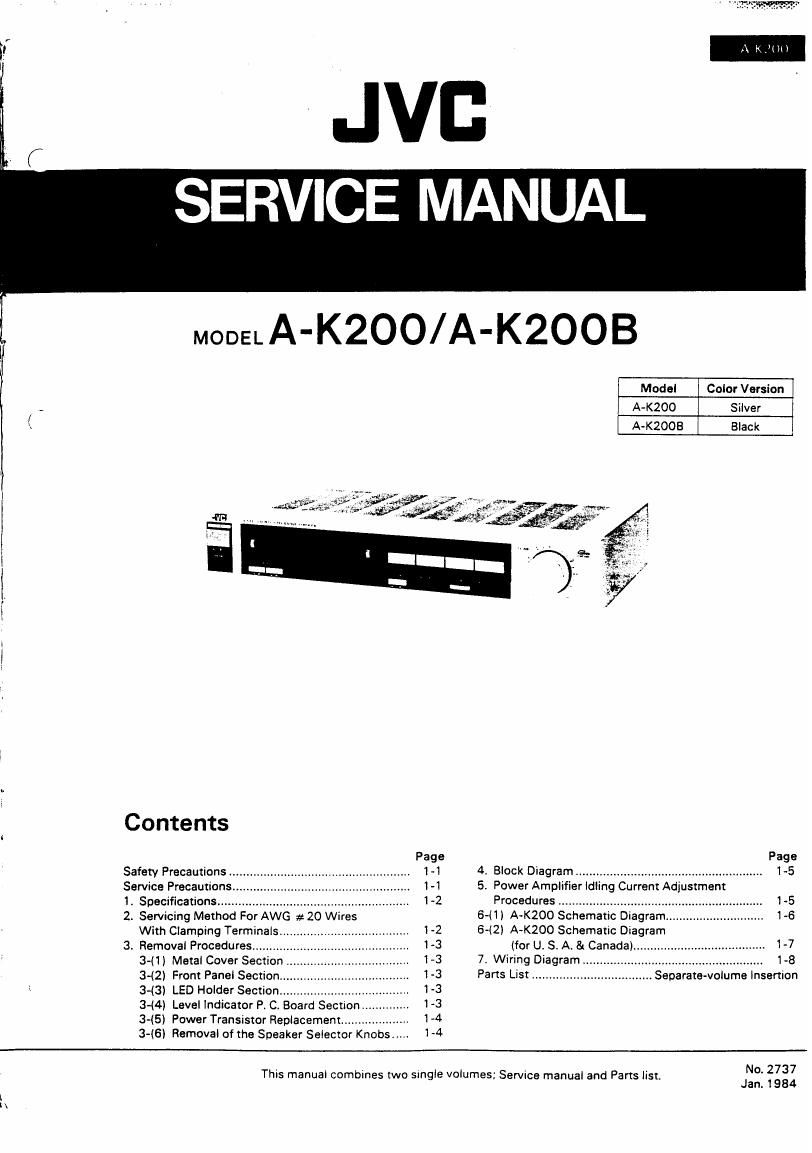

Jvc A K200 Service Manual

Page 1

i\ KJHH

MODELA-KZOO/A-KZOOB

Model Color Version
A-KZOO Silver
A-KZOOB 1 Black

Contents

Page
Safety Precautions ................................................... 1-1
Service Precautions 1-1
1. Specifications.... 1~2

2. Servicing Method For AWG 3: 20 Wires
With Clamping Terminals
3. Removal Procedures...
3-(1 l Metal Cover Section
3-(2) Front Panel Section.
3-(3) LED Holder Section ......................
3-(4) Level Indicator P. C. Board Section.
3-(5) Power Transistor Replacement ........
3-(Gl Removal of the Speaker Selector Knobs .

l

Abwwc'auuro

Page

4. Block Diagram 1<5
5. Power Amplifier Idling Current Adjustment

Procedures ............................ 15

6-(1) AK200 Schematic Diagram. 1-6

6-(2) A~K200 Schematic Diagram

(for U. S. A. & Canada)
7. Wiring Diagram.
Parts List ................

. 1 -8
Separatewolume insertion

This manual combines two single volumes; Service manual and Parts list

No. 2737
Jan. 1984

Page 2

Safety Precautions

1. The design of this product contains special hardware,

many circuits and components specially for safety pur-
poses.
For continued protection, no changes should be made
to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical
to those used in the original circuits. Sen/ice should be
performed by qualified personnel only.

2. Alterations of the design or circuitry of the product
should not be made. Any design alterations or addi<
tions will void the manufacturer's warranty and will
further relieve the manufacturer of responsibility for
personal injury or property damage resulting therefrom.

3, Many electrical and mechanical parts in the product
have special safety acteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage. wattage, etc. Replacement parts which
have these special safety characteristics are identified
in the parts list of Service manual. Electrical compo-
nents having such features are identified by shading on
the schematics and by ( A ) on the parts list in Service
manual. The use of a substitute replacement which
does not have the same safety characteristics as the re-
commended replacement part shown in the parts list in
Service manual may create shock, fire, or other hazards.

4. The leads in the products are routed and dressed with
ties, clamps, tubings, barriers and/or the like to be sep-
arated from live parts, high temperature parts, moving
parts and/or sharp edges for the prevention of electric
shock and fire hazard.

When service is required, the original lead routing and
dress should be observed, and they should be con-
firmed to be returned to normal, after reassembling.

Service Precautions

5. Leakage current check

(Safety for electrical shock hazard)

After reassembling the product, always perform an iso-

lation check on the exposed metal parts of the Products

(antenna terminals, knobs, metal cabinet, screw heads.

headphone jack, control shafts, etc.) to be sure the pro-

duct is safe to operate without danger of electrical
shock.

Do not use a line isolation transformer during this

check.

0 Plug the AC line cord directly into the AC outlet. Us-
ing a Leakage Current Tester", measure theleekage
current from each exposed metal part of the cabinet,
particularly any exposed metal part having a return
path to the chassis, to a known good earth ground.
Any leakage current must not exceed 0.5 mA AC
(r.m.s.).

0 Alternate check method.

Plug the AC line cord directly into the AC outlet. Use
an AC voltmeter having 1,000 ohms per volt or more
sensitivity in the following manner. Connect a
1500!] low resistor paralleled by a 0.15 uF AC-
type capacitor between an exposed metal part and a
known good earth ground.

Measure the AC voltage across the resistor with the
AC voltmeter.

Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a re-
turn path to the chassis, and measure the AC voltage
across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage
measured must not exceed 0.75V AC (r.m.s.).

This corresponds to 0.5 mA AC (r.m.s.).

AC VOLTM ETER
E (HAViNG moon/V,
on MORE SENSITIVITY)
O 0
0.15m: AC-TYF'E
- --I
PLACE THIS PROBE
Mr > ON EACH EXPOSED
150052 10W METAL PART
GOOD EARTH GROUND
Fig. 1

1. Before repairing, be sure to discharge electric capacitors across a resistor of about 100 ohms/1 watt.
2. When replacing the power transformer, pay attention to the following points.
(1) When removing the power transformer retaining screws. take care not to damage the pans located around

the transformer (as space is limited).

(2) when removing the fuse P. C. Board. do not apply the soldering iron to the P. C. Board for too long a time (to

prevent pattern peeling off).

(3) Before removing the source selector knob, remove the metal cover. Set the source selector to off position and
press it from the inside to remove it (to prevent damage).

i-l (No. 2737)

\
