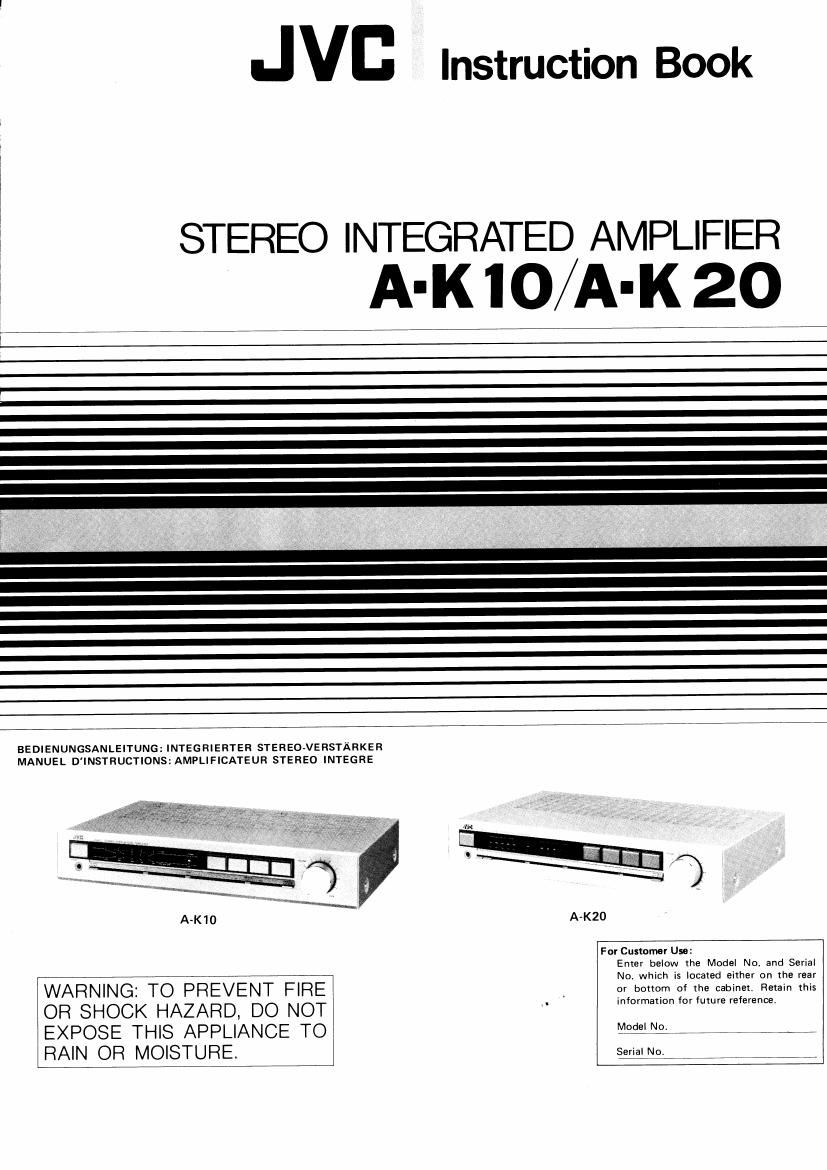

JVD Instruction Book

STEREO INTEGRATED AMPLIFIER
* A-K 10/ A-K 20

BEDIENUNGSANLEITUNG: INTEGRIERTER STEREO-VERSTARKER
MANUEL D'INSTRUCTIONS:AMPLIFICATEUR STEREO INTEGFIE

For Customer Use:
Enter below the Model No. and Serial
No. which is located either on the rear

WARNING. TO PREVENT FIREI . or bottom of the cabinet. Retain this
OR SHOCK HAZARD, DO NOT I. information forfuture reference.

EXPOSE THIS APPLIANCE TO MOEHL ,7 EA
RAIN OR MOISTURE. Selim); , ,7

Page 2

IMPORTANT (In the United Kingdom)
Mains Supply (AC 240 Vw, 50 Hz only)

IMPORTANT

Do not make any connection to the Larger Terminal coded E
or Green, The wires in the mains lead are coloured in accord-
ance with following code:

C:

If these colours do not correspond with the terminal identifi»
cations of your plug, connect as follows:

Blue wire to terminal coded N (Neutral) or coloured Black,
Brown wire to.termina| coded L (Live) or coloured Red.

If in doubt - consult a competent electrician.

Note

We recommend that you should disconnect the mains plug
from the supply socket when not in use.

Blue to N (Neutral) or Black
Brown to L (Live) or Red

WARNING

Dangerous voltage inside

CAUTION

To prevent electric shock, do not remove screws, covers or
cabinet.

No user»serviceable parts inside. Refer servicing to qualified
service personnel.

WARNUNG

Gefahrliche Spannung im Innern

HINWEIS

Zur Vermeidung von elektrischen Schla'gen sollten Schrauben,
Abdeckplatten und Geh'ause nicht entfernt werden.

Das Gerat enthalt keine von Laien reparierbaren Einzelteile.
Reparaturen nur von einem qualifizierten Kundendienst
ausfu'hren lassen. '

AVE RTISSEMENT

Tension dangereuse a I'intérieur

ATTENTION

Afin de prévenir un choc électrique, ne pas enlever les vis,
ni les couvercles.

II no se trouve a |intérieur aucune piece pouvant étre réparée
par l'usager. Sadresser a un réparateur competent.

_1_

Thank you for purchasing this JVC product.

Before you begin operating this unit, please read the instruc-
tions carefully to be sure you get the best possible perform-
ance.

If you have any question, consult your JVC dealer.

CONTENTS

Important .............................. 2
Connection diagram 3
Front panel ........ 5
Operation
Listening to radio broadcasts ................. 6
Listening to records ....................... 7
Listening to tapes ......................... 7
Using stereo headphones .................... 7
Recording tapes .......................... 7
Troubleshooting ............................ 9
Specifications ............................. 10

Vielen Dank fiir den Kauf dieses JVC-Produkts.

Bitte lesen Sie diese Bedienungsanleitung sorgfa'ltig, bevor Sie
dieses Ger'a't in Betrieb nehmen, um die beste Leistung zu
erhalten.

Falls Sie Fragen haben, wenden Sie sich bitte an lhren JVC»
Fachha'ndler.

INHALT

Wichtig .................................. 2
Anschlulldiagramm .......................... 3
Frontplatte ............................... 5
Bedienung
Rundfunkhijren .......................... 6
Schallplattenhoren ........................ 8
Tonbandhoren ........................... 8
Verwendung von Stereo-Kopfhorern 8
Tonbandaufnahme . . . . 8
Fehlersuche ....... 9
Technische Daten . . 10

Tous nos compliments pour vous étre procuré cet appareil de
JVC.

Pour que vous puissiez obtenir les meilleures performences
possibles, nous vous recommandons de lire attentivement Ia
présente notice d'emploi avant de commencer a utiliser votre
nouvel appareil.

En cas de question, consultez votre revendeur JVC.

TABLE DES MATIERES

Important ................................ 2
Schema de raccordement ...................... 3
Facade .................................. 5
Opération
Ecoute des émissions radiodiffusées ............. 6
Ecoute de disques ......................... 8
Ecoute de bandes ......................... 8
Emploi de casque d'écoute stéréo .............. 8
Enregistrement de bandes .................... 8
Detection de pannes ............ ' ............. 9

Caracteristiques techniques ..................... 10

Page 6

FRONT PANEL
FRONTPLATTE o o
FACADE

0 POWER switch
ON: Press to turn the power on. The POWER indicator
9 will be illuminated. During the first 3 or 4
seconds after the POWER switch is turned on, no
sound will be heard until you hear the click of
the relay operation. This is not due to any defect
In the unit. The built-in power protection circuit
operates to mute the switching noise for speaker
protection.
0 Level indicatorlA-K1O only)
This LED indicator shows the output power of both the
left and right channels.
9 POWER indicator
This LED lights when the POWER switch is set to ON.
0 TAPE switch
Press this to listen to tapes played on units connected to
the TAPE terminals.
0 VIDEO/AUX switch
Press to listen to sources connected to the VIDEO/AUX
terminals.
6 TUNER switch
Press to listen to radio broadcasts from the tuner connectr
ed to the TUNER terminals.
0 PHONO switch
Press to listen to records.
0 VOLUME control
Turn clockwise for louder sound.
0 Headphone jack lPHONES)

Plug stereo headphones into this jack for private listening.

(9 SPEAKER switch
Use to switch on or off the speakers connected to the
SPEAKER terminals.

01) BASS control
Slide to the right to boost bass response, to the left to
decrease bass response,

it) TREBLE control
Slide to the right to boost treble response, to the left to
decrease treble response.

® BALANCE control
Slide to balance the left and right speaker volumes When
it is at the extreme left, only the left channel Is heard,
and vice versa.

in LOUDNESS switch

A-K20

At low listening levels, low and high frequencies are

apparently attenuated because of the ears lower sen-

sitivitv. Press this switch at low listening levels to comr

pensate for this,

Left channel power indicator (A-KZO only)

These LEDs indicate the output power in watts. The

values in watts are indicated for left channel, when one

pair of speakers having an impedance of exactly 8 ohms is

being driven.

Right channel power indicator (A-KZO only)

These LED's indicate the output power in watts. The

values in watts are indicated for right channel.

SPEAKERS selector (A»K20 only)

1: Set to out (1 ) to listen to the speakers connected
to the SYSTEMrl terminals.

2: Press "in" (A) to listen to the speakers connected to
the SYSTEMVZ terminals.

Two pairs of speaker systems cannot be used at the same

time.
