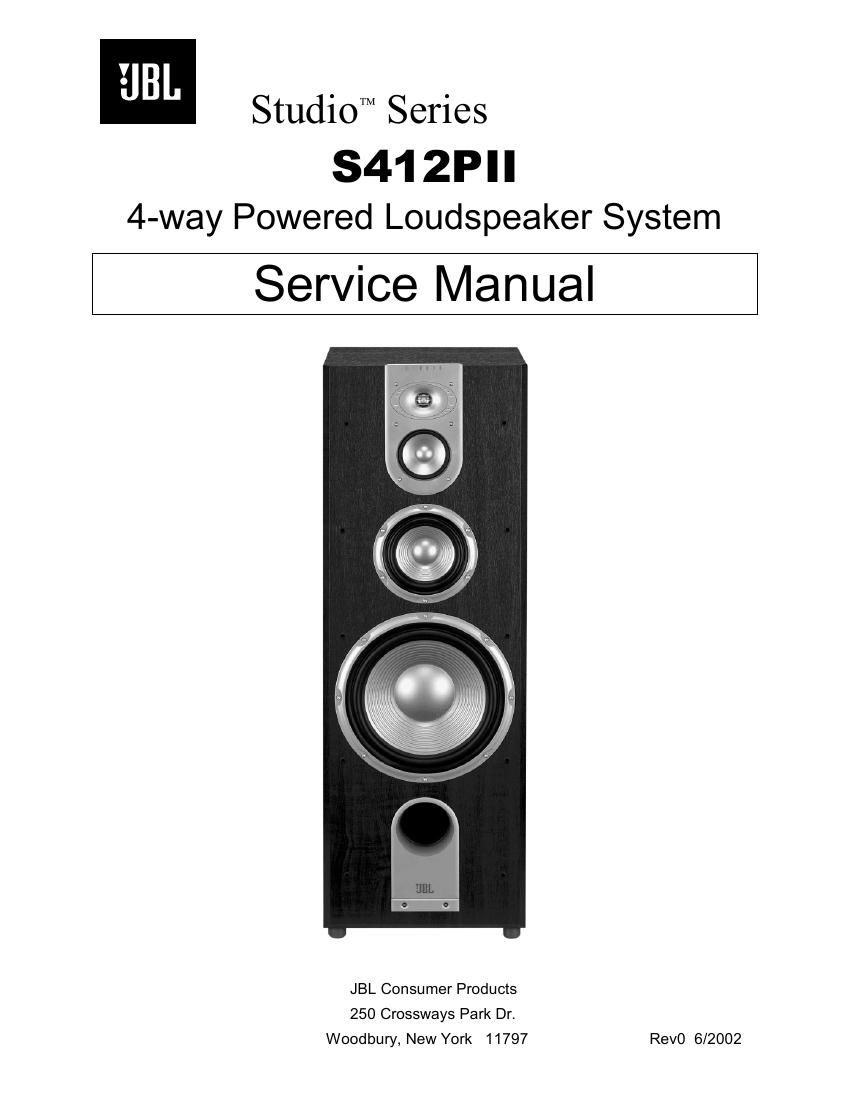

Page 1
- CONTENTS -
BASIC SPECIFICATIONS -¦-¦-¦-¦.-¦.-¦-¦..-¦-¦-¦-¦..1
DETAILED SPECIFICATIONS -¦-¦-¦..-¦-¦..-¦-¦-¦-¦..2
CONNECTIONS-¦-¦-¦-¦-¦.-¦-¦-¦-¦-¦-¦-¦-¦....-¦..-¦4
CONTROLS -¦-¦..-¦-¦-¦-¦-¦-¦.-¦..-¦-¦....-¦-¦.-¦.-¦..6
BASIC TROUBLESHOOTING..-¦.-¦-¦-¦.-¦-¦-¦-¦-¦-¦7
AMPLIFIER ACCESS-¦.-¦-¦-¦-¦-¦-¦.-¦.-¦-¦-¦-¦-¦....8
S412PII AMPLIFIER BLOCK DIAGRAM.-¦.-¦-¦-¦..-¦..9
S412PII W IRING/PASSIVE SCHEMATIC-¦.-¦-¦-¦-¦.10
S412PII MECHANICAL/PACKING PARTS LIST -¦.-¦.11
S412PII EXPLODED VIEW..-¦-¦-¦-¦-¦-¦-¦.-¦. -¦-¦.12
AMPLIFIER EXPLODED VIEW ..-¦-¦-¦-¦-¦.-¦-¦-¦-¦.13
IC DIAGRAMS-¦-¦-¦-¦-¦-¦..-¦-¦-¦-¦-¦-¦..-¦-¦-¦-¦.14
S412PII ELECTRICAL PARTS LIST ..-¦-¦-¦.-¦-¦.-¦..15
P.C.B. DRAW INGS-¦.-¦-¦-¦..-¦-¦-¦-¦-¦-¦...-¦.-¦-¦.18
S412PII SCHEMATICS-¦-¦-¦..-¦-¦-¦-¦-¦..-¦-¦-¦.-¦.20
S412PII PACKAGING-¦-¦-¦..-¦-¦-¦-¦-¦..-¦-¦..-¦.-¦.23
JBL S412PII SPECIFICATIONS
Max Recommended Amplifier Power: 250 W atts*
Subwoofer Amplifier Power: 200 W atts
Nominal Impedance 8 ohms
Sensitivity 92dB
Frequency Response 32Hz -“ 20kHz (±3dB)
Crossover Frequencies 250Hz, 700Hz, 3500Hz
High-Frequency Driver: 1" Pure Titanium Dome, shielded
Midrange Frequency Driver: 4" PolyPlas-„¢ Rubber surround, shielded
Midbass Frequency Driver: 6" PolyPlas-„¢ Rubber surround, shielded
Low Frequency Driver: 12" PolyPlas-„¢ Rubber surround, shielded
Dimensions (H x W x D): 44 x 14 ¾ x 16 1/16 (17 with grille)
1118 x 375 x 408mm (432mm with grille)
W eight (each): 100lbs/45.5kg
* The maximum recommended amplifier power rating will ensure proper system headroom to allow for
occasional peaks. W e do not recommend sustained operation at these maximum power lev els.
Page 2
JBL S412PII -120VAC 150W Powered Sub/ Plate Amp
LINE VOLTAGE Yes/N o Hi/Lo Lin e Nom. Uni t Note s US 120vac/60Hz Yes 108-132 120 Vrms Normal Operation
EU 230vac/50-60Hz Yes 207-264 230 Vrms Normal operation, MOMS required
Asia 100vac/50Hz No N/A 100 Vrms Normal Operation
Parameter Specification Unit QA Test
LimitsConditions Notes
Am
p Sectio n Type (Class AB, D, other) G n/a n/a
Load Impedance (speaker) 4 Ohms n/a Nominal Z-curve required
Rated Output Power 150 Watts 130 1 input driven 130 W nominal due to limiter non-linearity at
high power
THD @ Rated Power 0.1 % 1 22k filter 130 W
THD @ 1 Watt 0.3 % 0.5 22k filter
DC Offset 10 mV-DC 20 @ Speaker Outputs
Damping factor >150 DF 100 Measured at amplifier board Measured at the speaker connector. 130 Watts
@ THD < 0.08 % @ 50 Hz
>75 50 Measured at speaker cable
In
put Sensitivit y Input Frequency 30 Hz 30 Nominal Freq.
LFE input 1.05 Vrms ±2dB To 140 Watts
Speaker/Hi Level Input 23.66 Vrms ±2dB To 140 Watts
Si
gnal to Nois e SNR-A-Weighted 100 dBA 90 relative to rated power A-Weighting filter
SNR-unweighted 70 dBr 70 relative to rated power 22k filter
SNR rel. 1W-unweighted 65 dBr 60 relative to 1W Output 22k filter
Residual Noise Floor 1 mVrms 5 Volume @max, using RMS reading
DMM/VOM (or A/P)
Residual Noise Floor 1.5 mVrms(max) 4 Volume @max, w/ A/P Swept
Bandpass Measurement (Line freq.
+ harmonics)
In
put Im pedanc eLine Input 20k ohms n/a Nominal
Speaker/Hi Level Input 10k ohms n/a Nominal
Filter
s Speaker in LP 2nd order fixed Fixed
Subsonic filter (HPF)
LFE Low pass 2nd order Fixed LFE input driven only
Limiter
THD at Max. Output Power n/a n/a functional Maximum Output Power Maximum THD as a result of limiting.
Features--
Auto - On selection switch YES -- functional Refer to ATO section
LED On-Off switch YES -- functional Dual LED indicator
Volume pot Taper (lin/log) LOG -- functional A Taper
In
put Confi guratio n Line In LFE YES -- functional Single RCA jack Spkr/Hi Level In YES -- functional
Si
gnal Sensin g (ATO ) Auto-Turn-On (yes/no) YES functional Auto - on selection switch in Auto
ATO Input test frequency 30 Hz functional "
ATO Level LFE Input 4 mV functional "
ATO Level Speaker in 100 mV functional "
ATO Turn-on time 5 ms functional Amp connected and AC on, then
input signal applied
Auto Mute/ Turn-OFF Time 15 minutes 17 T before muting, after signal is
removedMaximum
Power on Dela
y tim e 3 sec. 4 AC Power Applied
Transients/Po
ps ATO Transient 5 mV-peak n/a @ Speaker Outputs
Turn-on Transient 50 mV-peak 2v-pp @ Speaker Outputs AC Line cycled from OFF to ON
Turn-off Transient 50 mV-peak 2v-pp @ Speaker Outputs AC Line cycled from ON to OFF
